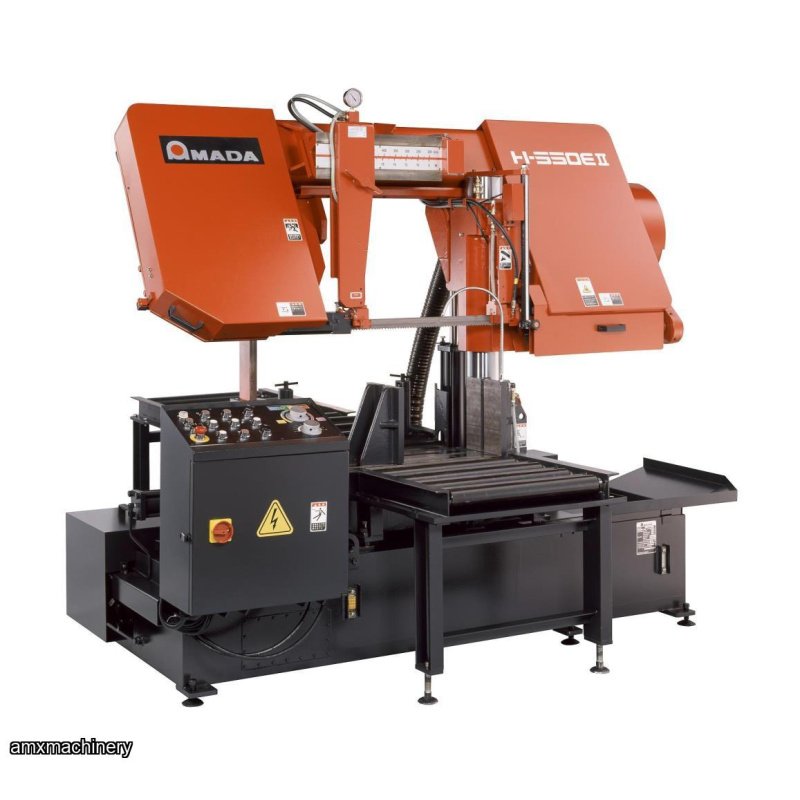

2AA-H550EII – SIERRA CINTA – CAPACIDAD 21.6”

PARTE: 2AA-H550EII – SIERRA CINTA – CAPACIDAD 21.6” – AMADA

NUEVA CON GARANTIA

Machine Specifications

Cutting Capacity Round (Diameter) 7.87"-18.90"

Rectangle (W x H) 21.65" x 18.90"

Work Load Capacity 4,409 lbs.

Saw Blade Dimensions (L x T x W) 16' x 0.050" x 1.5"

Blade Speed Inverter Blade Speed Control

Saw Blade Motor 7.5 HP

Hydraulic Pump Motor 2 HP

Cutting Fluid Pump Motor 1/2 HP

Voltage Required*

AC220V±10%, 3 PH, 60 Hz

*All Other Voltages Require a Transformer

Power Requirement 10 kVA

Machine Dimensions

Head Up Position 107.2" x 72.8" x 80.9" (W x L x H)

Head Down Position 107.2" x 72.8" x 68.7" (W x L x H)

Table Height 26.7"

Machine Weight 4,629.8 lbs.

Machine Standard Features

Light Beam Marking

Wheel Cover Limit Switch

Cutting Depth Indicator

Motion Detector and Double Split Vise

H550EII    Model - H550EII with Machine Standard Features

Blade        SVGLB 1.5" x 0.050" x 3/4 TPI x 16´ (start-up blade)

OPTIONAL ITEMS

6' Dead Roller Table Free Standing

10´ Dead Roller Table free standing

Extended warranty - additional year in parts
