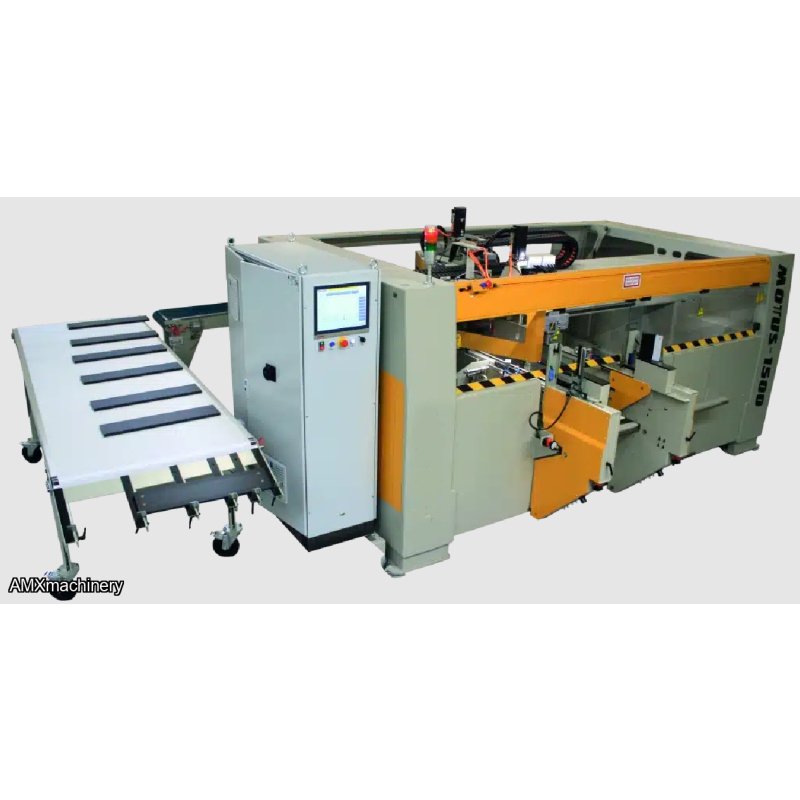

3 STATION CNC
Throughfeed CNC milling and drilling machine with 3 work stations. A very flexible machine.
Description:
• Hopper with integrated separation for items with delicate or painted surfaces
• Careful belt transport of items through the machine
Extra
• Waste Conveyer
• Return conveyor with integrated brush cleaning unit
Workstation 1:
Vertical and horizontal independent spindle drilling heads (customer specific)
Workstation 2:
Horizontal drilling groups left and right
Workstation 3:
Vertical and horizontal independent spindle drilling heads, groove blade and milling units (customer specific)
- Length:
250 – 2200 mm - Height:
10 – 40 mm - Width:
25 – 300 mm
