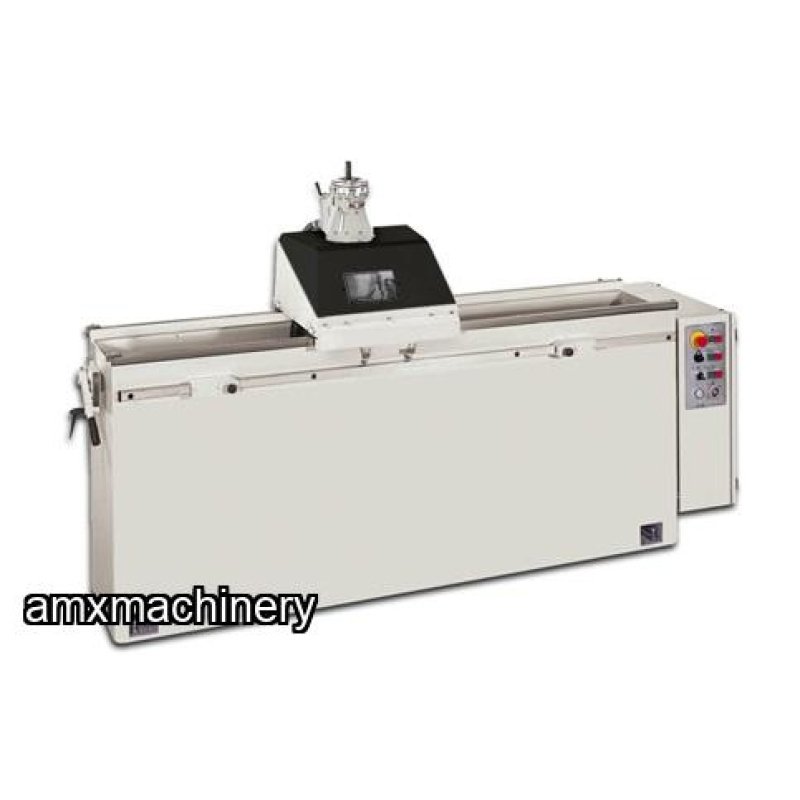

AFILADORA DE CUCHILLAS RECTAS – INDUSTRIAL - 1000 MM

PARTE: 4MV-PX1000 – AFILADORA DE CUCHILLAS RECTAS – INDUSTRIAL - 1000 MM

Nueva con garantía

Technical features:

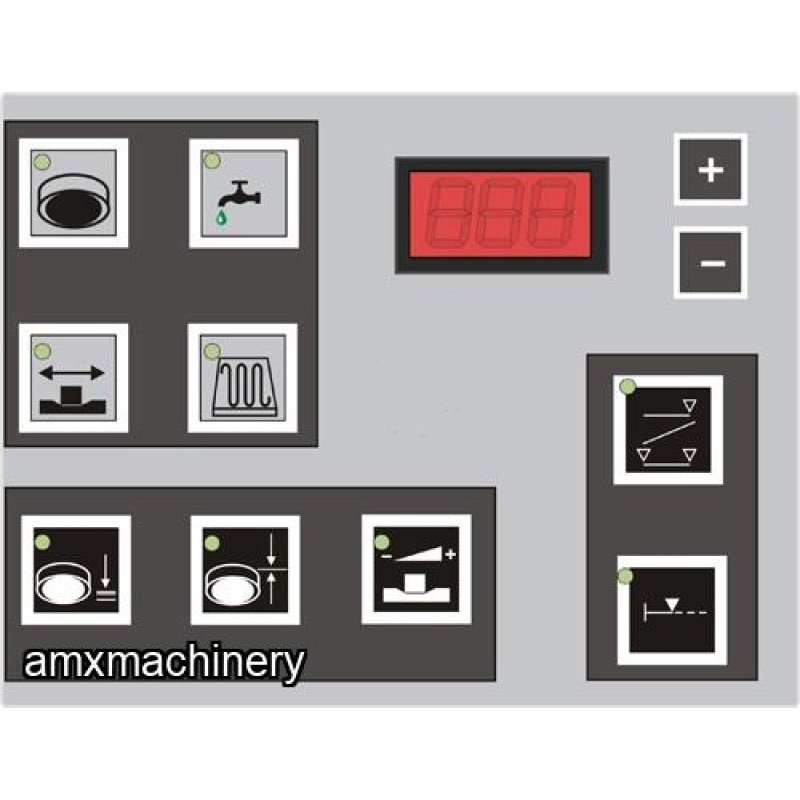

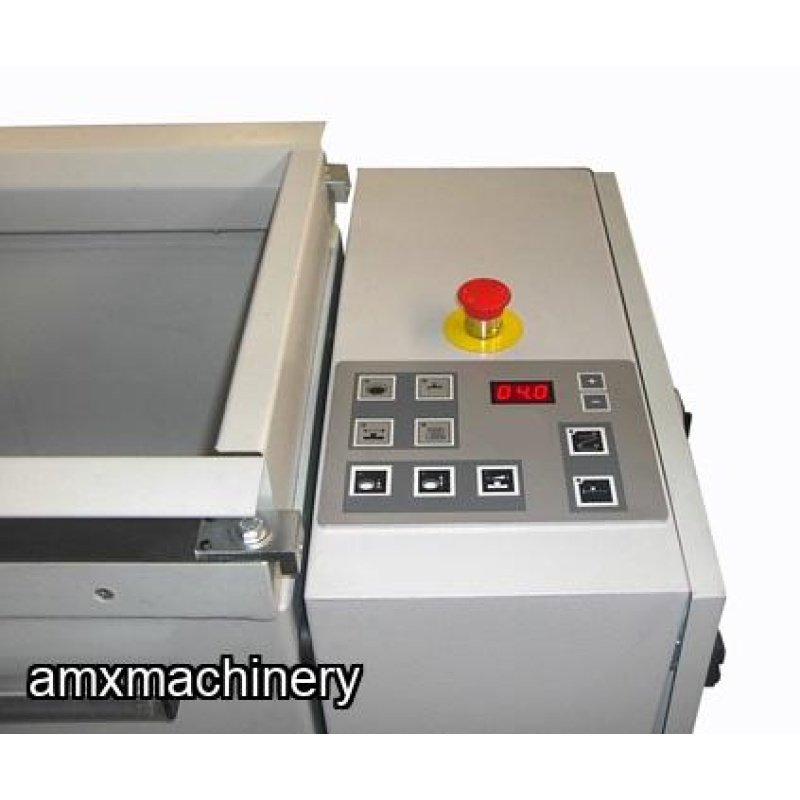

Mini-PLC controlling automatic downfeed, spark-out and downfeed right or left and right

Heavy duty grinding motor 2,2 k W (3 HP) - 2800 RPM;

Tilting head to grind hollow surfaces;

Carriage run guides covered with replaceable hardened steel guides;

90° rotating knife-mounting chuck;

Supplied with stepped blocks to grind 4 overlapping planer blades simultaneously;

Variable carriage speed 2-18 m/min;

External tank with coolant pump;

Switch for carriage run adjustment.

Optional:

Magnetic chuck (standard on PX 1350);

Grinding motor 3,7 kW (5 HP);

Segment holder Ø 150 mm;

Carriage guides covered with protective rubber bellows;

Edge reference bar;

Magnetic chuck for hard metal inserts;

Clamping device for Tersa, Centrofix, Terminus, Kanefusa, Sinus, Weinig knives;

Magnetic coolant cleaner with rotating discs.
