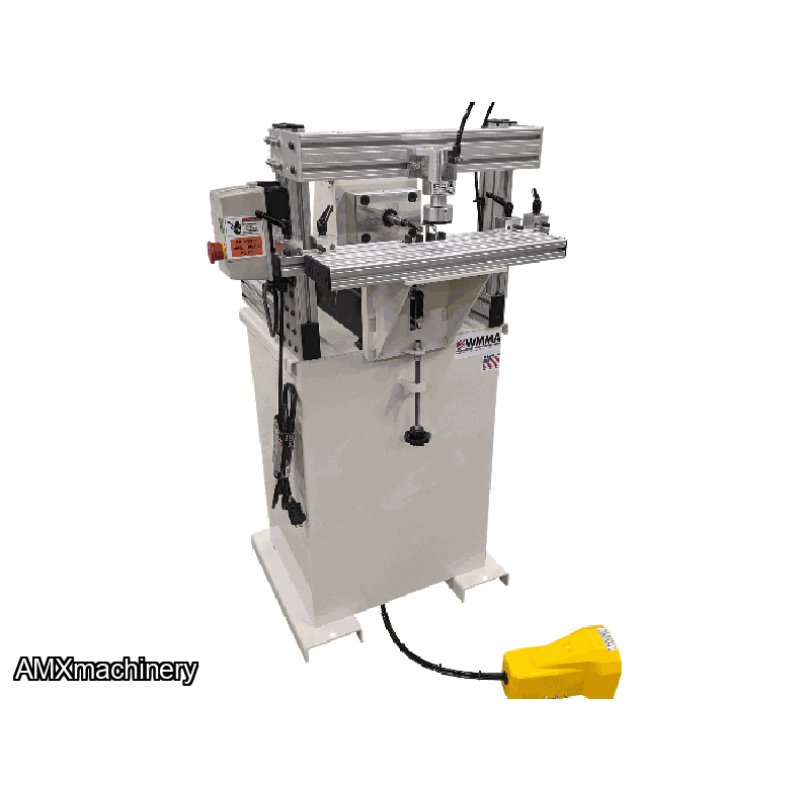

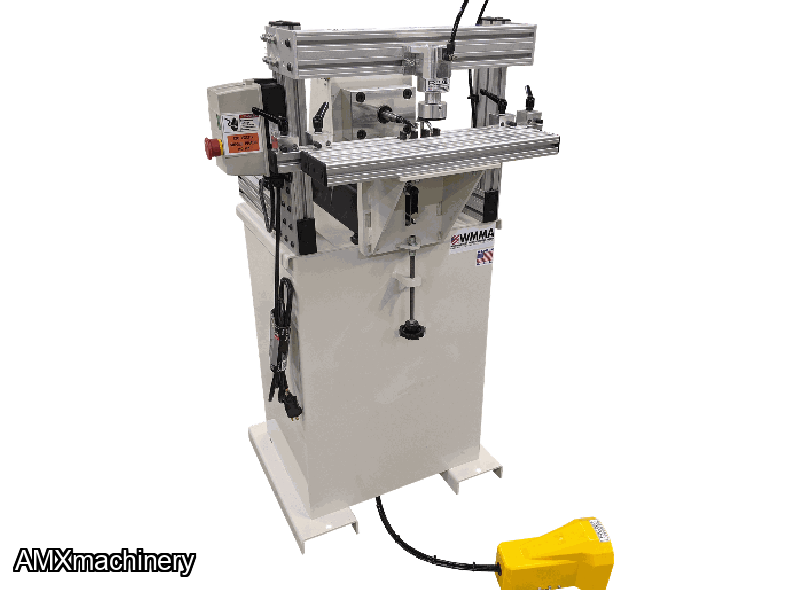

BARRENADORA HORIZONTAL - 3 HUSILLOS

^Description:

^{Designed for a dedicated and accurate boring center with single, double or triple spindle boring capability. Stile and rail boring set-up features help eliminate costly mistakes, rejected parts and increase production efficiency. The workpiece is held firmly against the table by a pneumatic clamp, and there is full adjustability of the index stops, bed height, and depth of cut.}

^{Standard Features:}

• ^{Triple Spindle Gear Driven Drill Head}
• ^{1" Spindle Spacing}
• ^{7/16-14 Female Threaded Collets (2) L/H (1) R/H}
• ^{0.75 HP Spindle Drive Motor, TEFC}
• ^{0-2" Adjustable Boring Depth}
• ^{(4) Material Positioning Stops}
• ^{2" Bore Clamping Cylinder}

• ^{Foot Actuated Boring Cycle}
• ^{3450 RPM Spindle Speed}
• ^{6" X 20" Table Area}
• ^{Tooling Not Included}

^{Technical Data and Specifications:}

• ^{Electrical: 110/120V, 60Hz, 10A}
• ^{Air: 2 CFM at 80 – 100 PSI}
• ^{Work Height: 40"}
• ^{Footprint: 24" x 24"}
