CANTEADORA AUTOMATICA

AMXmachinery1

Contact Seller

Description

CANTEADORA AUTOMATICA PARTE: 2CK-MX340M

Is an entry level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry can output high quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Compact design makes it the ideal edgebanding solution for small workshops
Precise adjustments for optimum edge quality

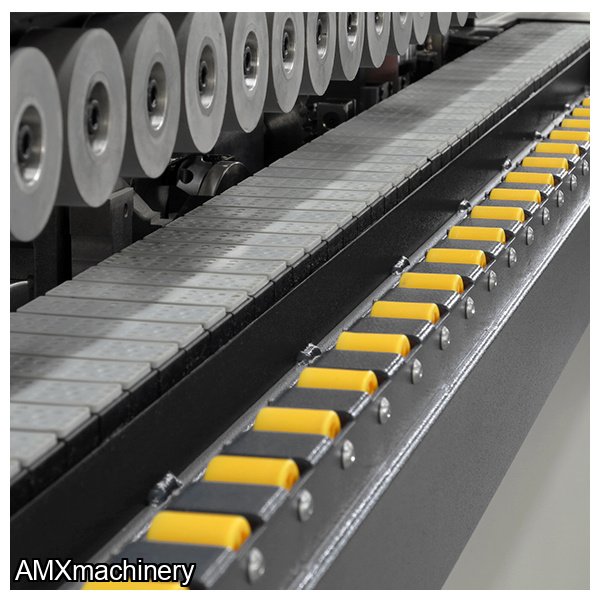

Chain feed system ensures consistent feeding of material for consistent results
Available in 230V 1 or 3 phase

PLC control system with LED display and keypad
Workpiece is fed by chain
Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
Automatic edge feeding with a thickness capacity of 0.4-3 mm;

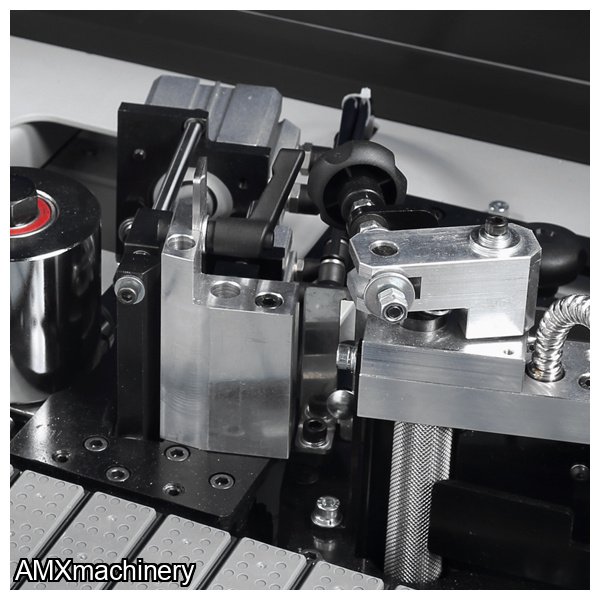

Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

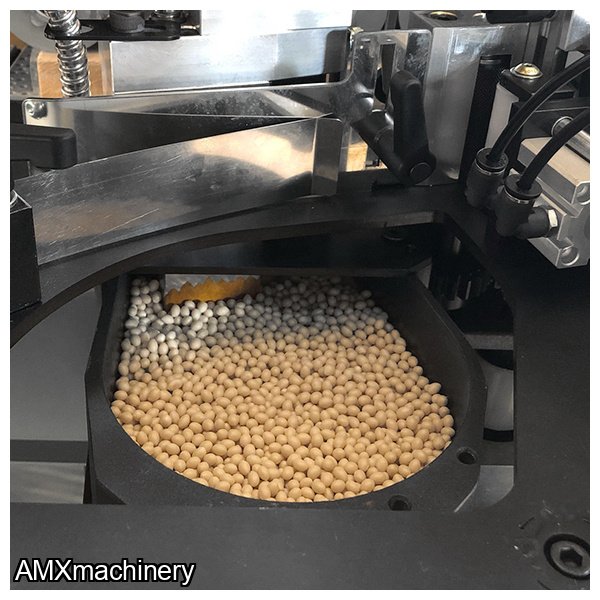

1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot

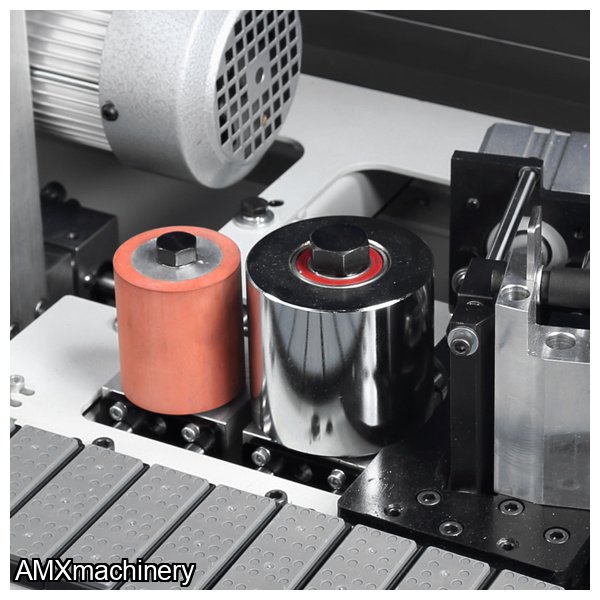

Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
Heavy duty pressure beam with extendable work-piece support
Heated infeed fence for pre-heating the panel for optimum glue penetration
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

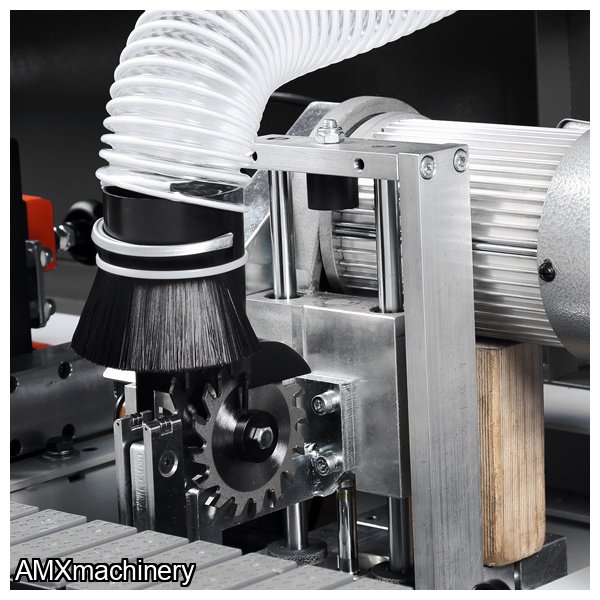

END TRIM
8800 RPM dual saw blade (80mm / 3.15″) end trimming unit

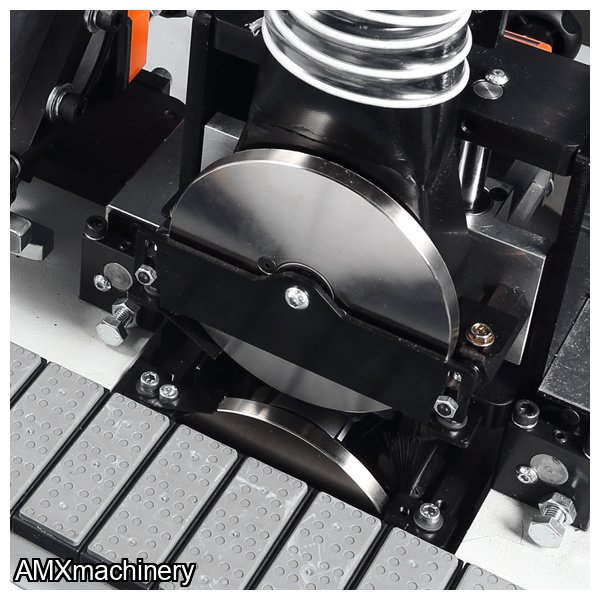

TOP & BOTTOM TRIM
10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
RADIUS SCRAPING
Radius scraper with 2mm radius knives can be easily excluded when not required
BUFFING
2800 RPM top & bottom buffing units to polish the machined edge

	INCH	METRIC
Feeding speed	23 FPM	7 m/min.
Panel thickness	0.472~1.77″	12~45 mm
Edge thickness	0.0158″~0.118″	0.4 ~ 3 mm
Minimum panel width	3 ½”	90 mm
Minimum panel length	3 ½”	90 mm
Working table height	33.5″	850 mm
Dust collection outlet dia.	2 x 4″	2 x 100 mm
Total connected power	5 HP	3.8 KW
Air	7.06 CFM / 85 – 100 PSI	200 litres/min / 6 – 7 kg/cm2
Max. machine dimensions (LxWXH)	115″ x 47″ x 48″	2921 x 1194 x 1220mm
Machine weight	968 lbs.	440 kgs.
Shipping dimensions (LxWxH)	89″ x 29″ x 50″	2261 x 737 x 1270mm
Shipping weight	1115 lbs.	507 kgs.
