Identificador: 140
Abierta
Descripción

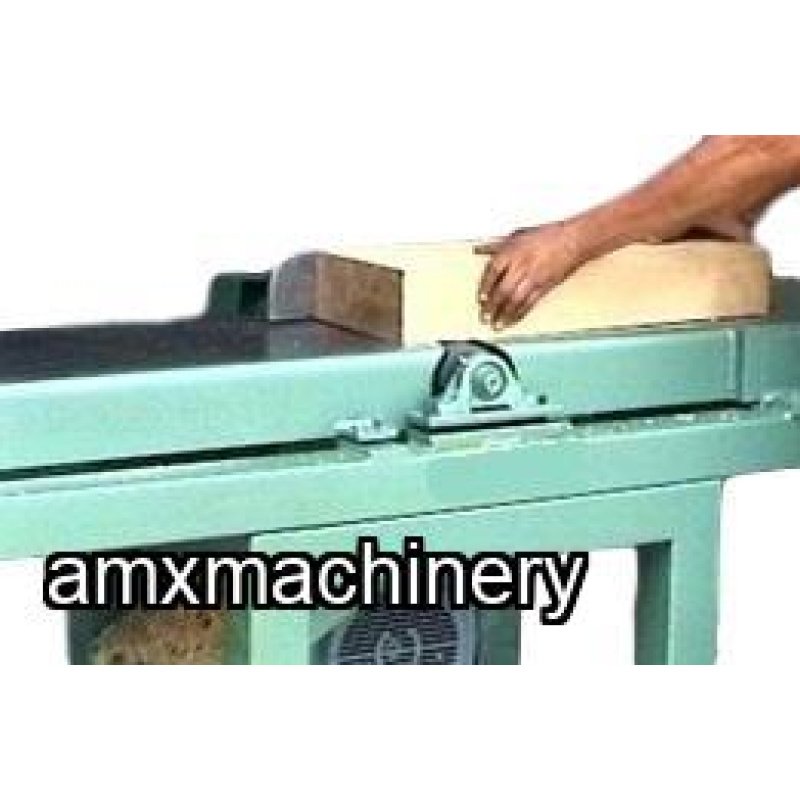

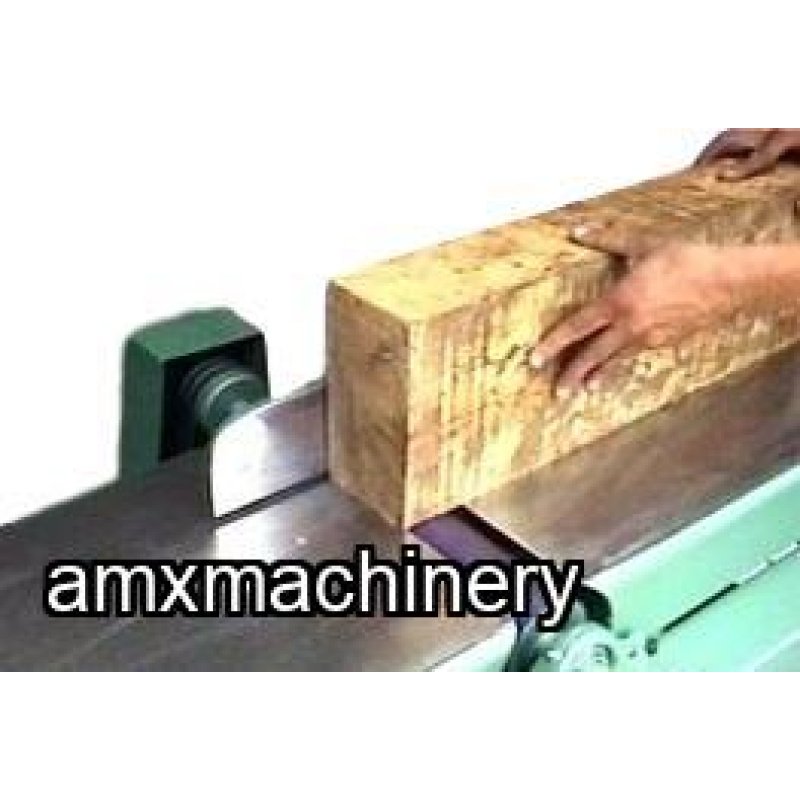

PARTE # 1N-CTA-008 - CANTEADORA - 8" ANCHO - MOTOR 2 HP
PARTE # 1N-CTA-010 - CANTEADORA - 10" ANCHO - MOTOR 3 HP
PARTE # 1N-CTA-012 - CANTEADORA - 12" ANCHO - MOTOR 5 HP
PARTE # 1N-CTA-014 - CANTEADORA - 14" ANCHO - MOTOR 5 HP
PARTE # 1N-CTA-016 - CANTEADORA - 16" ANCHO - MOTOR 5 HP
CANTEADORAS PARA USO PESADO INDUSTRIAL
CARACTERISTICAS | ANCHO 8” | ANCHO 10” | ANCHO 12” | ANCHO 14” | ANCHO 16” |
LONGITUD DE LA MESA | 74” | 74” | 74” | 74” | 74" |
CABEZAL | 4 CUCHILLAS 1/8" X 1" | 4 CUCHILLAS 1/8" X 1" | 4 CUCHILLAS 1/8" X 1" | 4 CUCHILLAS 1/8" X 1" | 4 CUCHILLAS 1/8" X 1" |
DIAMETRO PORTA CUCHILLAS | 3” | 3” | 3” | 3” | 3" |
ROTACION PORTA CUCHILLAS | 3400 RPM | 3400 RPM | 4000 RPM | 4000 RPM | 4000 RPM |
LONGITUD DE LA GUIA | 36” | 36” | 36” | 36” | 36" |
ALTURA DE LA GUIA | 3-3/4” | 3-3/4” | 3-3/4” | 3-3/4” | 3-3/4" |
CORTE MAXIMO | 5 MM | 5 MM | 5 MM | 5 MM | 5 MM |
INCLINACION DE LA GUIA | 45 A 90 GRADOS | 45 A 90 GRADOS | 45 A 90 GRADOS | 45 A 90 GRADOS | 45 A 90 GRADOS |
BANDAS "V" PARA MOTOR TRFASICO Y MONOFASICO | SI | SI | SI | SI | SI |
MOTOR | 2HP, 220V, 3 FASES | 3HP, 220V, 3 FASES | 5 HP, 220V, 3 FASES | 5 HP, 220V, 3 FASES | 5 HP, 220V, 3 FASES |
MOTOR OPCIONAL | 2HP, 110/220V, 1 FASE | 3HP, 110/220V, 1 FASE | 5 HP, 110/220V, 1 FASE | 5 HP, 110/220V, 1 FASE | 5 HP, 110/220V, 1 FASE |
PESO | 60KG | 75KG | 85KG | 100 KG | 120 KG |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PEGADORA DE SABANAS - FISHER RÜCKLE CROSSMASTER
PARTE
# 12160 – PEGADORA DE SABANAS - FISHER RÜCKLE CROSSMASTER
USADA – MUY BUENAS CONDICIONES
Year of manufacture 2008
Opening width mm 2.800
Veneer thickness min mm 0,3
Veneer thickness max mm 1,5
Strip width min mm 50
Strip width max mm 600
Feed rate max m/min 36
Cross splicing machine Yes
Edge gluing Yes
Trimming unit Yes
Rip cut Veneer clipper
Joint Only edge gluing
Controls and software:
SIEMENS SIMATIC PANEL
CE marking Yes
Total c...
AMXmachinery
CALDERA - HURST HYBRID 200, 300, 600 HP
PARTE: 12319 -
CALDERA - HURST HIBRIDAS 200, 300, 600 HP
USADAS - BUENAS
CONDICIONES
Hurst Hibrida 600
HP 150 PSIHurst Hibrida 200
HP 150 PSI
Hurst Hibrida 300
HP 150 PSI
Each system should
include (email for specifics):
Hurst Hybrid
Vessel
Hurst Boild
Furnace with cast grates
Hurst underfeed
stoker system
Hurt Metering
conveyor system
Overfire air
combustion fan
Underfire air
combustion fan
Hurst combustion
air preheater
Access platform...
-500x500.jpg)
AMXmachinery
PRENSA ENSAMBLADORA FINGER JOINT
PARTE: 2TA-SFJ-4500A - PRENSA
ENSAMBLADORA FINGER JOINTFeatures:
Very efficient automatic
machine that performs three functions:
Jointing of
sectional sticks which have been glued
Cutting the jointed
sticks to desired length
Final assembly is
securely pressed by powerful hydraulic system
Then the jointed
sticks be fed out regularly
Auto power feeder
for fast feeding and auto stops at the desired length to be cut.
Furnished with
cut-off saw as standard equipment for c...
AMXmachinery
EXTRACTOR ASERRIN 3 HP
PARTE: AMX-10147 - EXTRACTOR ASERRIN 3 HP
USADO - BUENAS CONDICIONES
MOTOR 3
HP, 208 - 230/460V, 3 FASES, 3500 RPM, WEG SEVERE DUTY
ENTRADA REDONDA: 6.5”
SALIDA CUADRADA: 5” X 5”
MEDIDAS: 22” ANCHO X 19” FONDO X 27”
ALTO
