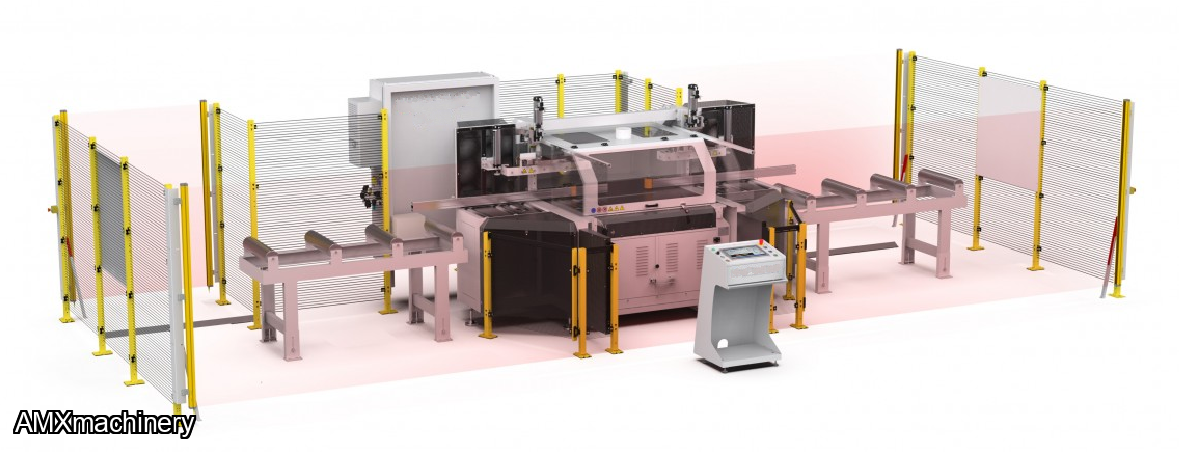

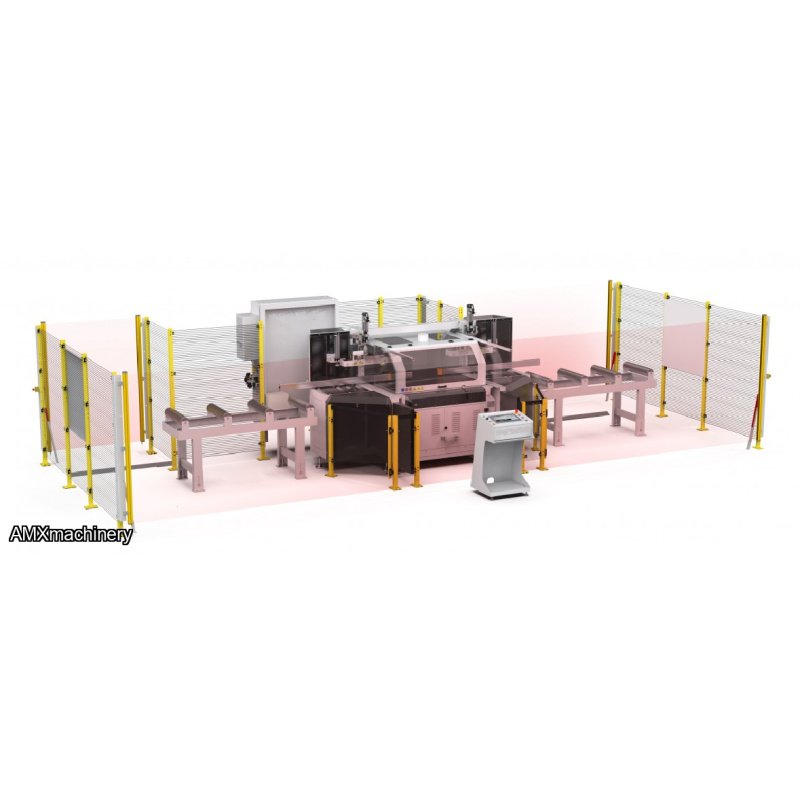

CENTRO DE CORTE PARA TABLONES

AUTOMATIC BEAM PROCESSING CENTRE

COMPOUND CUTTING FOR LARGE SECTIONS

Is the cutting centre for large-section beams, making it the optimal solution in carpentry and timber frame construction.

Thanks to an electronically controlled 5-axis technology, it satisfies all straight, tilting and compound cutting requirements.

It guarantees maximum processing speed and finished product quality, reducing labour and maximising production.

Can process beams of any length with cross-sections from 120x45 mm up to 290x280 mm.

Beam movement system with motorised rubberised wheels and pneumatically tilting upper pressers.

The software architecture relies on a CAD-CAM 'Stromab Easy-Wood' to import machining lists

generated by external design software such as SEMA, DIETRICH AND CAD-WORK.

Easy and intuitive graphical interface.

Mechanical and photoelectric barriers delimit the operating areas and enable the cycle in automatic mode with integrated safety logic.

Polycarbonate windows for superior visibility and a well-lit cutting area.

Certified multi-layer barriers (20 layers) to reduce the residual risk due to blade plate projection.

Technical specifications Cutting unit

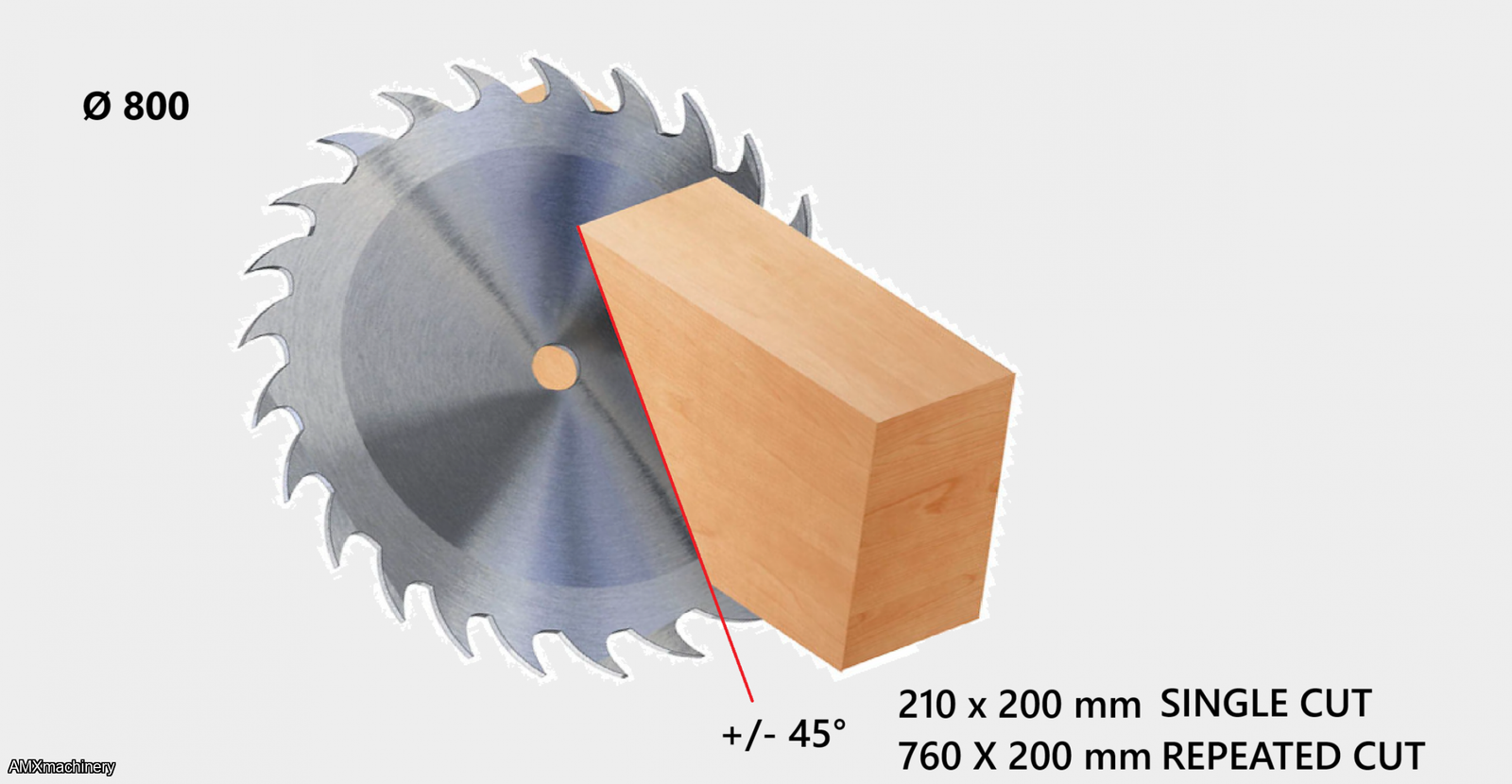

Blade diameter

• 800 mm

Blade rotation speed

• 1450 rpm

Blade motor power

• kW 15 (HP 20) with Inverter

Blade driving

• Automatic electronically controlled

Working table height

• 1000 mm

Minimum crosscutting section

• 120 x 45 mm

Maximum trimming height

• 300 mm

Blade inclination

• 0° +45°

Blade rotation

• 0° - 355°

Beam feed speed on rollers

• 0 - 17 mt / min

Workpiece loading

• left or right side

Max operating pressure

• 6-8 bar

Extraction outlets

• 2 x Ø150 mm

Net weight

• 2950 kg
