Descripción

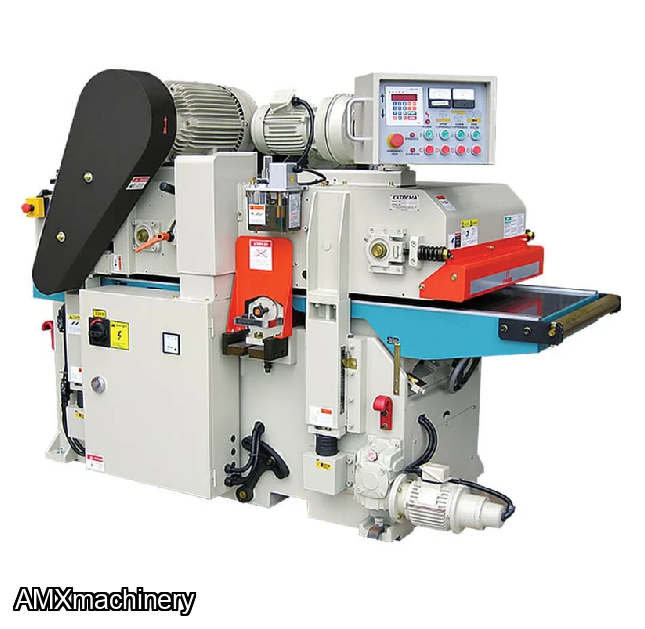

PARTE: 2EX-XP-216T - CEPILLO 2 CARAS - 16" ANCHO
Details:
- Jointer style infeed for excellent de-cupping capability
- Feed speeds from 20-65 ft/min
- Easy access slide out cutter head
- Digital PLC thickness controller
- 6000 RPM cutter heads
- Swivel control panel
- Carpet feed pressure adjustment
- Wye-delta soft start
- Hard chrome plated bed
- Amp load meters
- Available with the VECTOR, STEALTH, MACH,or straight cutters
- Automatic lubrication w/ low oil shutdown
- Sectional chipbreaker
Specifications:
- Horsepower: 20 / 10 HP
- Voltage: 230V / 460V
- Phase(s): 3 PH
- Width: 16"
- Top Motor: 15 HP
- Bottom Motor: 10 HP
- Elevation Motor: 1/2 HP
- Feed Motor: 2 HP
- Max Thickness: 7"
- Min Thickness: 3/8"
- Min Stock Length: 12"
- Cutterhead RPM: 6000
- Top Cutter Access: Rear
- Bottom Cutter Access: Slide Out
- Disc Brakes: No
- Feed System: Carpet
- Feed Speed: 20-65 ft/min
- CFM Requirements: 2500
- AMPS (220V/440V): 67A / 34A
- Weight: 5000 lbs
