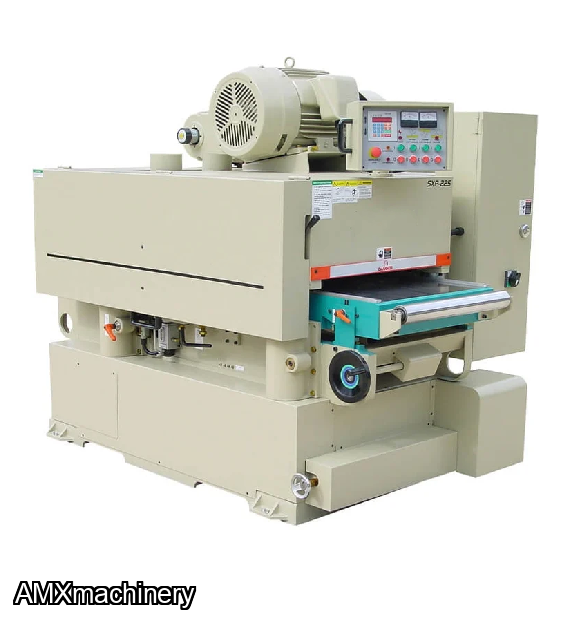

PARTE: 2EX-SXP-225 - CEPILLO 2 CARAS - 25" ANCHO
Details:
Has a feed speed of 20-130 ft/min., a shaftdrive system, segmented feed rollers, 12 sets of feed rollers, jointer style infeed, patented top and bottom Super Slide out cutterheads, pneumatically loaded hold down rolls, a hard chrome plated bed, optinal long infeed table, disc brakes, massive four post elevation system and is available with Vector, Stealth, Mach or Straight Knife cutterheads.
- Patented top and bottom Super Slide slide out cutterheads
- Segmented pressure roller conforms to wood variances without sacrificing strength and durability
- Jointer style infeed
- Feed speeds 39 – 130 ft/min
- Digital PLC thickness controller
- 6000 RPM cutterheads
- Pneumatically loaded hold down rollers
- Long lasting hard chrome plated bed for
- increased durability and smooth feeding
- Durable and reliable shaft drive system
- Powered top and bottom feed rollers provide excellent traction for larger material
- The only planer on the market with disc brakes
- Available with VECTOR, MACH, STEALTH or straight knife cutterheads
- Massive 4 post elevation system
- Wye-delta soft start
- Centralized lubrication system
- Amp load meters
- Auto thickness device for precise thickness positioning
- Overload interrupt detection
- Elevation interlock prevents cutterhead from moving while machine is in operation
- 12 sets of powered feed rollers for positive feeding traction
Powerful and Flexible Feed System
High feed speeds and planing capacity make sectional feed roller, pneumatic pressure adjustment, and shaft drive bed rollers a most. Shafts provide years of trouble free performance and pneumatically loaded feed rollers allow adjustments to be made for each application. Segmented feed rollers enable the planer to take varying thickness of material.
Specifications:
Horsepower: 50 / 40 HP
Voltage: 230V / 460V
Phase(s): 3 PH
Width: 25"
Top Motor: 50 HP
Bottom Motor: 40 HP
Elevation Motor: 2 HP
Feed Motor: 5 HP
Max Thickness: 8"
Min Thickness: 3/8"
Min Stock Length: 15-1/2"
Cutterhead RPM: 6000
Top Cutter Access: Super Slide
Bottom Cutter Access: Super Slide
Disc Brakes: Yes
Feed System: Seg. Roller
Drive System: Shaft
Feed Speed: 39 - 130 ft/min
CFM Requirements: 3000
AMPS (220V/440V): 238A / 119A
Weight: 9610 lbs
