Identificador: 1581
Abierta
Descripción

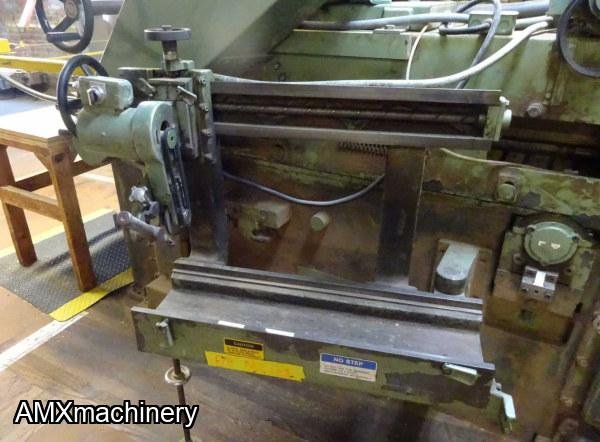

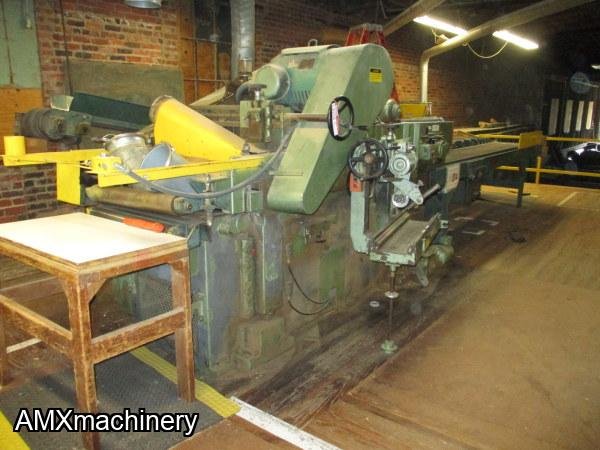

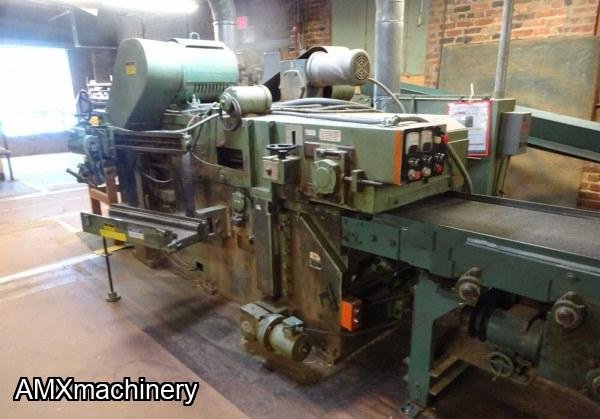

PARTE: 12334 - CEPILLO 2 CARAS - CAPACIDAD 24”
USADO - BUENAS CONDICIONES
Standard Specifications:
- 24" x 6" work piece capacity
- 12" min. length, (6" min. butted) x 1/4" min. thickness
- 30 HP upper cutter head motor, 20 HP lower head motor

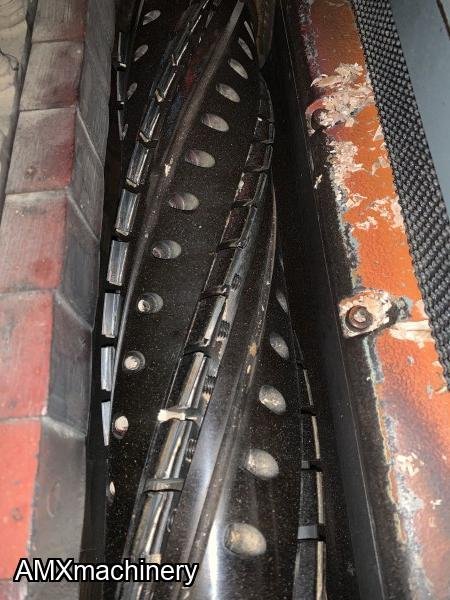

- Whisper helical carbide cutterhead, (1/2" max. depth of cut)
- 1 HP platen/thickness elevator motor
- 5 HP variable speed feed motor, (25 to 100 ft/min. feed speed)
- 2" concentric chipbreakers with pressure rollers
- (.001" to .100") independent bottom table feed roller adjustment
- Main carpet feed conveyor with (1,300), 9/16" diameter holddown fingers
- Includes grinding equipment for upper and lower cutterheads
- 115" x 79" x 69" approx. overall dimensions
- Weighs approx. 12,500 lbs
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 12654 - LIJADORA - CALIBRADORA - BANDA ANCHA – 2 LIJAS - 36” ANCHO
PARTE: 12654 - LIJADORA - CALIBRADORA - BANDA ANCHA
– 2 LIJAS - 36” ANCHO
Usada
Motor principal: (2) 5 HP, conectada 440V, 3 fases
Motor avance: 3 HP, conectada 440V, 3 fases
AMXmachinery
BRIQUETEADORA - ENTRADA 55” X 55” X 37” - RECTANGULO
PARTE: 2WE-TH1500M - BRIQUETEADORA - ENTRADA 55” X 55” X
37” - RECTANGULO
NUEVA CON GARANTIA
Capacidad: 800-1,000 lbs/hr
- Hopper Dimensions:
55.1 x 55.1" x 37" (1,400 x 1,400 x 960 mm)
- Hopper Configuration:
4 sides straight
- Hopper Volume: 2.46.
yds³ (1.88 m³)
- Main Hydraulic Motor
for Pressing Cylinder: 40 hp (30 kW)
- Agitator Motor: 3.0
Hp (2.2 kW)
- Auger Motor: 2.6 hp
(1.9 kW)
- Hydraulic Oil Volume:
264 gal (1000 liters)
- Briquette Dimens...
-500x500.jpg)
AMXmachinery
LIJADORA DE TAMBOR 50"
PARTE # 2SM-750102 - LIJADORA DE 2 TAMBORES - 50" DE ANCHO – 7.5 HP, 220V, 1 FASEPARTE # 2SM-750302 - LIJADORA DE 2 TAMBORES - 50" DE ANCHO – 7.5 HP, 220V, 3 FASES SPECIFICATIONSSanding Capacity:Maximum Width (in): 25, 37, 50Minimum Length (in): 3-1/2Maximum Thickness (in): 25″ model: 637″ & 50″ models: 12Minimum Thickness (in): 1/32Dimensions HxWxD (in):25″ model: 43 x 46 x 3137″ model: 43 x 58 x 3150″ model: 50 x 71 x 31Drum (in): (extruded aluminum)25″ model: 5 x 2537″ ...
AMXmachinery
PARTE: 3MA-ULTRAWII - CEPILLO 2 CARAS - 250 MM ANCHO - 3 HP - MARUNAKA
PARTE:
3MA-ULTRAWII - CEPILLO 2 CARAS - 250 MM ANCHO - 3 HP - MARUNAKA
NUEVO CON GARANTIAOne way feeding onlyWork width: 250 mm (25 degrees), 55 mm (60 degrees)Work Height: 180 mm
Knife bias angle: 0 - 60 degrees variableFeed speed: 88 m/min (60hz), 73 m/min (50hz)Feed motor : 2.2Kw x 2 motors
Head up/down motor: 0.2 Kw2 knife stocks on top and bottom surfacesKnife type: Changing blade typeKnife size: 335 length x 66 x 8 mmAccessories: Changing blades and standard toolsMachine size: (WxLxH...
