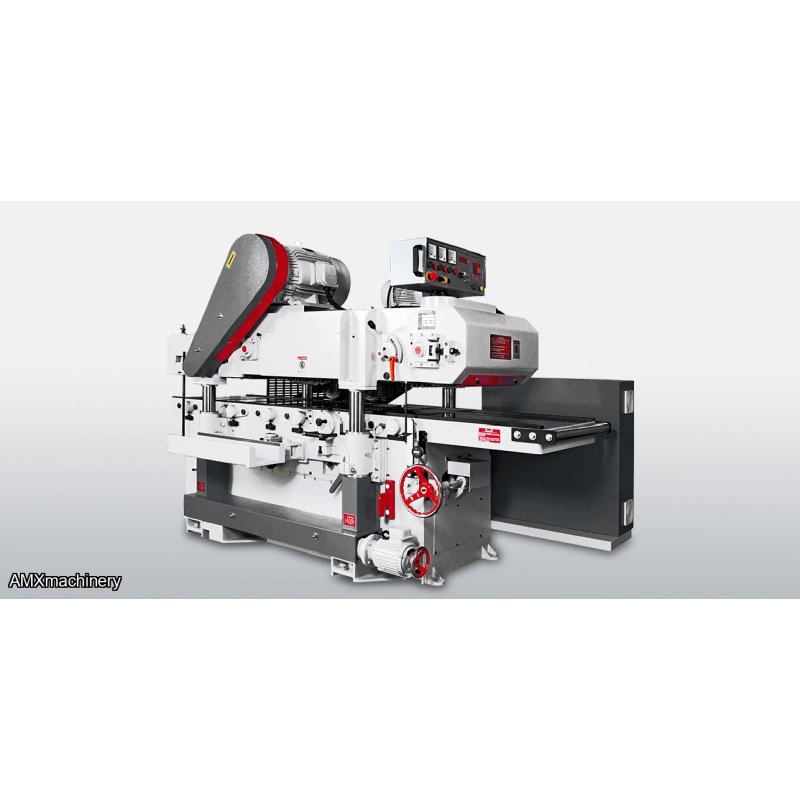

CEPILLO 2 CARAS - EJE CARDAN 24"

Is capable of speeds up to 98 feet per minute and its robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out.  The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.

• Powerful 40HP top head motor and 30HP bottom head motor for maximum stock removal
• Full cardan shaft feed system allowing for faster feed speeds up to 98 FPM
• Planing capacity up to 24” wide and 8” thick
• Pin type carpet feed system passes the material over the bottom head to ensure a flat surface
• (7) bed rollers including (3) driven rolls for superior feed speeds
• Spiral insert knife cutterheads with 6 rows of two-sided 30x12x2.5mm solid carbide insert knives provide superior stock removal, reduced machine load and noise, and optimum finish quality

• Cast iron machine frame for superior vibration damping resulting in a long machine & bearing life
• Chrome-plated tables and top and bottom for maximum wear resistance
• Cutterheads are mounted in precision ABEC 7 RHP bearings
• Feed system uses a spring-loaded pin arrangement to pass material over the bottom jointing head.
• Sectional serrated infeed roll before the top cutterhead
• Variable feed speed by frequency inverter (VFD) with digital display for the feed speed
• Digital thickness control for quickly and precisely setting the desired thickness
• Upper assembly is adjusted for desired thickness by four large diameter cylindrical posts
• Adjustable infeed bed by easily accessible handwheel to set desired stock removal on the bottom head
• Easy to access swivel control panel with individual ammeters for load monitoring and hour meter to aid in maintenance planning
• Cutterhead starters are Y-Delta providing soft start to the heads for reduced power consumption on startup
• Automatic lubrication to the conveyor feed system
• High quality Schneider electrical components to CSA/UL standard
