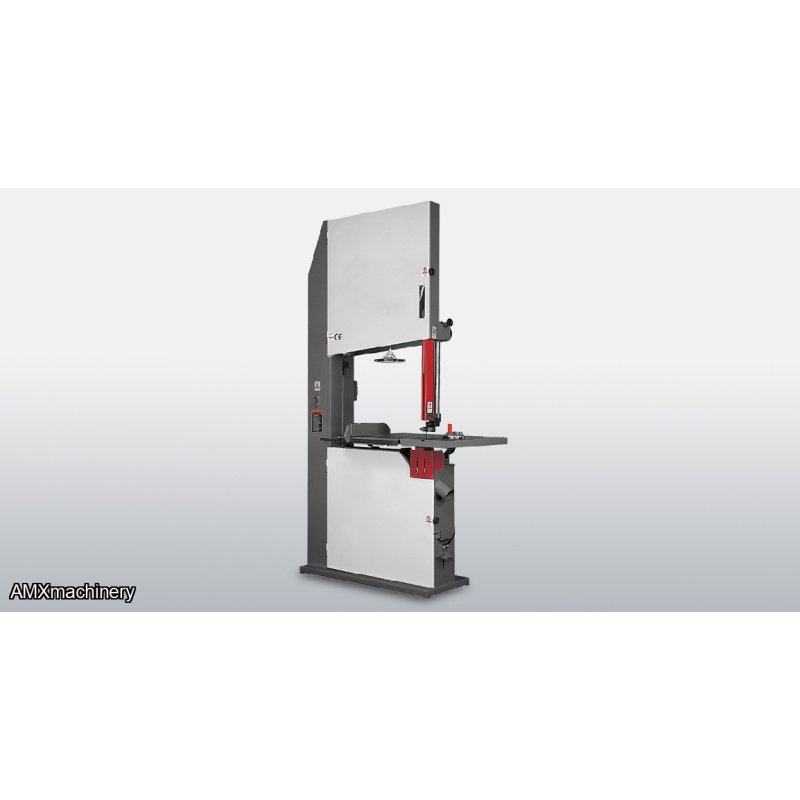

Is a heavy duty bandsaw that is built to last. With its industrial cast iron wheel and table assembly it can handle any job. What makes it unique is the capacity to run from ¼” to 2” wide blade allowing you to do intricate curve work as well as resaw timbers to size. The saw wheels are driven by a powerful 10HP motor allowing you to make your cuts with ease. With a large cutting height capacity under the guide of up to 22” it can also be ideal for cutting materials such as foam. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.
Saw Wheel Diameter | 37″ |
Table size | 45-1/4” x 31-1/2″ |
Table Tilting | 0°~45° |
Throat Capacity | 36-1/2″ |
Height capacity | 22″ |
Width of wheel | 2″ |
Blade speed | 5500 FPM |
Blade length | 259” – 261″ |
Blade width | 1/4″~2″ |
Motor | 10HP |
Dust hood diameter | Ø4″ * 2 |
Net weight | 1584 lbs. |
Gross Weight | 2046 lbs. |
Machine Size(L*W*H) | 63.75″ x 32.7″ x 113.4″ |
Packing Size (L*W*H) | 117″ x 30″ x 61″ |
Electrical requirement | 230/3/60 = 28 amps | 460/3/60 = 14 amps |
