Identificador: 109
Abierta
Descripción

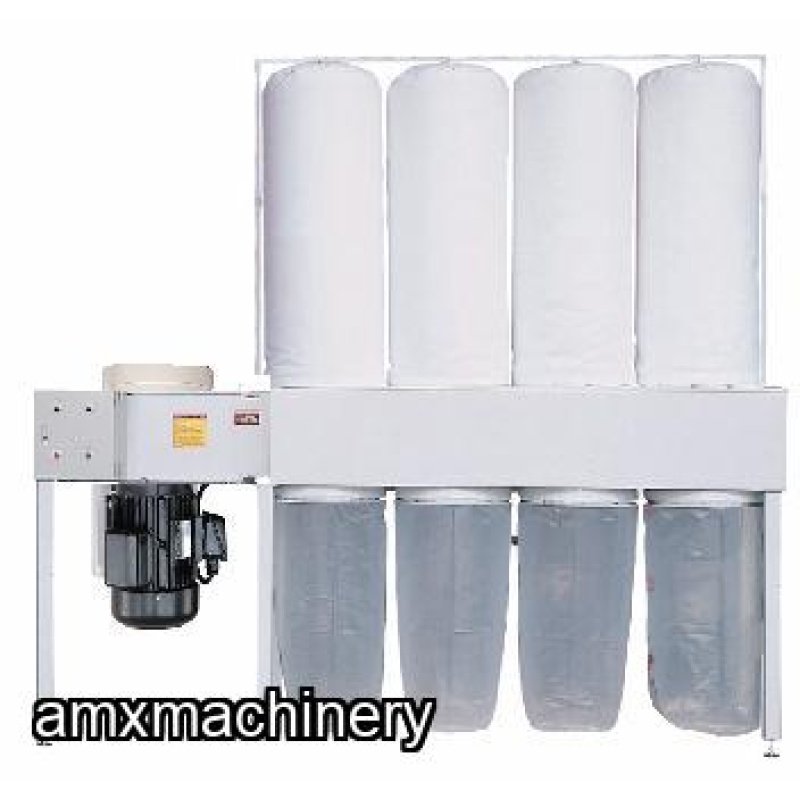

PARTE # 2TA-DC-9100 – COLECTOR DE ASERRIN – MOTOR 10 HP – 8900 CFM
PARTE # 2TA-DC-9200 – COLECTOR DE ASERRIN – MOTOR 20 HP – 12200 CFM
PARTE # 2TA-DC-9250 – COLECTOR DE ASERRIN – MOTOR 25 HP – 14600 CFM
Nuevo con garantia
- Heavy sheet metal frame and base.
- Extra large radial-fin type steel impeller for high efficiency air flow.
- Heavy duty, totally enclosed industrial motor for maximum air suction and extended service life.
- Low sound levels to keep the working area quiet.
SPECIFICATIONS | 2TA-DC-9100 | 2TA-DC-9200 | 2TA-DC-9250 |
Motor | 10 HP 3 PH | 20 HP 3 PH | 25 HP 3 PH |
Fan Diameter | 15" | 16" | 16" |
Static Pressure (INH2O) | 23 | 27 | 27 |
Air Capacity | 8900 | 12200 | 14600 |
Sound Rating (db) | 85 ~ 95 | 85 ~ 95 | 85 ~ 95 |
Connection Outlet Dia. | 10" | 15" | 16" |
Top Filter Bag Size (Dia x H) | 13.8" x 59" | 13.8" x 59" | 13.8" x 59" |
Top Filter Bag Quantity | 10 | 20 | 20 |
Bottom Collect Bag Size | 23.6" x 35.5" | 23.6" x 35.5" | 23.6" x 35.5" |
Bottom Collect Bag Quantity | 4 | 6 | 6 |
Machine Size | 138" x 39" x 120" | 181" x 47" x 120" | 181" x 47" x 120" |
N.W. | 1360 | 1770 | 1960 |
