Identificador: 3224
Abierta
Descripción
PARTE: 2EX-DC-2100 - COLECTOR DE POLVOS - 10 HP - CICLON

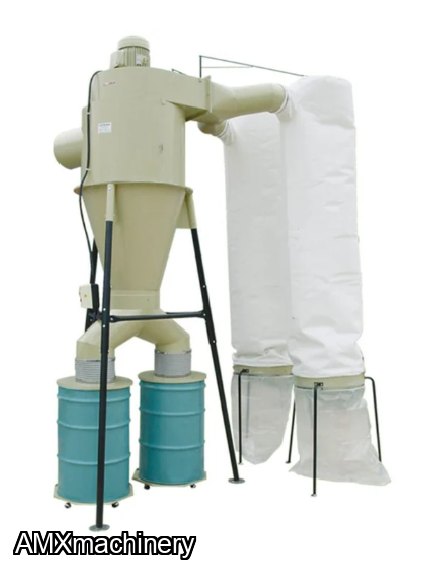

The cyclone dust collector is powered by a 10 horsepower TEFC motor and is equipped with 2 1-micron filter bags. It features a 117 square foot filter area with 32 cubic feet of storage capacity measuring 148 inches tall by 128 inches wide by 56 inches deep. This three-phase dust collector has 27 amps at 220 volts. Free air cfm 6400 with working cfm up to 5500 cfm. This unit is self contained unit with that includes cyclone, motor, filters, and magnetic starter made for simple set up. Drums not included.
|
|
|
3HP 1PH Cyclone Dust Collector, 230V
|
5HP 3PH Cyclone Dust Collector
|
7.5HP 3PH Cyclone Dust Collector
|
|
Amps
|
27A @ 220V |
15A @ 220V |
1PH: 27A @ 220V 3PH: 17A @ 220V |
1PH: 38A @ 220V 3PH: 20A @ 220V |
|
Cfm
|
6400 |
1785 |
2975 |
4850 |
|
Dimensions
|
148″ x 128″ x 56″ |
123″ x 65″ x 42″ |
140″ x 110″ x 50″ |
140" x 120" x 50" |
|
Dual barrel design
|
true |
— |
— |
— |
|
Fan rpm
|
3450 |
3450 |
3450 |
3450 |
|
Fan size
|
16" |
13″ |
14.25″ |
14.75" |
|
Filter-bags
|
2 |
1 |
2 |
2 |
|
Filter area
|
117 |
37 |
59 |
117 |
|
Horsepower
|
10HP |
3HP |
5HP |
7.5HP |
|
Impeller size
|
16" |
13″ |
14-1/4″ |
14.75" |
|
Inlet-size
|
13" |
8″ |
10" |
12" |
|
Motor
|
TEFC 10 HP |
TEFC 3 HP |
1PH: BALDOR 5 HP 3PH: TEFC 5 HP |
1PH: BALDOR 7.5 HP 3PH: TEFC 7.5 HP |
|
Phase
|
3 |
1 |
1 or 3 |
1 or 3 |
|
Static pressure
|
16" |
10″ |
12″ |
13.5" |
|
Storage capacity
|
32 |
12.78 |
11 |
24 |
|
Weight
|
750 lbs |
260 lbs |
440 lbs |
540 lbs |
Pago y Devoluciones
- Forma de pago
- N/A
