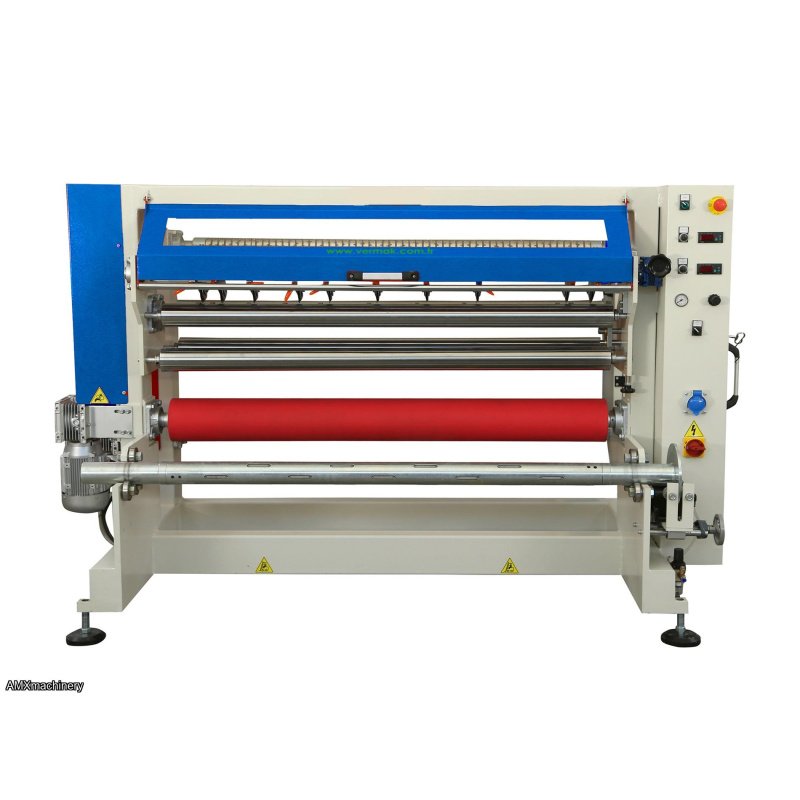

CORTADORA DE FOIL CON NAVAJAS RECTAS Y CIRCULARES

PARTE: 4VE-VFS-1500-BF – CORTADORA DE FOIL CON NAVAJAS RECTAS Y CIRCULARES

Nueva con garantía

General Features

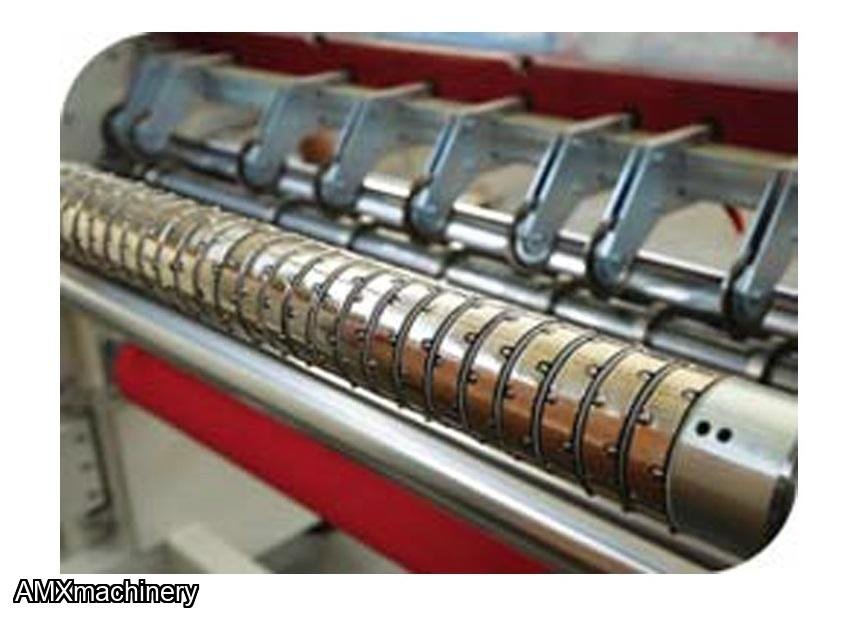

Cutting & crushing system with circular upper and lower rotary blades and friction shafts which is provide much more precise cutting. it is a perfect solution for slice papers, folio [PVC, PP, PE, PU]. sandwich foils, laminates, some textiles, metal foil and edge materials.

Automatic winding brake force air control, contactless and depending on diameter.

Continuous network speed, independent of the diameter.

The minimum setup times, a fast-change blade system

Two winder shaft and also available as friction winding shaft.

Heavy steel frame in robust design.

High drive force for very tight winding, Deionization is available.

NO       STANDARD SPECIFICATIONS                                                                                      QTY

1          Main shaft for fix foil pneumatic with sliding brake system                                                  1

2          Air shafts for winder cut foil                                                                                                   2

3          Shafts with a rubber coating, for tight winding cut PVC film                                                  4

4          Chrome coated shaft with, for tight winding cut PVC film                                                      1

5          The mobility of the machine provide gear reducer and motor, motor speed are adjustable  1

6          All electrical equipment machinery (Telemecanique)                                                             1

7          Emergency stop systems and safety switches                                                                      1

8          Sliding brake system can be adjusted to the desired width                                                   1

9          Cutting is provided with the Industrial flat blades (RAZOR BLADES)                                  10

                                                                TECHNICAL DATA

FOİL TYPE                                                  : PVC, PAPER

MAX ROLL DIAMETER and WIDTH          : 500 mm , 1500 mm

ROLL                                                            : 5pcs

MİN-MAX FOIL THICKNESS                       : 0,15 - 0,40 mm

CUTTING SPEED                                         : 75 m/min

MINIMUM SLICER WIDTH                          : 30 mm

TOTAL POWER                                            : 3 KW

VOLTAGE                                                     : 380 VOLT

FREQUENCY                                                : 50 Hz

WEIGHT                                                       : 1000 Kg
