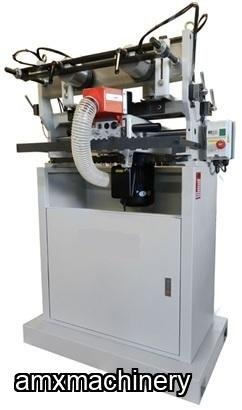

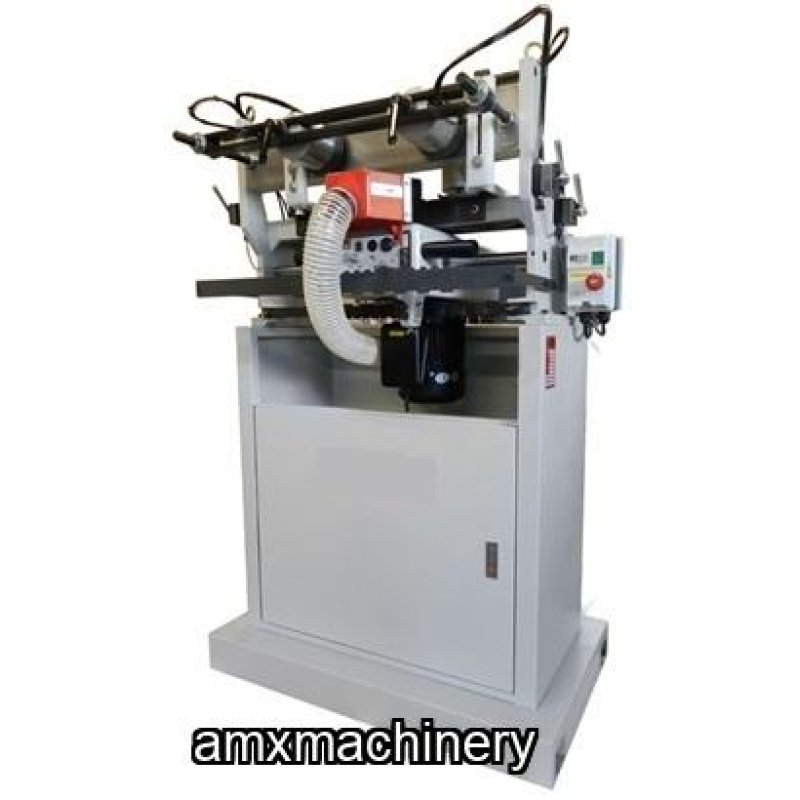

ENLAZADORA/COLA DE MILANO

PARTE: 2LO-JDT65 - ENLAZADORA/COLA DE MILANO

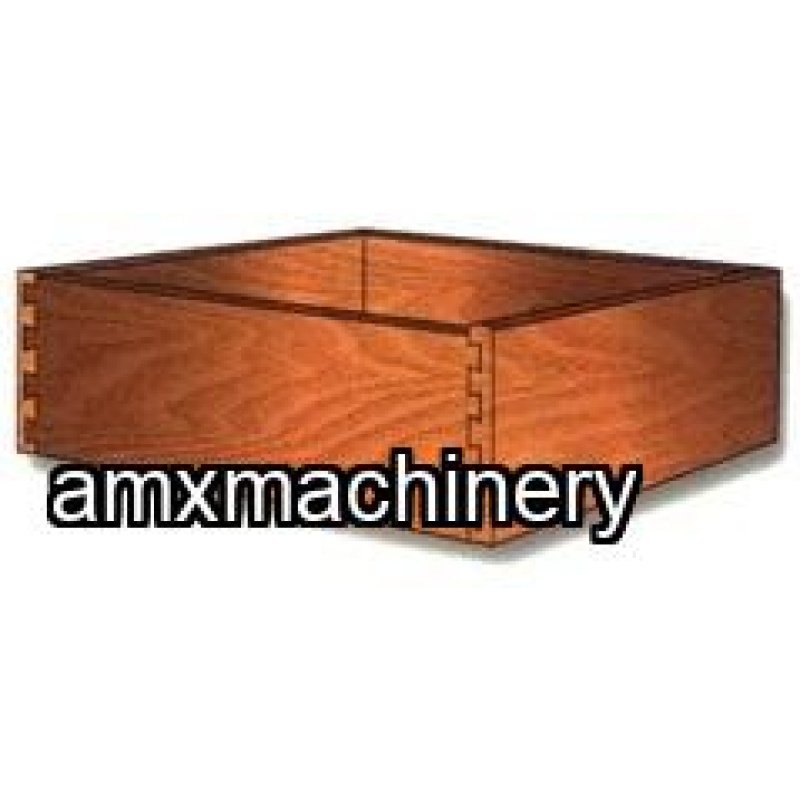

Ideal for drawer production and furniture parts which require high quality dovetail joints.

Max. workpiece size 59" x 16 ½"

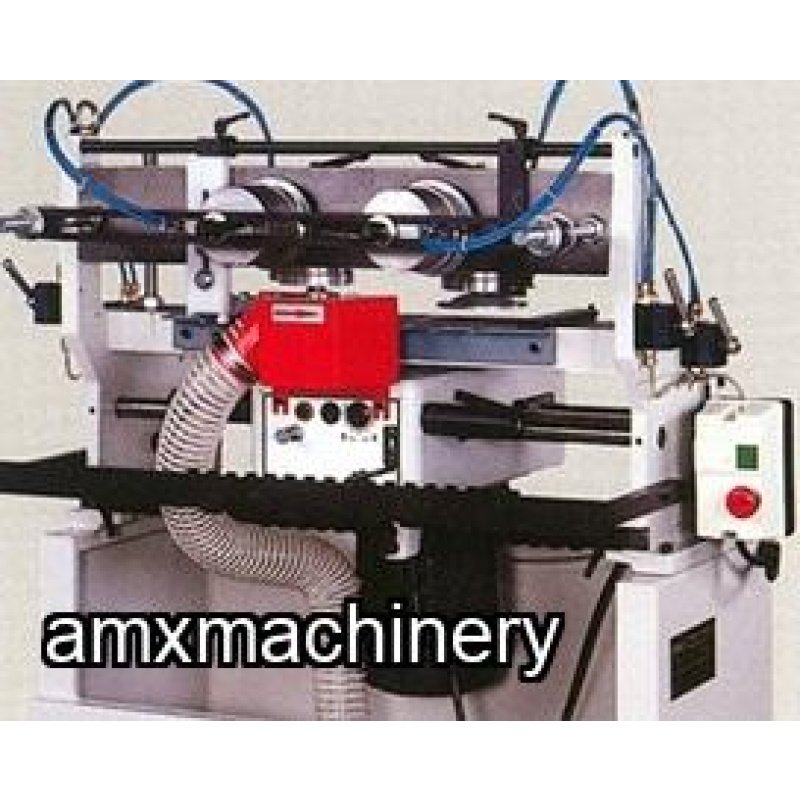

Workpieces are clamped by air clamps.

Enclosed-type stand.

Equipped with an indication bar for indicating cutting position.

Tenon width can be micro-metrically adjusted in 2 mm.

Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece.

Equipped with one four-sided template providing four types of pitches between dovetails.

Standard pitch 1", 1 ½", 2" and 2 ½” (Other sizes available on request)

The spindle accommodates 12 mm T.C.T. cutter bit.

SPECIFICATIONS

Minimum workpiece size        7.9" x 2.4"

Maximum workpiece size       59" x 16.5"

Minimum dovetail height         0.2"

Maximum dovetail height       0.71"

Minimum front thickness        0.28"

Maximum front thickness       2.36"

Minimum side thickness         0.28"

Maximum side thickness        2.36"

Number of spindles     1

Spindle speed (RPM) 18500 RPM

Center pacing of dovetails      1", 1.5", 2", 2.5" standard

Table height from floor           46.5"

Dust collection ports diameter            front 2.5", rear 4"

Air pressure requirement        6 bar

Motor   1 HP

Electrics          230/1/60= 8.0 Full Load Amps

Packing dimensions    42 ½” x 30" x 65 ½”

N.W. / G.W.    440 lbs / 510 lbs.
