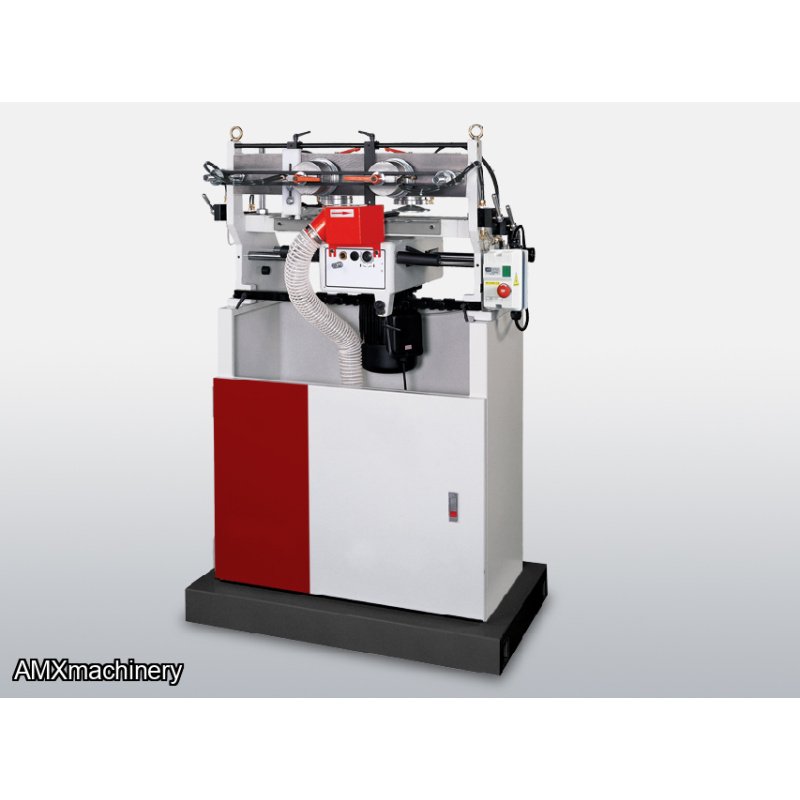

Produces both the pin and tail of the dovetail simultaneously. All four sides of the drawer can be loaded into the machine for optimum production capacity. The operator controls the dovetail unit by following a simple template allowing for ease of operation and quality joints. Equipped with a choice of four pitch templates for varying types of dovetail joints.
- Ideal for drawer production and furniture parts which require high quality dovetail joints.
- Workpieces are pneumatically clamped to speed up material changeovers
- Equipped with one four-sided template providing four pitches between dovetails.
- Floating dovetailing unit has ball bearings which run on chrome steel guiderails for effortless operation
- Standard pitch 1″, 1 ½”, 2″ and 2 ½”
- Solid carbide single flute eccentric dovetail bit controls the fit of the joint
- 18500 RPM spindle for superior cut quality
- Max. workpiece size 59″ x 16 ½”
- Workpieces are clamped by air clamps
- Equipped with an indication bar for indicating cutting position
- Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece
- The spindle accommodates 12 mm TCT eccentric cutter
- Enclosed base
- Magnetic switch with thermal overload protection
INCH |
METRIC |
|
Minimum workpiece size |
7.9″ x 2.4″ |
200 x 60mm |
Maximum workpiece size |
59″ x 16.5″ |
1500 x 420mm |
Minimum dovetail height |
3/16″ |
5mm |
Maximum dovetail height |
0.71″ |
18mm |
Minimum front thickness |
0.28″ |
7mm |
Maximum front thickness |
2.36″ |
60mm |
Minimum side thickness |
0.28″ |
7mm |
Maximum side thickness |
2.36″ |
60mm |
Number of spindles |
1 |
|
Spindle speed (RPM) |
18500 RPM |
|
Center spacing of dovetails |
1″, 1.5″, 2″, 2.5″ |
|
Table height from floor |
46.5″ |
1180mm |
Dust collection ports diameter |
front 2.5″, rear 4″ |
front 63.5mm, rear 100mm |
Air pressure requirement |
6 bar |
|
Motor |
1 HP |
|
Electrics |
230/1/60 = 8.0 FLA |
|
Shipping dimensions |
42 ½” x 30″ x 65 ½” |
1070 x 750 x 1660mm |
N.W. / G.W. |
440 lbs / 510 lbs. |
200 kgs / 223 kgs |
