ESCOPLO – MESA MOVIBLE – 1 LADO - MAKSIWA

PARTE: 2MK-FH.16.C - ESCOPLO – MESA MOVIBLE – 1 LADO

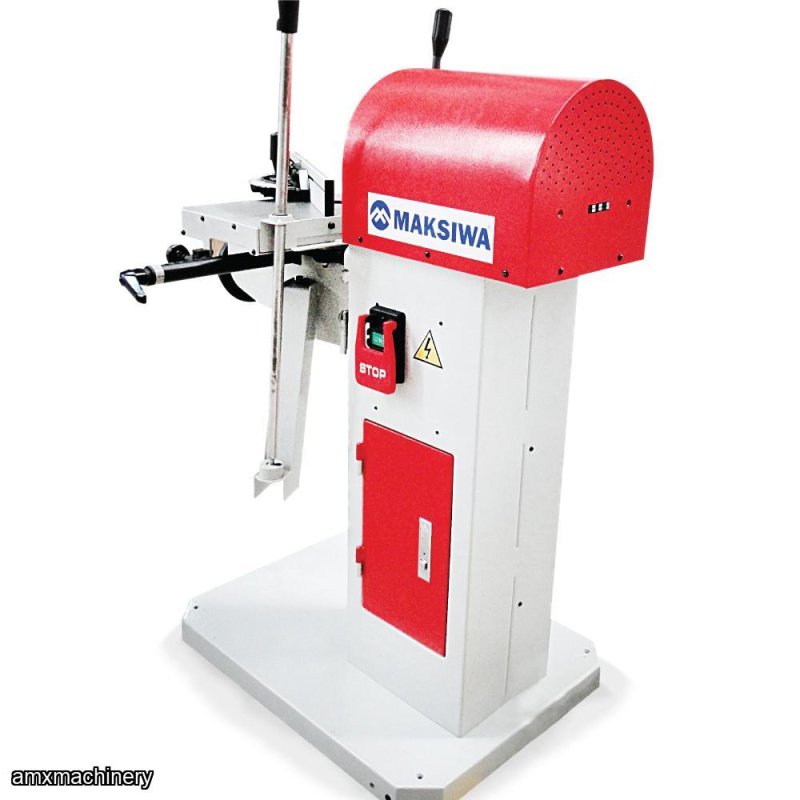

Mobile table, appropriate to drill horizontally in wood with straight cutter or drill. It has eccentric clamping device, articulated arms and extended base. It is conceptually different from the other drills in that during operation, the table is lifted into the work piece. 2 Year Warranty.

Specifications

Mobile table dimensions: 18-1/8" x 7-4/8"

Horizontal table track: 5-3/8"

Vertical table track: 8-5/8"

Chuck track: 4-7/8"

Chuck capacity: 5/8"

Clamp device: Eccentric

Motor: 3 HP - 1 or 3 phases

Volts/Amps:

1 phase: 127 V - 34 A or 220 V - 17 A

3 phases: 220 V - 9 A or 380 V - 5.2 A

Weight: 242.5 Lbs
