Identificador: 1669
Abierta
Descripción

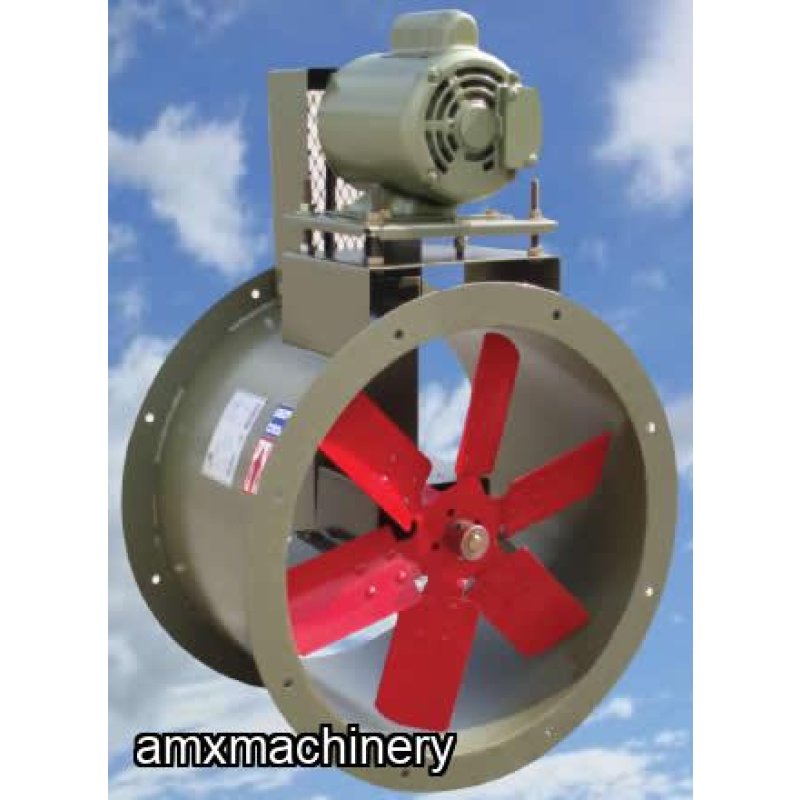

PARTE: 1AM - EXTRACTOR AXIAL DE TUBO - 10" - 24" DIAM - COMERCIAL
Inyectores Tubo Axiales, estan disenadas con bridas para facilitar el montaje en ductos en cualquier posicion para brindar gran volumen caudal-presion en sistemas de ventilacion comercial e industrial.
CARACTERISTICAS:
* Carcaza tubular fabricada en acero de carbon con bridas y aplicacion de pintura epoxica en polvo horneada.
* Helice de aluminio anti-chispa dinamicamente balanceada en 6 alabes.
* Caja cojinetes con rodamientos a bolas o chumaceras.
* Accionado por transmision de poleas y banda a 1 motor electrico exterior al flujo de aire.
* Temperatura maxima de operacion 85 grados C (185 grados F)
* Hecho en Mexico.
APLICACIONES:
* Cabinas de pintura, campanas de extraccion, procesos industriales, extraccion de humo, impulsion de aire en conductos, etc.
ESPECIFICACIONES TECNICAS:
|
Modelo
|
HP
|
Volumen
CFM MC/HR |
|
|
12AI-XTA-10/B |
1/2 |
1,146 |
1,947 |
|
12AI-XTA-10/T |
|||
|
12AI-XTA-12/B |
1/2 |
1,431 |
2,432 |
|
12AI-XTA-12/T |
|||
|
12AI-XTA-16/B |
1/2 |
3,285 |
5,581 |
|
12AI-XTA-16/T |
|||
|
12AI-XTA-20/B |
3/4 |
5,097 |
8,660 |
|
12AI-XTA-20/T |
|||
|
12AI-XTA-24/B |
1 |
7,384 |
12,545 |
|
12AI-XTA-24/T |
|||
