Descripción

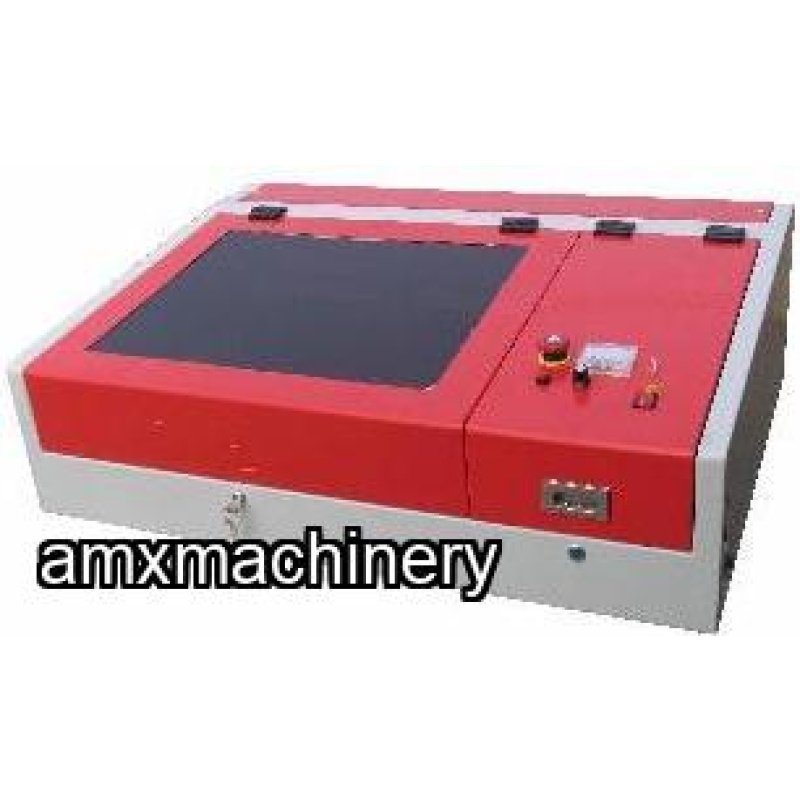

PARTE: 2TA-CLC1616 - GRABADORA LASER CNC 16" x 16"
NUEVA CON GARANTIA
15.8" X 15.8" Grabadora/Cortadora Laser
- Desk Top model for easy usage. Applications for most material and many industries. Some include but not limited to wood, leather, marble, glass, paper, rubbery, plastic, cloth, acrylic, ABS and many more.
- Durable and steady are key features that ensure long life of motion and /- 0.01 mm accuracy.
- Unique optics structure of the fly ray, which has low warp with high, steady and easy optical adjustment.
- Adaptation of the K9 reflect lens and ZNSE focus lens, of which reflectivity and penetrability is the strongest among congener fittings while the facula is thinner with stronger power of cutting. With this combination it maximizes work efficiency and reduces the work piece cost.
- LCD screen with the USB interface for data input. DSP control system based on the stepper Up-Controller Unit of PCI Lines in PV. It adopts the world advanced DSP-TMS320, XC2S300 controller chip which has the advantage of high speed, stable, strong preventing interference.
- The software of the machine has multi-functions; supports the file of DWG, HDGL(PLT), BMP, DXF, G-code, DST and AI which can work with the software of AutoCAD, CorelDraw, and Photoshop.
- This software has the function of power-off memory and continues from the stop point
SPECIFICATIONS | 2TA-CLC-1616 | 2TA-CLC-2012 | 2TA-CLC-4024 |
Max. Working Size | 15.8” x 15.8” | 19.6" x 11.8" | 39.4" x 23.6" |
Laser Power | 40 W | 50 W | 60 W |
Engraving Speed | 0 ~ 2120 ipm | 0 ~ 1890 ipm | 0 ~ 2360 ipm |
Cutting Speed | 0-950 ipm | 0-950 ipm | 0 ~ 1180 ipm |
Reposition Accuracy | 0.0005 " | 0.0005 " | 0.0005 " |
Minimum Letter Size | 0.04 " | 0.04 " | 0.04 " |
Power 220V | 1000W | 1000 W | 1500 W |
Machine Size (L x W x H) | 34" x 36" x 18" | 36" x 26" x 33" | 72" x 39" x 41" |
Machine Weight | 154 lbs | 268 lbs | 477 lbs |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 1SL-DC-MSH16-1 - ESCOPLO VERTICAL DE BANCO
PARTE: 1SL-DC-MSH16-1 - ESCOPLO VERTICAL DE BANCOMOTOR 1/2 HP, 110V, 60 Hz, 1 FASE (220V OPCIONAL)CAPACIDAD DEL CORTADOR: 1/4" - 5/8"ZANCO DEL CORTADOR: 3/4"DESPLAZAMIENTO DEL CABEZAL: 4-3/4" - ALTURA MAXIMA DE LA MADERAVELOCIDAD DEL CORTADOR: 1400 RPMCAPACIDAD DEL BROQUERO: 1/8" - 1/2"MOV. LATERAL DE LA MESA: 6-5/8"MOV. TRANSVERSAL DE LA MESA: 2-3/4"DIMENSIONES DE LA MESA: 6" X 7-1/8"ALTURA MAXIMA DE LA MADERA: 4-3/4"ANCHO MAXIMO DE LA MADERA: 4-3/4"PESO: 40 KGSTIPO DE EMPAQUE: 1 CAJA
AMXmachinery
SIERRA TRIMMER – 120" LARGO - MULTISIERRA
PARTE: 2FA-MET20 – SIERRA TRIMMER –
120" LARGO - MULTISIERRA
NUEVA CON GARANTIA
Standard
Features
Low
Profile
Heavy
Duty Framing
Flat
Waste & Catch Conveyors
Machine
Specs
Dimensions
Length:
13′
Width:
72"
Height:
59"
Infeed
Height: 41"
Width
Including Conveyor: 100"
Power
Blade
Motor: 5 HP 208/230/480/3/60 TEFC
lnfeed
Motor: 1-1/2 HP 208/230/480/3/60 TEFC
Waste
Conveyor Motor: 1/2 HP 208/230/480/3/60 TEFC
Take
A...
AMXmachinery
PARTE: 2CA-WS-A2560 – LIJADORA DE BANDA ANCHA - 25” ANCHO - 1 LIJA
PARTE: 2CA-WS-A2560 – LIJADORA DE BANDA ANCHA -
25” ANCHO - 1 LIJACabezales: 1 cabezasCapacidad: 25" ancho x 60" largoRugged heavy-duty sheet metal construction design for durability usage.Full power industrial motors drive sanding and auto infeed smoothly.Infeed and outfeed are spring loaded hold down rollers to ensure positive feeding without sanding mark.Combination platen & drum sanding head for best sanding choice such as1. With the platen up, the sander functions as a drum only machin...
AMXmachinery
PARTE: 2SP-S-2415 - TRITURADORA - ASTILLADORA - MOTOR 15 HP - ENTRADA 24” LARGO X 36” ANCHO
PARTE: 2SP-S-2415 - TRITURADORA - ASTILLADORA - MOTOR 15 HP - ENTRADA 24” LARGO X 36” ANCHO PARA MADERA, MDF, PLYWOOD, COMPOSITES, PAPEL, CARTON, ETC.NUEVO CON GARANTIA24" wide cutterhead block, 24" wide x 36" deep inlet hopper.15 HP motor/gearbox drive, prepared to operate on 208-230 volts 3 phase power with master control panel & emergency stop included.Generates solid material into approximately 3/8" x 1" sizes.A robust fabrication design built for many years of daily, commercial use s...
