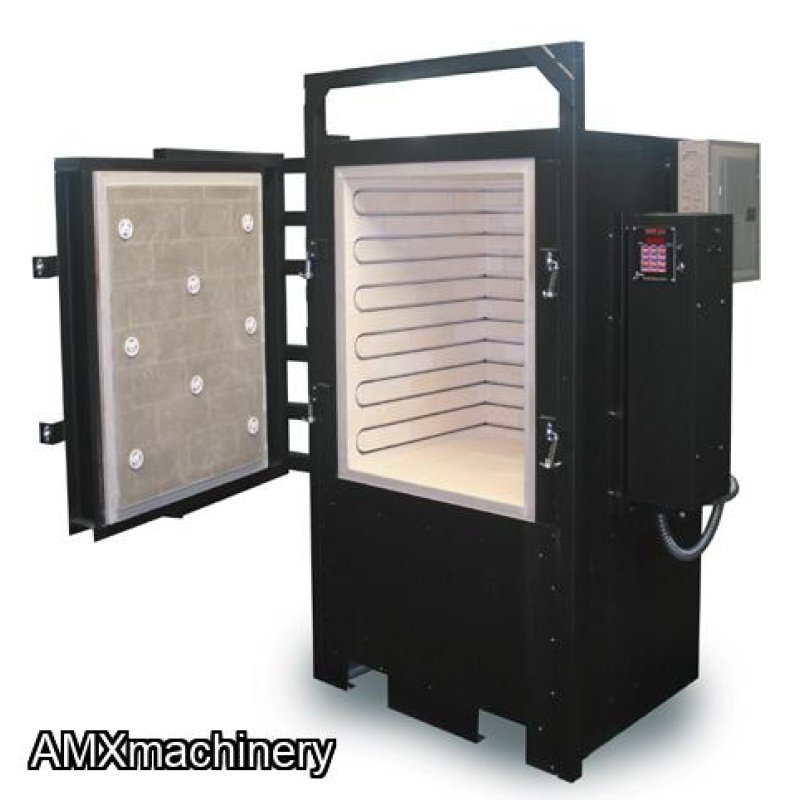

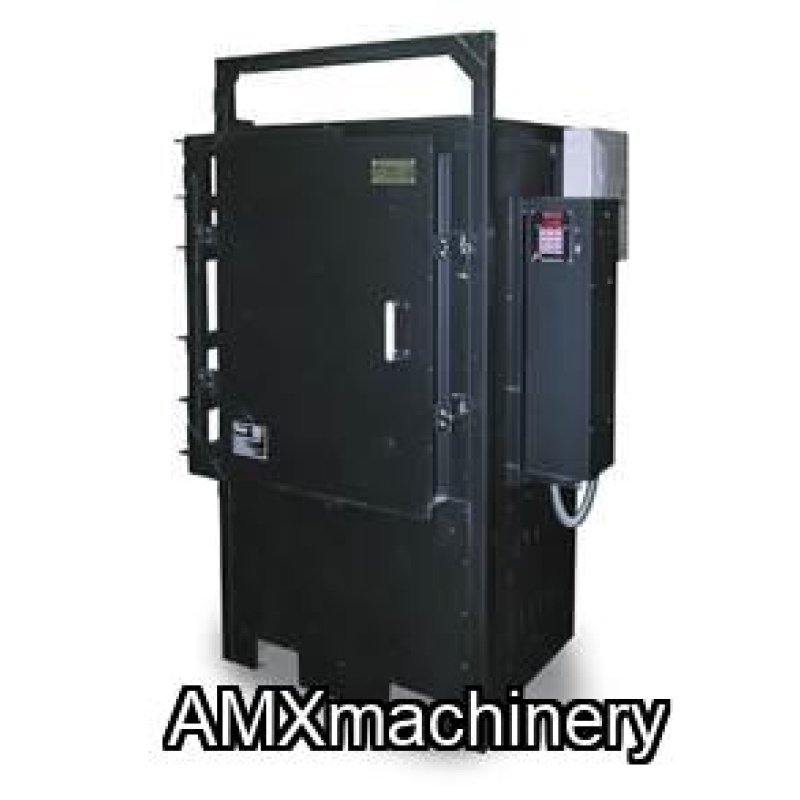

HORNO PARA CERAMICA, VIDRIO, METALES - INDUSTRIAL - 433 LITROS

PARTE: 2PA-SUPERDRAGON – HORNO PARA CERAMICA, VIDRIO, METALES - INDUSTRIAL - 433 LITROS

Nuevo con garantía

Max. Temperatura: 1287 grados centígrados

21,600 Watts, 90 Amps,

Medidas interiores: ancho 686 mm x largo 686 mm x 914 mm

Quick to load

If you fire ware that is similar in size from one firing to the next, you can leave the shelves and posts stacked in the Dragon between firings. Reach into the kiln to remove the ware and reload the kiln for the next firing.

Since you are loading from the side, you can easily see how close the ware is to the kiln walls and the shelf above. Think of how much time this will save you.

Loading sculptures

Loading a tall sculpture into a top-loading kiln requires skill and care to avoid nudging the piece against the kiln wall. Loading sculpture into a front-loading kiln is faster and easier, because you can see what you are doing. There is far less risk of damaging the piece.

Exceptional element life

The Super Dragon exudes power. Its 21,600 watts heat the 27” wide, 27” deep, 36” high interior to cone 10 with ample power to spare. This results in long element life, because the elements do not “struggle” to reach high temperatures. Dropped, recessed grooves seat industrial-gauge elements.

Extra insulation saves energy and lengthens cooling. The 4” thick walls, top and door are made of 3” firebrick backed by 1” of ceramic fiber block insulation. The floor is 4 ½” thick firebrick. The extra insulation not only saves energy but also cools the kiln slowly without having to turn the elements back on. This gives the micro-crystalline structure and color of the glaze sufficient time for full development. Cool slowly to achieve dramatic shifts in glaze color such as iron reds and enjoy the richer look of gas firing. Create breathtaking pottery in the exciting Super Dragon.

Hinged switch box for easy maintenance

The ventilated switch box is generously slotted for air circulation for the long life of the electrical components. Hinged at the bottom, the switch box opens wide for easy maintenance. Open the box in seconds by merely removing two screws at the top. A folding support arm holds the box in the open position. There is plenty of working space around electrical components. A bank of built-in NEC/UL compliant high-amperage fuses protects the kiln and circuit wiring.

Doorway Clearance

The Super Dragon will fit through a 42” doorway.

Order the optional Orton Vent Master, which mounts to the back of the kiln. (Note: Door elements and stainless steel finish are not available on the Super Dragon.)

Super Dragon features

• Saves electricity with extra insulation

• Cone 10, 2350°F

• 3” insulating firebrick and 1” non-organic block insulation in walls, top and door: 4” total thickness

• 4 ½” thick firebrick bottom

• 15.18 cubic foot Interior: 27" wide x 27" deep x 36" tall

• Case temperature at cone 10: 170°F (compared to 400-500°F for standard firebrick kilns)

• UL/CUL & NEC compliant fuses for safety

Specifications

Max. Temperature: 2350F = 1287C

Amps: 90

Phase: 1

Watts: 21600

Nema: Direct

TUV tested to CSA and UL Standard 499: N

CE: N

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type: Sentry Digital 12-key Ceramics

Voltage: 240

Hertz: 60

Kiln Type: Front Loading Square

Sides: 4

Chamber Volume: 15.30 CU.FT. = 433.25 litres

Chamber Width: 27.00 IN = 686 mm

Chamber Depth: 27.00 IN = 686 mm

Chamber Height: 36.00 IN = 914 mm

Outer Size: 51.50W x 43.00D x 78.00H Inches = 1308W x 1092D x 1981H mm

Ship Size: 64.00W x 67.00D x 87.00H Inches = 1626W x 1702D x 2210H mm

Ship Weight: 1550.00 Lbs. = 703.08 Kg.

Doorway Clearance Needed: 42.00 Inches = 1066.80 mm

Ship Method & Notations: This Kiln Ships Via Truck
