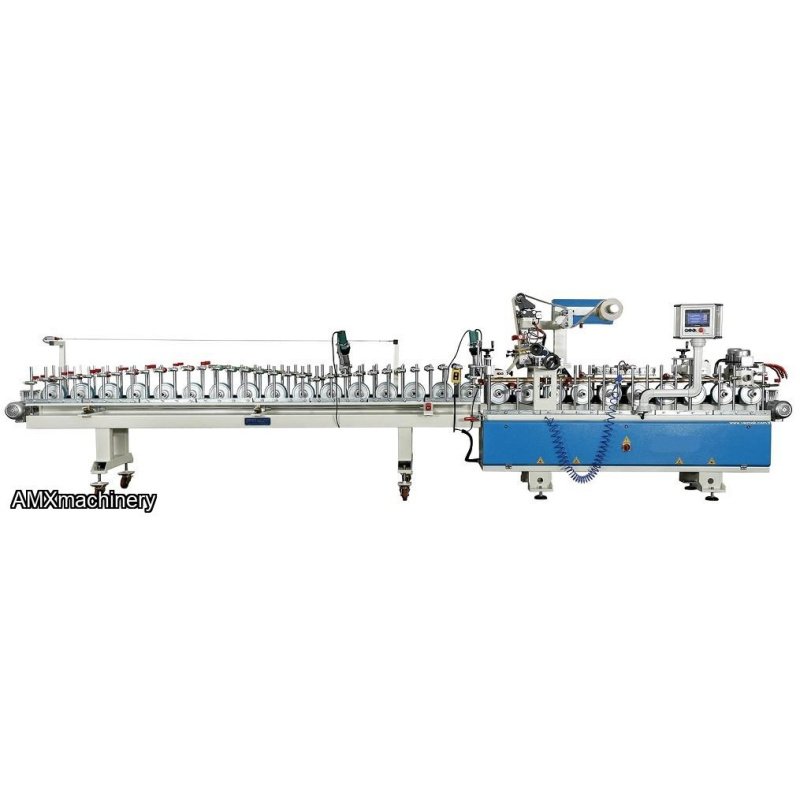

LAMINADORA DE MOLDURAS – PUR HOTMELT – CON ENGOMADORA

PARTE # 4VE-VP350-KL6.5-W1C – LAMINADORA DE MOLDURAS – PUR HOTMELT – CON ENGOMADORA

Nueva con garantía

Hecha en Europa

Laminadora

Sistema seteado rápido

Engomadora

Para recibir cotización formal y detallada avísenos

NO          STANDARD SPECIFICATIONS                                                                                           QTY

1              2,5m main body 4m cassette                                                                                                                 1

2              Ø 200X15 rubber coated conveyor rollers                                                                                                 46

3              Ø 200X15 Aluminum rollers (under infrared heaters)                                                                                6

4              Air blowing system to remove dust from MDF, PVC profile surfaces                                                         1

5              Bracket system which suitable for polyurethane systems                                                                          1

6              Foil edge control unit                                                                                                                                  1

7              Ø80x700mm silicone coated top pressure roller                                                                                        4

8              2000 W infrared infrared profile heaters                                                                                                     2

9              Folio feeding system with single rolling and brake system; pneumatic 3 inch or 6 inch (optionally)          1

10            3400 W self-powered hot air gun (Made in Turkey)                                                                                    4

11            22x430 mm chrome coated vertical holder                                                                                                96

12            22x250 mm chrome coated horizontal holder                                                                                           110

13            Galvanized double hole unit                                                                                                                      110

14            Single hole unit                                                                                                                                           15

15            Pressure rollers with different hardness and sizes which is suitable for all models of profile                   110

16            Various radius silicone rollers                                                                                                                     10

17            On/Off PLC control panel for quick easy setup                                                                                            1

18            89-336 EEC, CE ve UL Standartlarına uyumlu elektriksel ve mekaniksel donanım                                    1

                                                           TECHNICAL DATA

TYPE OF FOİL                                            : PVC, High Gloss PVC, PP, Finish Foil, Paper, Veneer, Laminate 0,20 (all materials in roll)

PROFİLE TYPE                                           : PVC, Aluminum, MDF and all kind of wooden profiles

MİN-MAX FOİL WİDTH                                : 20 mm-350 mm

PROFILE WIDTH and HEIGHT                   : 15–350 mm , 85 mm

COATİNG SPEED                                        : 10–40 m/dk

GLUE                                                            : POLYURETHANE HOT GLUE (PUR)

TOTAL POWER                                            : 20 kW

VOLTAGE,FREQUENCY,AİR PRESSURE  : 380 V , 50 Hz , 6 Bar

WİDTH X LENGTH X HEİGHT X WEİGHT  : 750 x 2500 4000 x 2000 mm , 1900 kg

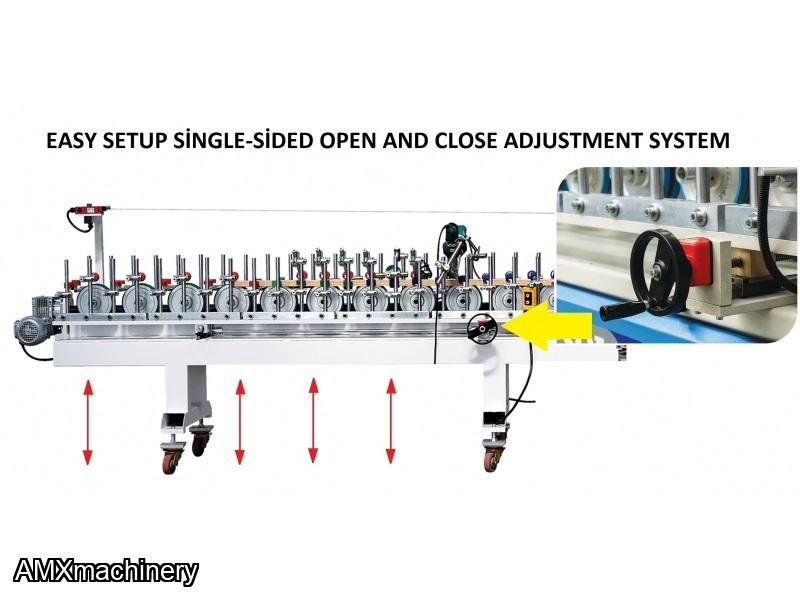

AKS 350 L4-OD easy setup single-sided open and close adjustment system 4m

IN-TECH 350 WRAP ISN 350 SLOT HEAD IGM 20 DRUM MELTING 3 METER HOSE
