Identificador: 2866
Abierta
Descripción

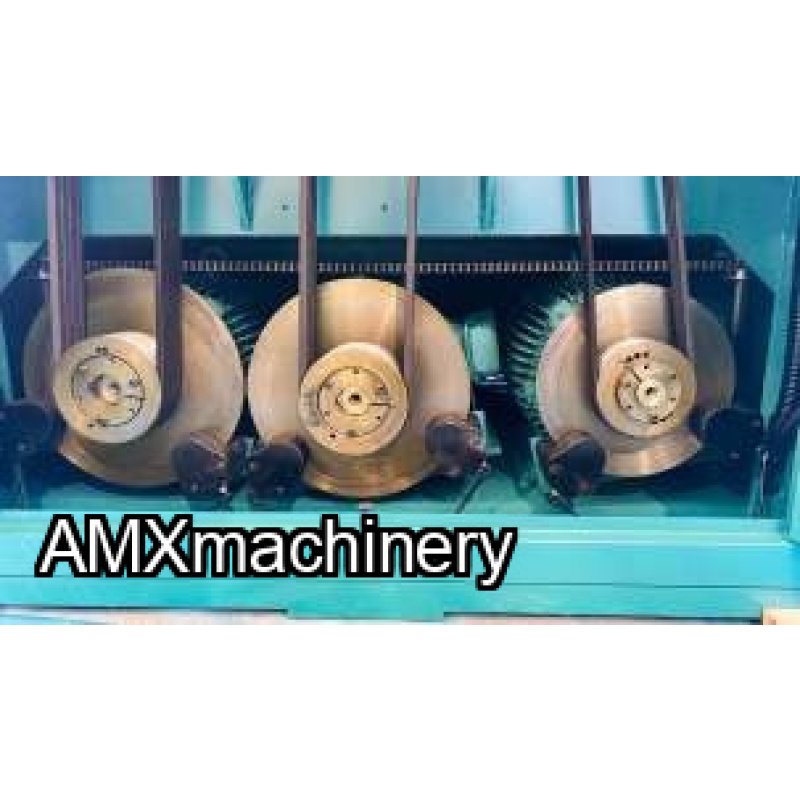

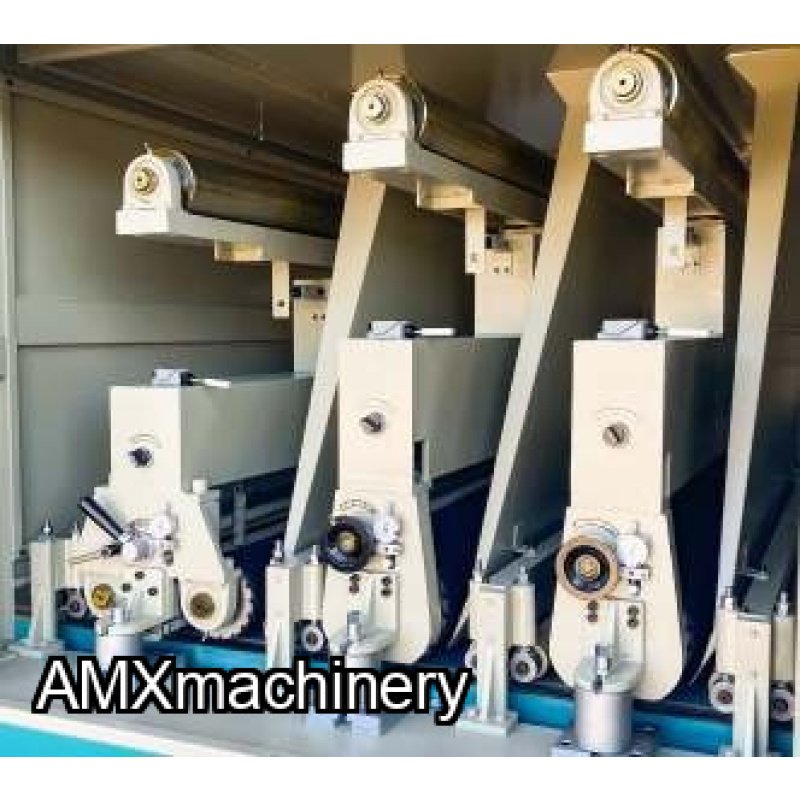

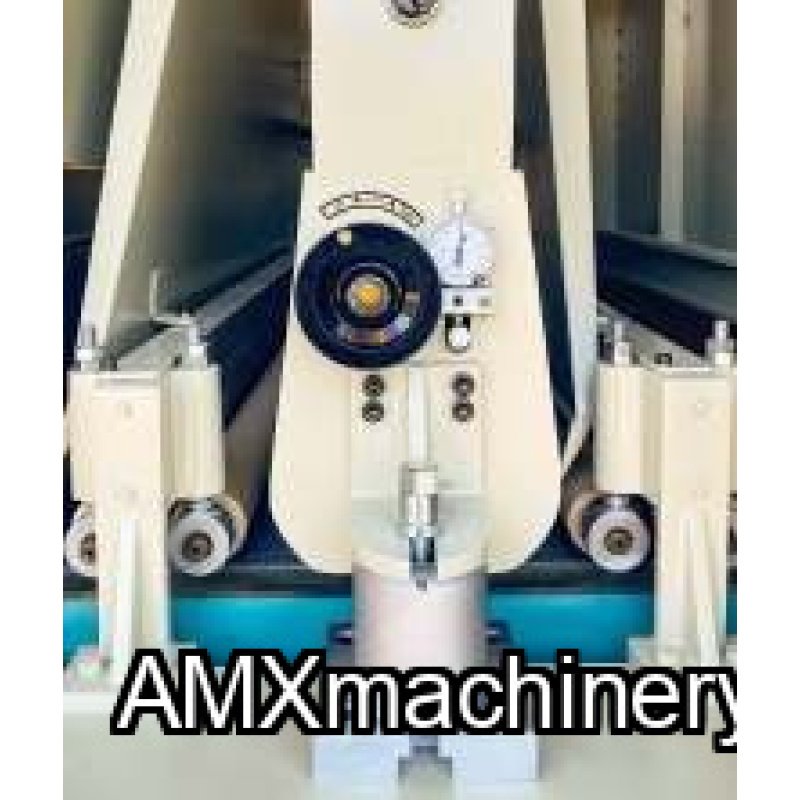

PARTE: 2EX- XS-3P52 - LIJADORA DE BANDA ANCHA – 3 BANDAS
– 52” ANCHONueva con garantía
75″ Belt Length
Over thickness safety device
Infeed bed rollers
Digital thickness controller

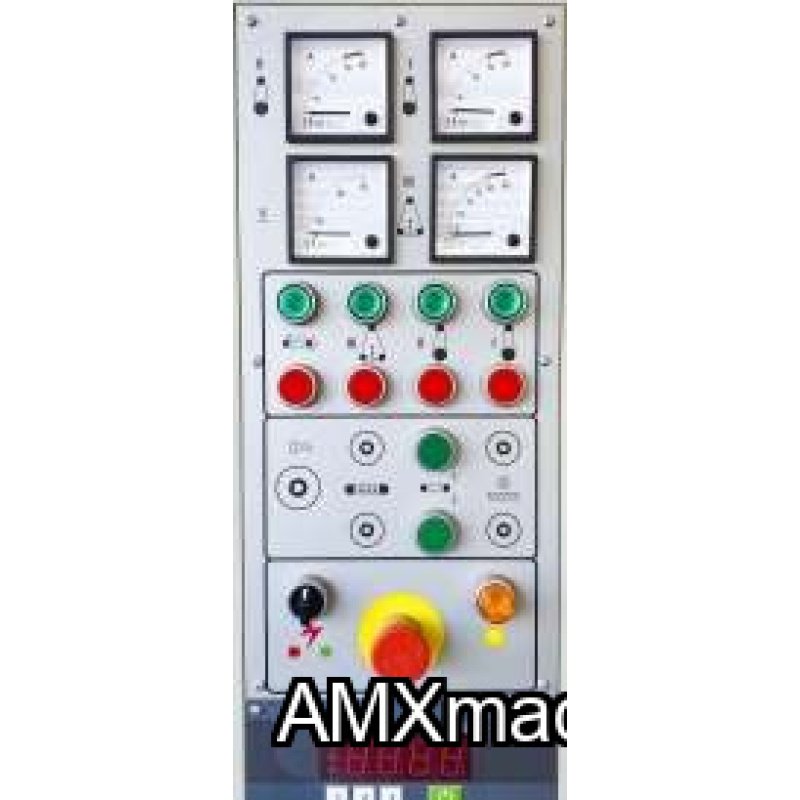

Individual amp meters
Disc brakes on sanding heads
Telemecaique electrics
Camozzi pneumatics
Variable speed drive system
Specifications:
Horsepower: 30/30/25 HP
Voltage: 230V or 460V Optional
Phase(s): 3PH
Belt Size: 52" x 75"
CFM Requirement: 6500
Main Motors: 30 / 30 / 25 HP
Feed Motor: 3 HP
Elevation Motor: .5 HP
Contact Drum Size: 8" / 8" / 5"
Conveyor Speed (ft/min): 15 - 50
Max Thickness: 6"
Min Thickness: 1/8"
Width: 52"
Head Count: 3
Amps (220V / 460V): 233A / 117A
Weight: 8100
