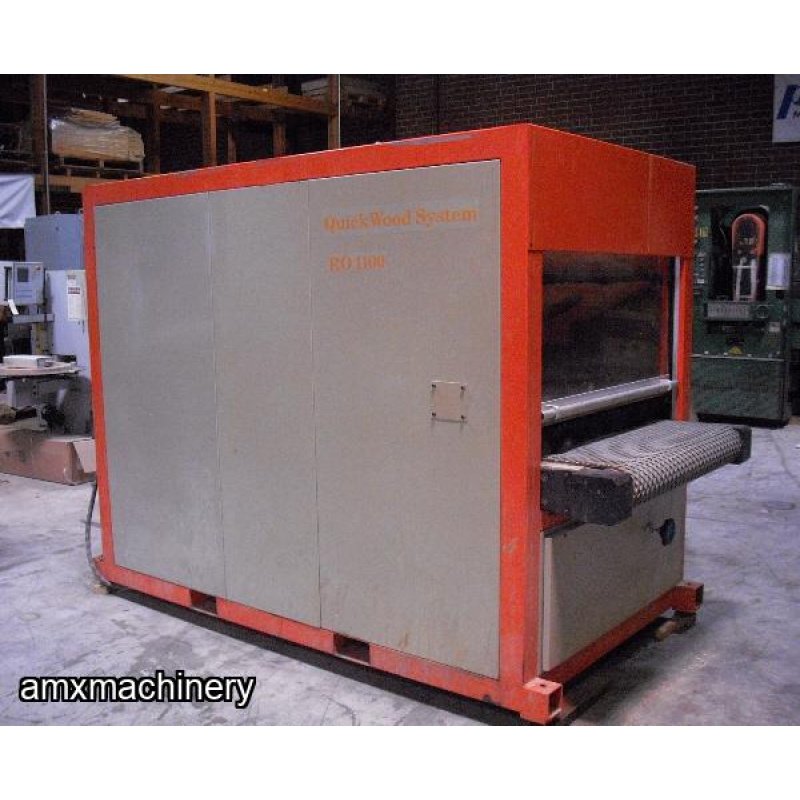

LIJADORA DE CEPILLOS QUICKWOOD

PARTE: 11799 – LIJADORA DE CEPILLOS – QUICKWOOD

GOOD CONDITIONS

- MODEL: RO-1100

- (460/60/3 electrics)

- 44" wide x 4" thick max. work-piece dimensions

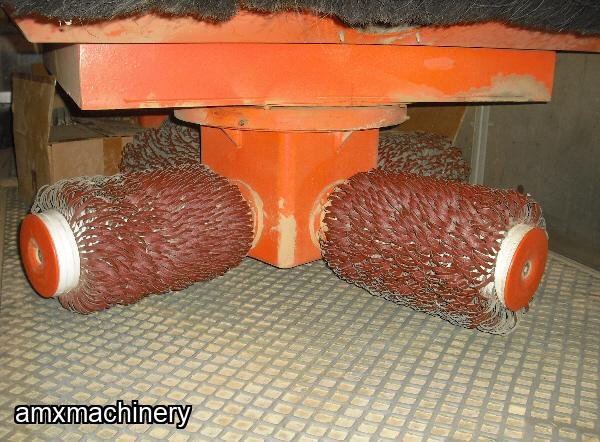

- (2) counter-rotating "carrousels" with (4) rotating sanding heads each

- (8) rotating "hex" spindles can be equipped with a variety of materials

- (3 to 16) RPM of carrousel and (300 to 1,200) RPM variable spindles

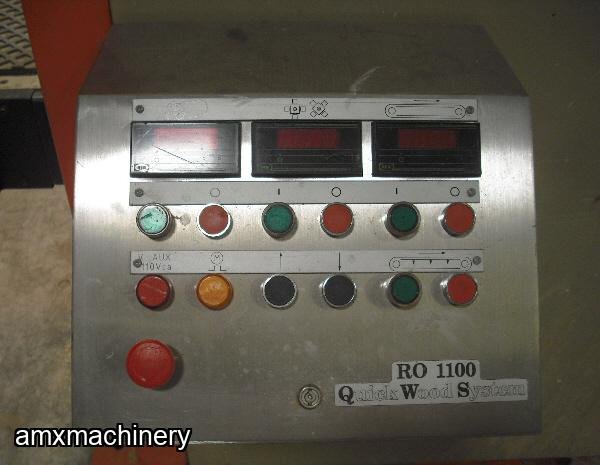

- Electronic digital speed readouts

- (33) 5" diameter "quick discs" per spindle, (264) total

- 6 HP main motors, 1.5 HP rotation motors

- 2.5 HP feed conveyor belt motor with .5 HP conveyor up/down motor

- (6 to 46) FPM feed speeds, (variable speed pulley)

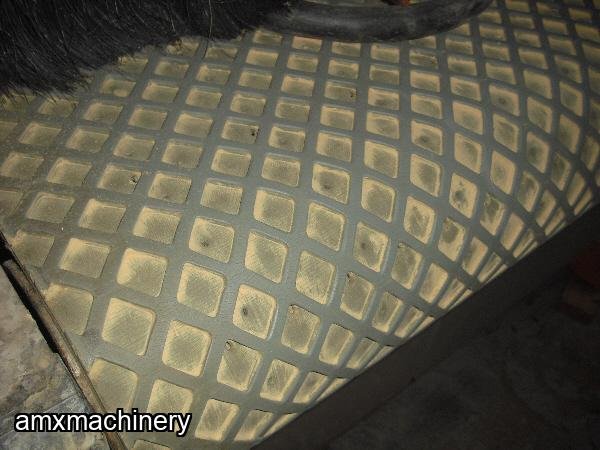

- Vacuum style feed conveyor with 10 HP vacuum turbine motor

- (4) 6" diameter dust outlets, (6,650 cub. Ft./hr required)

- 6' x 10' x 7' approximate overall dimensions

- Weighs approx. 3,500 lbs.
