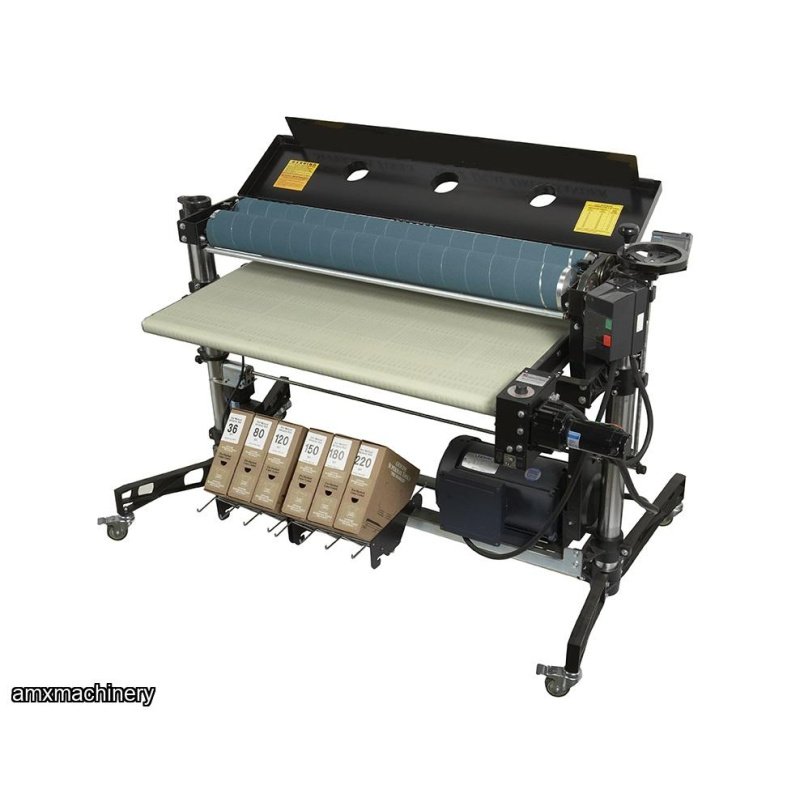

LIJADORA DE TAMBOR 37"

Sanding Capacity:

Maximum Width (in): 25, 37, 50
Minimum Length (in):  3-1/2
Maximum Thickness (in): 25″ model: 6
37″ & 50″ models: 12
Minimum Thickness (in): 1/32

Dimensions HxWxD (in):

25″ model: 43 x 46 x 31
37″ model: 43 x 58 x 31
50″ model: 50 x 71 x 31

Drum (in): (extruded aluminum)

25″ model: 5 x 25
37″ model: 5 x 37
50″ model: 5 x 50

Drum speed:

1740 RPM

Dust Hood: (Steel hood, hinged at back

25” model: one (2) 4” vacuum port, min. 1000 CFM recommended
37″ & 50″ models: (3) – 4″ vacuum ports, min. 1800 CFM recommended

Ball bearings (1”):

4, sealed and permanently lubricated

Conveyor Motor:

25″ & 37″ models: 100 in. -lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM
50″ model: 220 in.-lb. torque, direct drive D.C motor, ranged variable, 0-15 FPM

Drive Motor (TEFC):

25″ & 37″ models: 5 HP
50″ model: 7-1/2 H

Power Requirements:

208-230V, 60HZ; 1 Ph, 30 amp service; 3 Ph 20 amp service

Shipping Weight (lbs):

25″ model: 475
37″ model: 525
50″ model: 820
