MESA DE TIJERA 36" X 72"

PARTE: 2SW-LS4-36 - MESA DE TIJERA - PLATAFORMA 36" X 72"

Nuevas con garantía

Hechas en USA

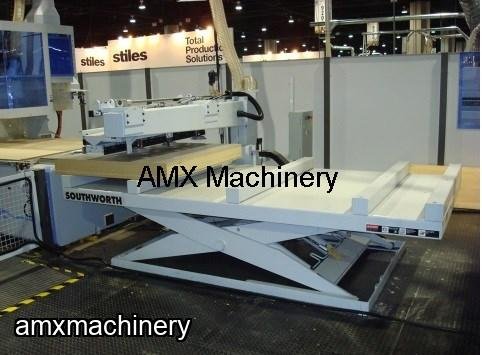

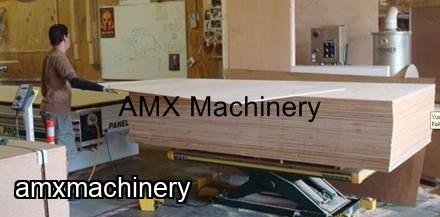

Medidas y capacidad para manejar 1 bulto de MDF, Aglomerado, etc. a la vez para alimentar maquinaria para la madera,

CAPACITY: 4,000 lb. uniform load.

PLATFORM:  36" x 72" smooth plate with 4" Fork Risers.

BASE FRAME: 24" x 48" with lag plates and maintenance device.

LOWERED HEIGHT:  6-3/4"

VERTICAL TRAVEL:  36"

RAISED HEIGHT:  42-3/4"

ELEVATING TIME: 44 seconds (approx.)

LOWERING TIME:  Adjustable with pressure compensated flow control.

POWER UNIT:  Internally mounted with 1.0 HP TENV electric motor (includes a power cord, approx. 9' in length ) and .85 GPM hydraulic pump, valving, and reservoir filled with oil.

PRIMARY VOLTAGE:  115/1/60

CONTROL VOLTAGE:  115/1/60

CONTROL NEMA:  1 footswitch with safety cover. Includes 10 ft of straight cord.

ACTUATION: Two 3-1/2" low pressure cylinders with chrome plated rod, power up/gravity down.

BUSHINGS:  All pivot points equipped with Teflon lined bushings. Leg rollers have Southworth exclusive wear indicators.

FINISH:  Dark green self-priming machinery enamel with platform painted beige.

WARRANTY: Parts will be covered for two years upon receipt and approval of application information (see Southworth warranty for details).

WEIGHT: 900 lb. (approx.) - Freight class #70
