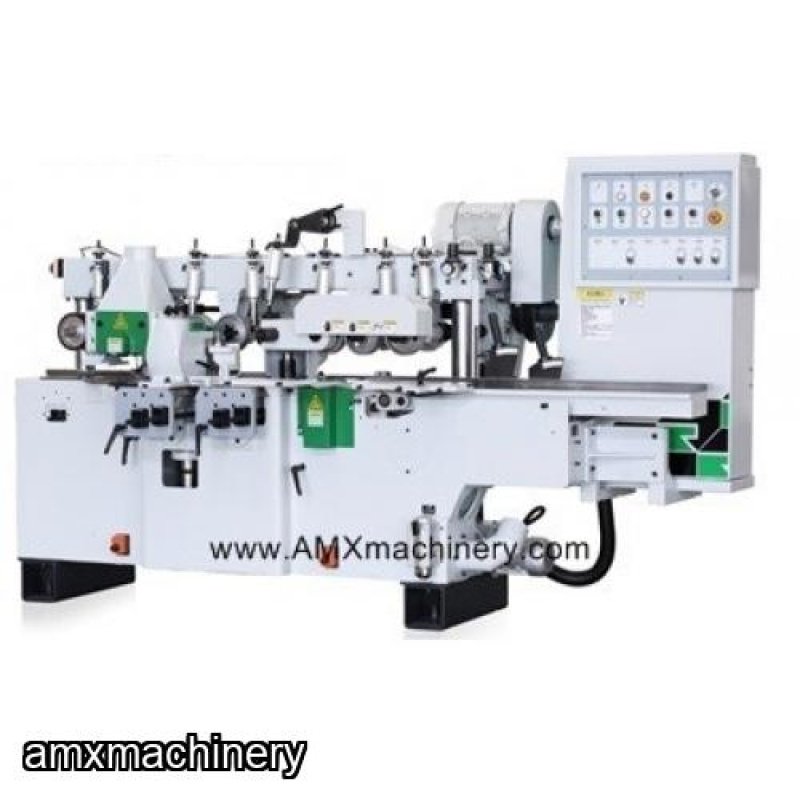

MOLDURADORA 4 CABEZALES

PARTE # 32RM-M413 – MOLDURADORA – 5” ANCHO – 4 CABEZALES

NUEVA CON GARANTIA

CARACTERISTICAS

220V/60HZ/3PH

1) 1st bottom spindle:3kW, Φ40mm, 6000 RPM – 4 HP

2) right spindle: 3kW, Φ40mm, 6000 RPM – 4 HP

3)  left spindle: 4kW, Φ40mm, 6000 RPM – 5HP

4)  top spindle: 4kW, Φ40mm, 6000 RPM – 5 HP

Feeding motor: 3Kw – 4 HP

Stepless variable feed speed 10-33m/min

Feed beam :0.75kW

Working width: 20-130mm

Working thickness: 8-100mm

Individual motor to each spindle to ensure maximum cutting(Standard)

Hard chrom treatment has been adopted for the durability of the work table surface(Standard)

Equip with short-piece gear box for the shortest length of 180mm

Lengthened-type side pressure roller at the infeed entrance for effectively prevent wood running deviation

Multi-section pneumatic adjustment is adopted to the conveying pressure system
