Identificador: 240
Abierta
Descripción

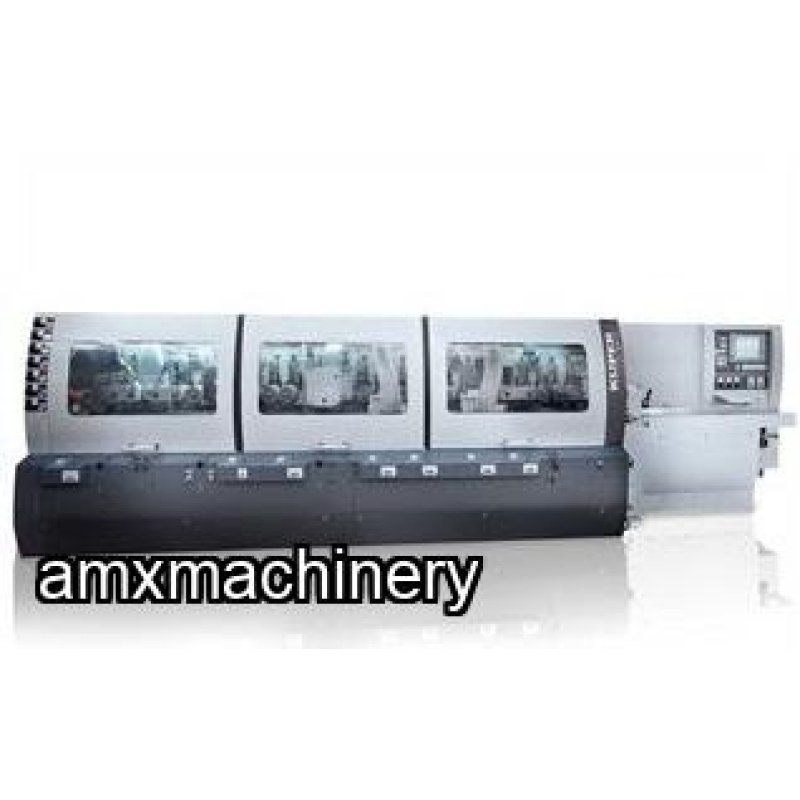

PARTE # 4KU-SWT-HL6 – MOLDURADORA AUTOMATICA – 6 CABEZALES – JOINTERS EN CABEZALES 5 6 - KUPER
Nueva con garantia
Hecha en Alemania
Llamenos para recibir toda la informacion y una cotizacion formal
With optional jointer device - the high performance moulder.
Feed speed up to 80 m/min.
optional with straight / profil jointer
Working width up to 400 mm
High Performance Machine with optional Jointer Device.
Do you need more performance power for your industrial operation purposes? Then our KUPER SWT HL is the proper machine for you. With feed speeds up to 80 m/min. and the impressive spindle motor power up to 37 kW this is the most powerful machine in our SWT-Family. This high performance machine is reliable and durable. In addition it offers numerous individual options. We propose you to optimize your operating procedure with the powerful KUPER SWT HL.
Advantages at a glance:
- Practical quick-action lock system ProLock®
- Hard-chromium plated infeed and machine tables
- Pneumatically damped pressure shoe downstream of the top shaft, improved dynamics due to linear guides
- Continuous feed, power transmission via several worm drives and cardan joints
- Two driven double mounted infeed and outfeed rollers in the machine table
- Infinitely variable feed speed control via frequency converter, flexible adjustment by potentiometer
- Electrical height adjustment of the feeding device carrier
- Electronic start/stop system for all spindle motors
- Swivel mounted feed cartridge in front of the right-hand spindle for easy tool changing
- Axial adjustment of the vertical spindle 20 mm
- Lubricant pump for table lubrication
| Basic equipment | Options |
Working width | 5 – 230 mm | 10 – 400 mm |
Working height | 10 – 150 mm | 5 – 230 mm |
Feed speed | 6 – 36 m/min. | 2 – 80 m/min |
Axial adjustment path | horizontal spindle 40 mm vertical spindle 80 mm | horizontal spindle 60 mm vertical spindle 100 mm |
Spindle arrangement | 1 – 10 spindels | 1 – 10 spindels |
Spindle power rating | all 7.5 kW | bottom up to 37 kW |
Universal spindle | 7.5 kW | up to 11 kW |
Saw spindle | 11 kW | up to 45 kW |
Spindle rotational speed | 6,000 U/min. | 2,000 – 9,000 U/min. |
Spindle diameter | 40 mm | 50 mm |
Tool diameter | first bottom spindle 125 – 180 mm | bottom up to 250 mm |
Profile-groove depth | up to 20 mm | up to 35 mm |
