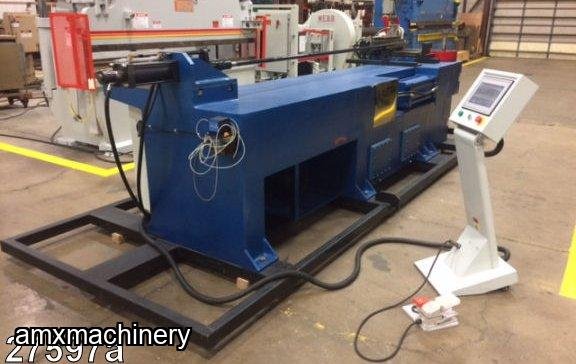

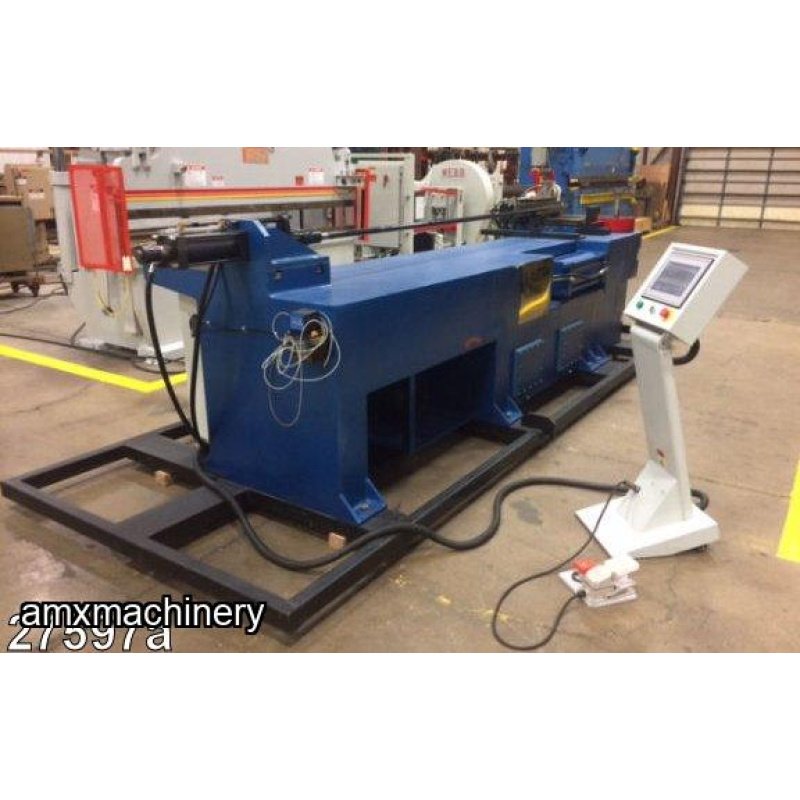

PARTE: 12173 - DOBLADORA DE TUBOS – HIDRAULICA - CAPACIDAD DIAMETRO 4-1/2”

Usada – Buenas condiciones, Revisada y Checada

Capacities:

Non-ferrous tubing:      4.5" x .17" - Y.P. to 25,000 PSI

Mild steel tubing:          4.5" x .11" - Y.P. to 35,000 PSI

Stainless steel tubing:  4.5" x .065" - Y.P. to 60,000 PSI

Steel pipe:                    3.5" x .24" schedule 80

Maximum radius:          18"

Tube length over mandrel:  10'

Maximum working pressure:  2200 PSI

Bending arm speed:         3 RPM

EQUIPPED WITH:

                            Hydraulic mandrel extractor

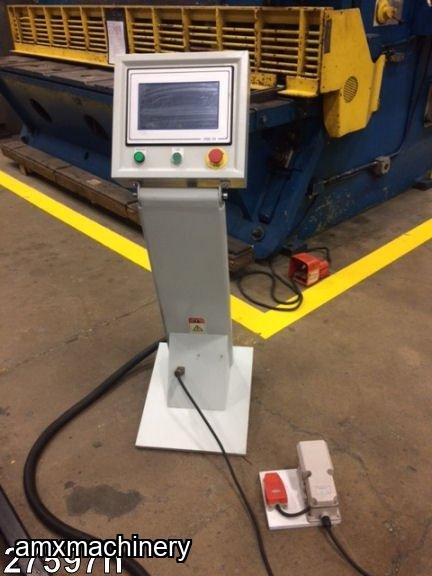

                            XHQG-30 PLC touch screen control with

                            bending data storage up to 50 parts

                            with 12 bends - jog - step -

                            auto function selection

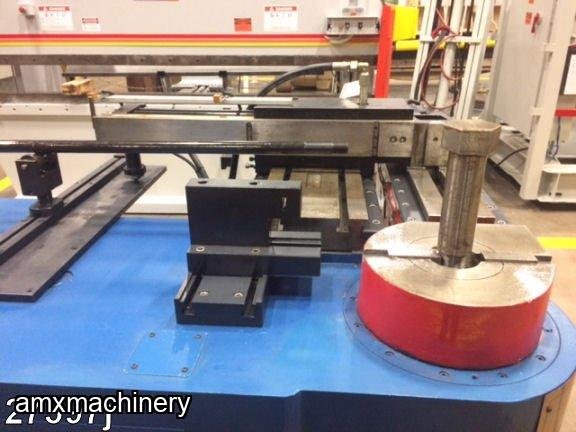

                            Mandrel rod holder assembly

                            Pressure die assist, pressure die holder,

                            wiper die holder & clamp die holder

                            Swinging arm safety stop

                            Automatic oil lubrication

                            Hydraulic pump, driven by

                            20 HP 220 volts 3 ph 60 Hz. motor

Weight approx. 13,000 lbs.

Overall dimensions approx. 207" L-R x 73" F-B x 57" H
