Identificador: 1643
Abierta

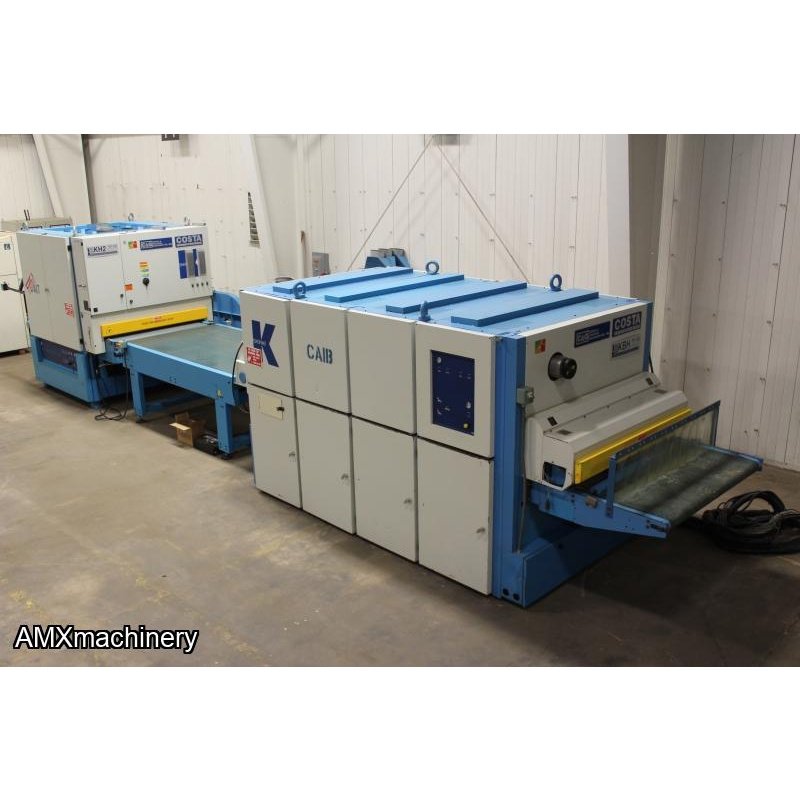

PARTE: 12346 – LIJADORA BANDA ANCHA – 4 LIJAS - SUPERIOR E INFERIOR – 52” ANCHO - COSTA
AMXmachinery
Descripción
PARTE: 12346 – LIJADORA BANDA ANCHA – 4 LIJAS - SUPERIOR E INFERIOR – 52” ANCHO - COSTA
USADA - BUENAS CONDICIONES
La máquina se retiró trabajando en buenas condiciones
Width Capacity: 53"
Sanding Belt Size: 53" x 103"
Machine #1
Bottom Head #1: ~10" Diameter Grooved Steel Drum, 47 HP, 460v
Bottom Head #2: ~10" Grooved Rubber-Covered Contact Drum, 47 HP
Bottom Head #3: ~10" Grooved Rubber-Covered Contact Drum, 32 HP
Bottom Head #4: Finishing Platen, 23 HP
Machine #2
Top Head #1: ~10" Diameter Grooved Steel Drum, 47 HP, 460v
Top Head #2: ~10" Grooved Rubber-Covered Contact Drum, 47 HP
Top Head #3: ~10" Grooved Rubber-Covered Contact Drum, 32 HP
Top Head #4: Finishing Platen, 23 HP
PC User-Interface for Each Machine
96" Belt Conveyor in Between Machines
20 HP Vacuum Blower for Each Machines Vacuum Bed
Year: 2006
