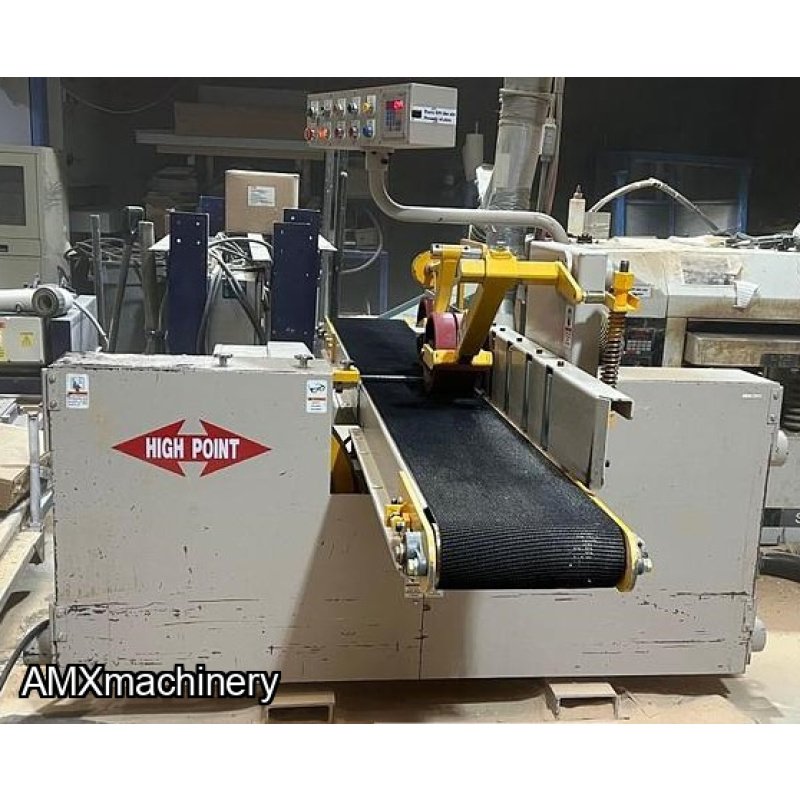

PARTE: 12613 - REASERRADORA HORIZONTAL - 1 BANDA – 11-3/4” ANCHO X 10” ALTO

PARTE: 12613 - REASERRADORA HORIZONTAL - 1 BANDA – 11-3/4” ANCHO X 10” ALTO

Usada - Buenas condiciones

HIGH POINT

MODELO: HP-11

MFG. 2004

Motor powered set works for accurate saw wheel elevation.

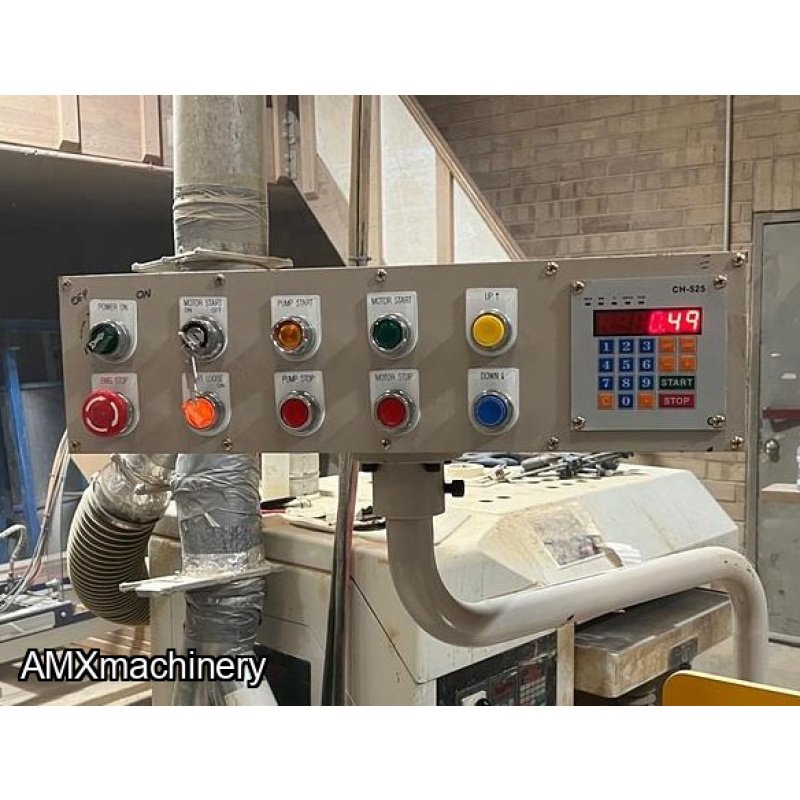

Digital position controller permits accurate saw wheel height positioning.

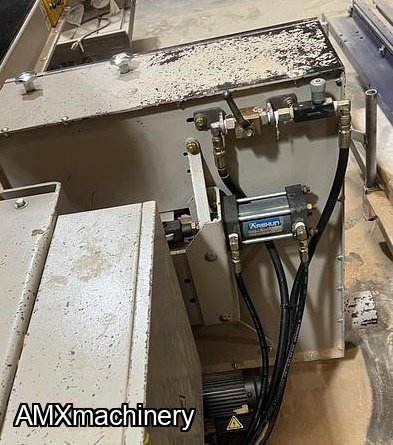

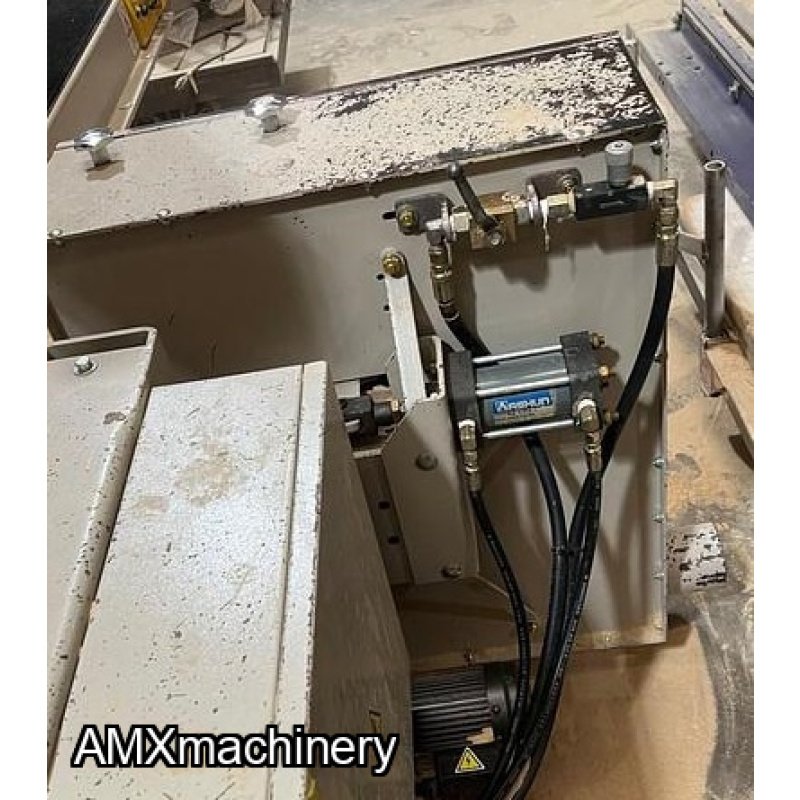

Automatic blade tension is controlled by hydraulic cylinder.

Variable feed speed by hydraulic motor drive.

The big pressure roller is air cylinder loaded to hold wood down firmly.

1.    Saves Time and labor costs

2.    Pneumatic pressure roller infeed

3.    Digital position controller permits accurate saw wheel height

4.    Easy to operate and set up

Feed speed: 4-27m/min (13-90FPM)

Max. cutting height: 250mm (10”)

Max. cutting width: 300mm (11 3/4”)

Min. workpiece length: 400mm; 205mm with extension set

Max. workpiece length: 580mm

Distance from blade to conveyor: 4-125mm

Saw wheel Diameter: 711.5mm (28”)

Saw wheel width: 22.7mm (1”)

Saw blade size:  4265 x 27mm (168” x 1’)

Blade speed:  2816m/min (9240FPM)

Saw Motor:  15kW(20HP)

Feed unit:  0.75kW(2HP) gearbox motor with frequency converter

Cooling system Oil mist

Blade tensioning

Hydraulic system

   Motor for blade positioning: 0.18kW(1/4HP)

   Dust post:  Ø4” x 4

   Table height:  902.5mm

   Machine weight:  951kgs

   Machine dimensions:  2835 x 2052 x 1678mm (LxWxH)
