Identificador: 2649
Abierta
PARTE: 12614 - REASERRADORA HORIZONTAL - 1 BANDA – 12” ANCHO X 12” ALTO
AMXmachinery
Descripción

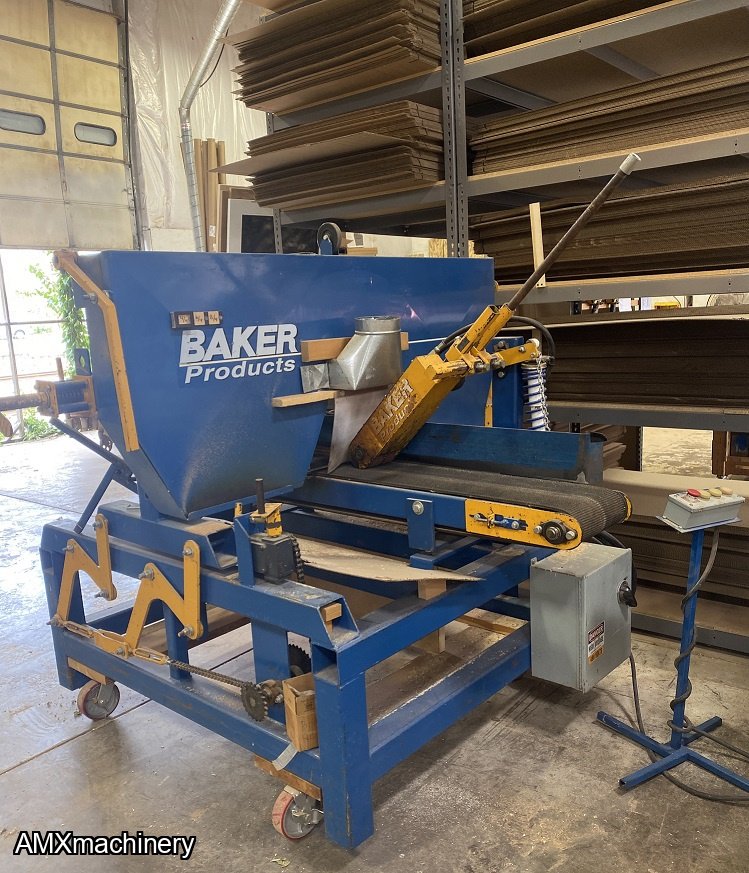

PARTE: 12614 - REASERRADORA HORIZONTAL - 1 BANDA – 12” ANCHO X 12” ALTO
Usada - Buenas condiciones

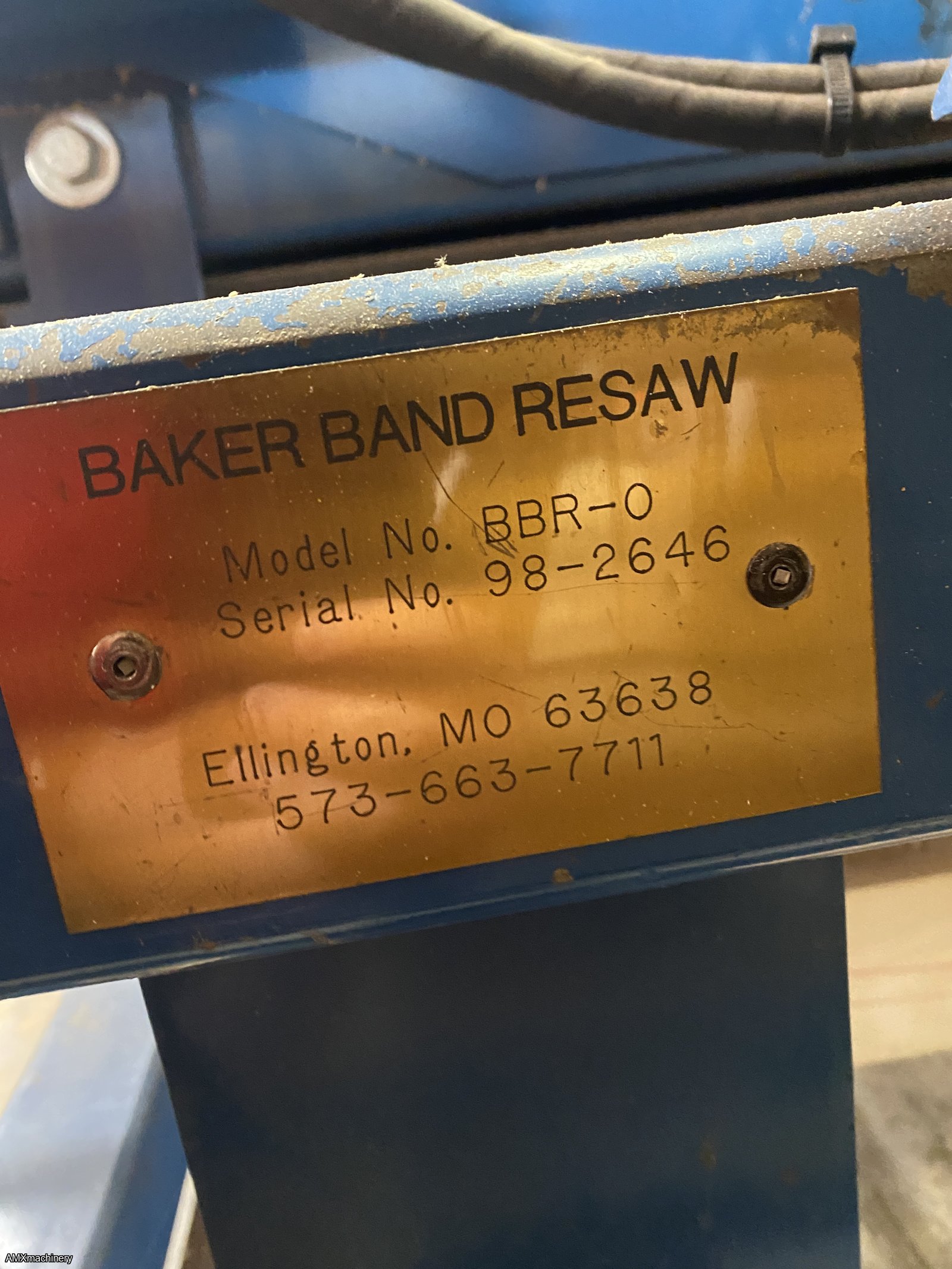

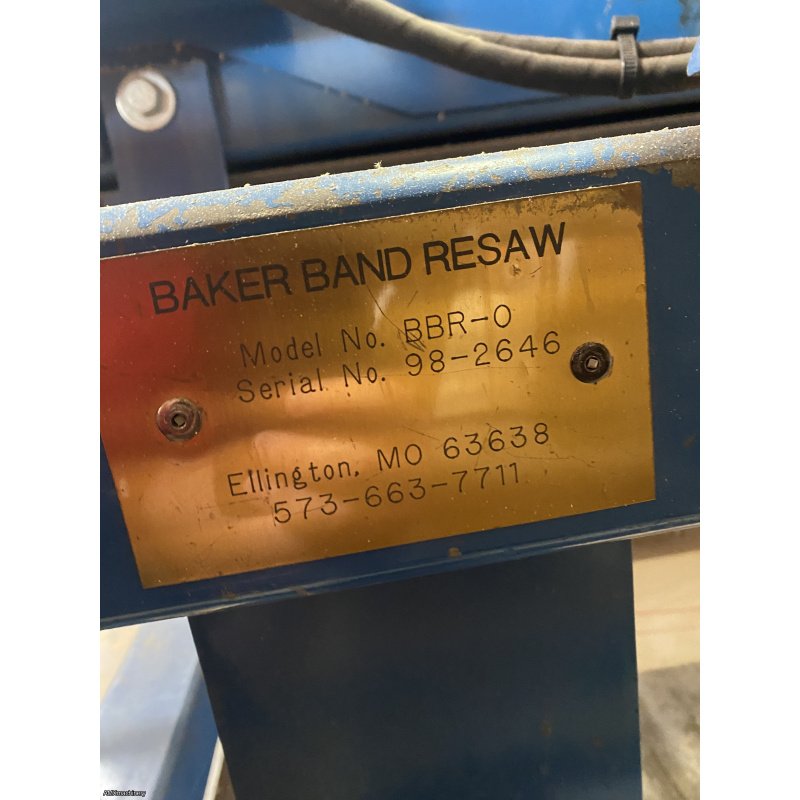

BAKER
BBR-0 / ABX

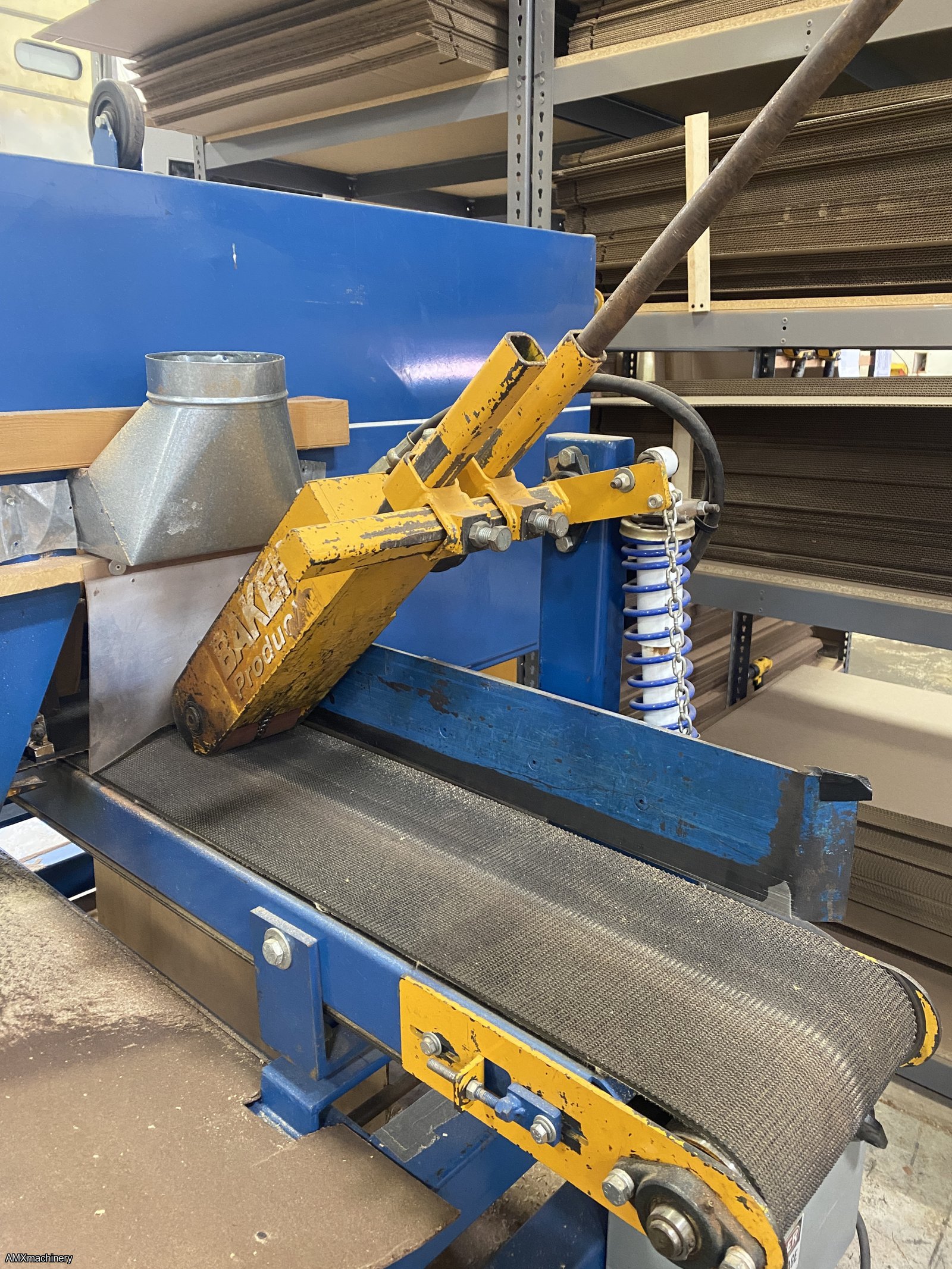

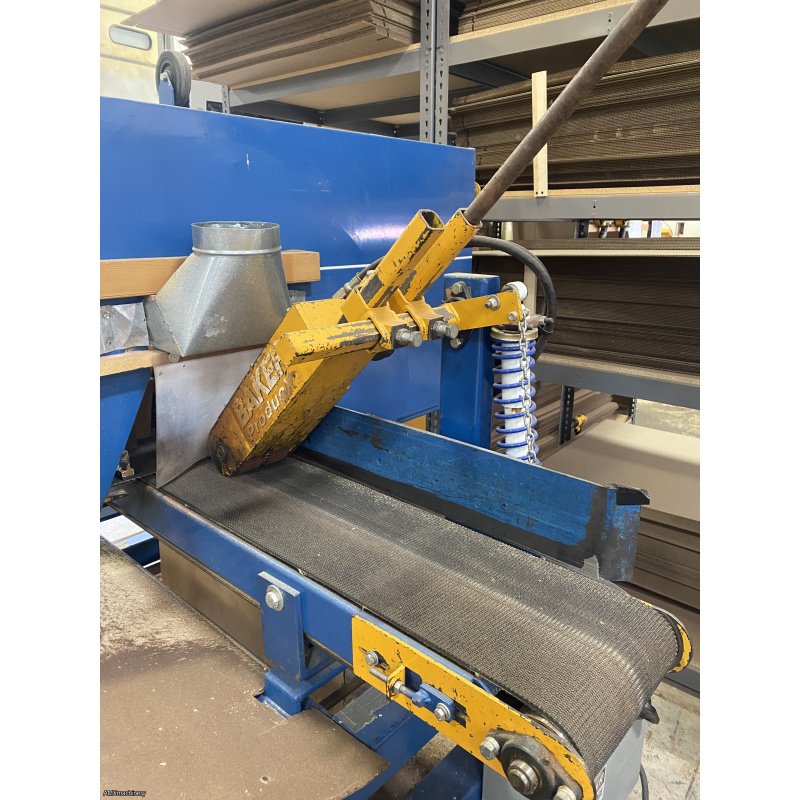

Features the frame and headrig of our "BX" model, but use an "AX" model conveyor belt. This means that the head-rig can be adjusted up or down and the conveyor stays at a fixed height.
Because the conveyor belt stays at a fixed height, it is easier to interchange and integrate with other material handling systems in your facility. This versatile band resaw is perfect for those who need a space saving high production band resaw.
Accepts material up to 12" x 12" and uses a 12"-wide conveyor
Main Drive Motor: 30 HP TEFC
Variable feed speed from 0-95 feet (0-29 m) per minute
Versatility: Rip 2-sided slabs; size and resaw 3-sided cants, 4-sided cants, and boards
28" Dynamically balanced solid metal band wheels
4" diameter dust outlet requires 500 CFM
Dimensions & Weight:
Length: 84 in
Width: 93 in
Height: 68 in
Weight: 2,000 lbs
