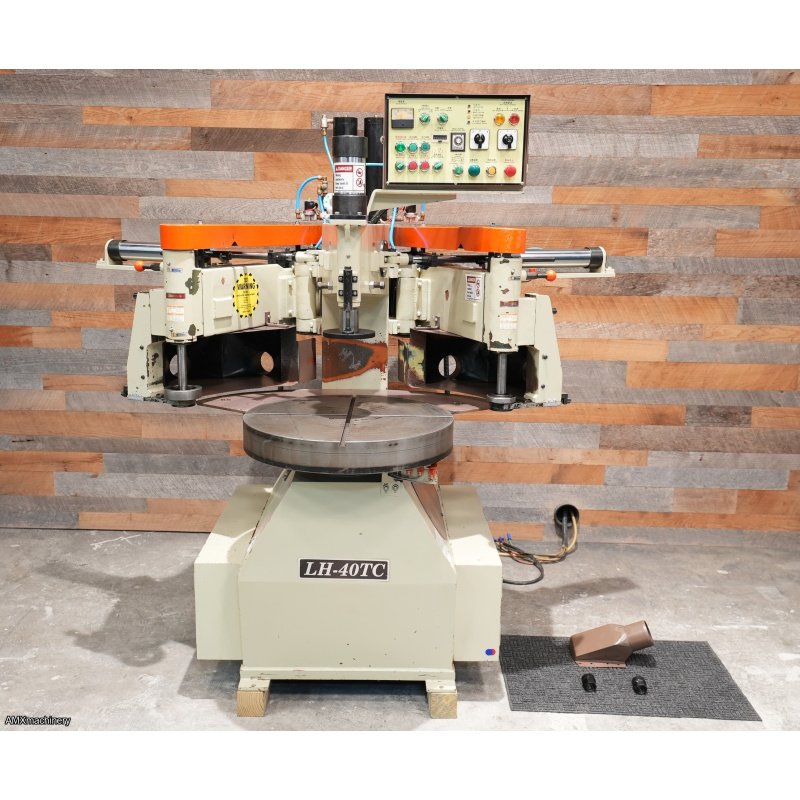

PARTE: 12631 – TROMPO AUTOMATICO – REDONDO – LOBO
USADO – MUY BUENAS CONDICIONES

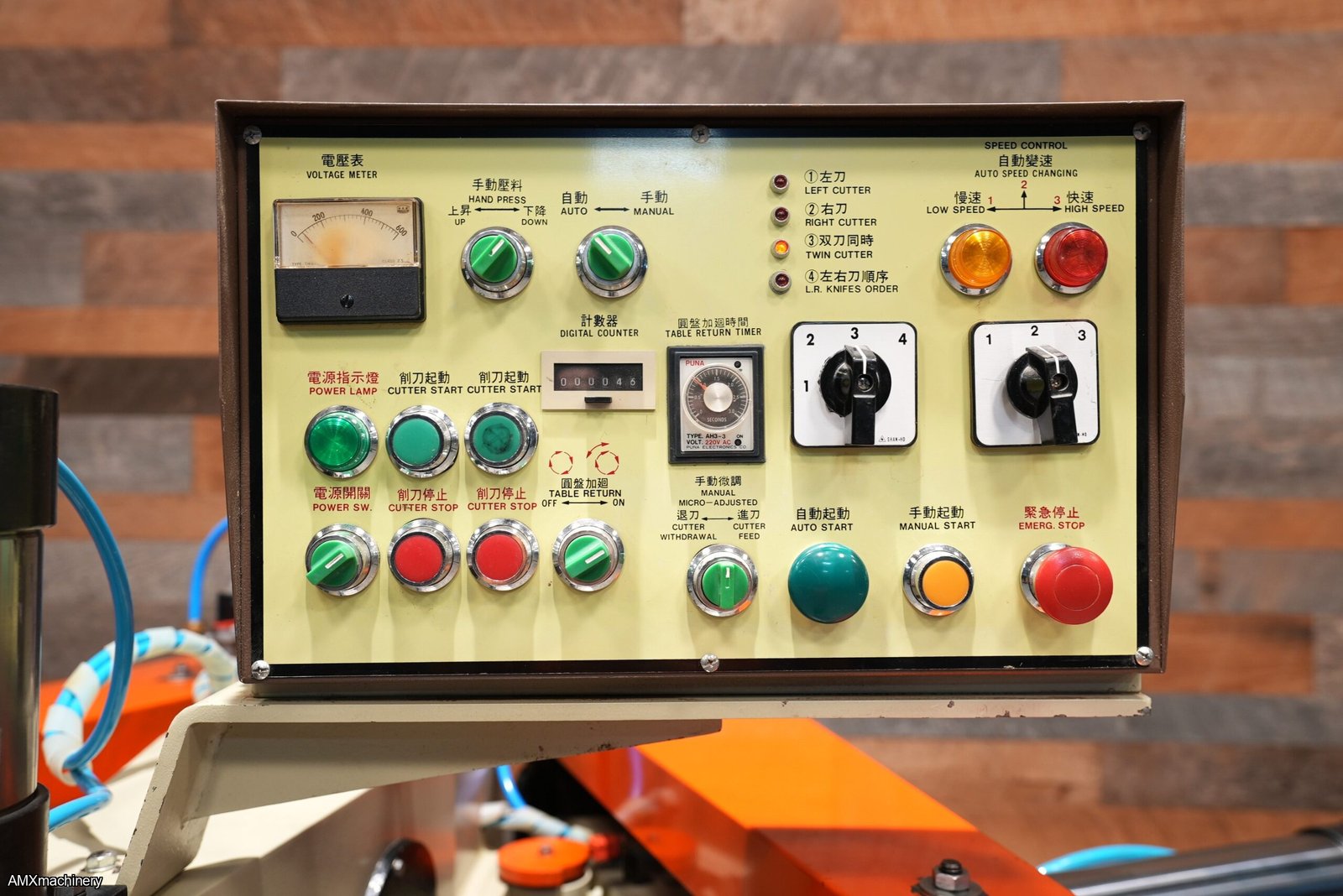

The only issue we can find is the one top display light is out.
Everything else is functional.
It features dual 1-1/4″spindles that are 5-5/8″ tall.
This fully functional machine has been fully cleaned, checked, and is ready to work from the time you receive it.

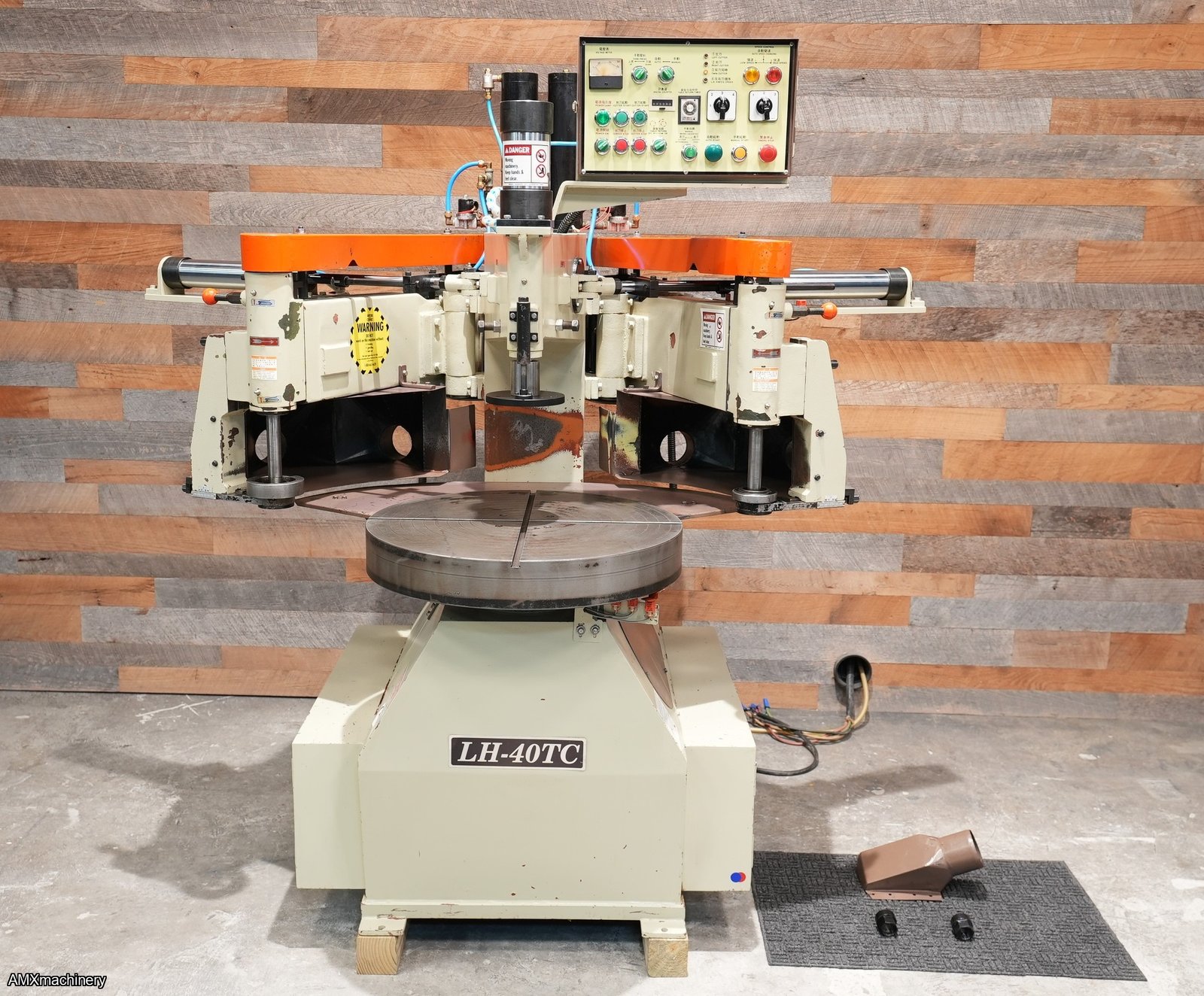

Model LH-40-TC
Cutting capacity 3″ ~ 40″
Max. Cutting Length to Width Ratio 15″ * 36″
Table Diameter 27″
Table Speed 1.5-6 RPM
Spindle Speed 9,000 RPM
Spindle Diameter 1-1/4″
Spindle Height 5.5″
Max. Cutter Diameter Range 200mm
Follower Wheel Diameter 100mm
Table Drive Motor 2HP
Cutter Head Drive Motor 7-1/2HP*2
Net Weight (kg) 890kgs
Gross Weight (kg) 1,140kgs
Machine Size (mm) 1,670*1,370*1,970m/m
Packing Dimensions (mm) 1,790*1,550*2,220m/m
