PARTE: 2AM-U-300 - ARMADORA DE MARCOS - SEMIAUTOMATICA

PARTE: 2AM-U-300 - ARMADORA DE MARCOS - SEMIAUTOMATICA

NUEVA CON GARANTIA

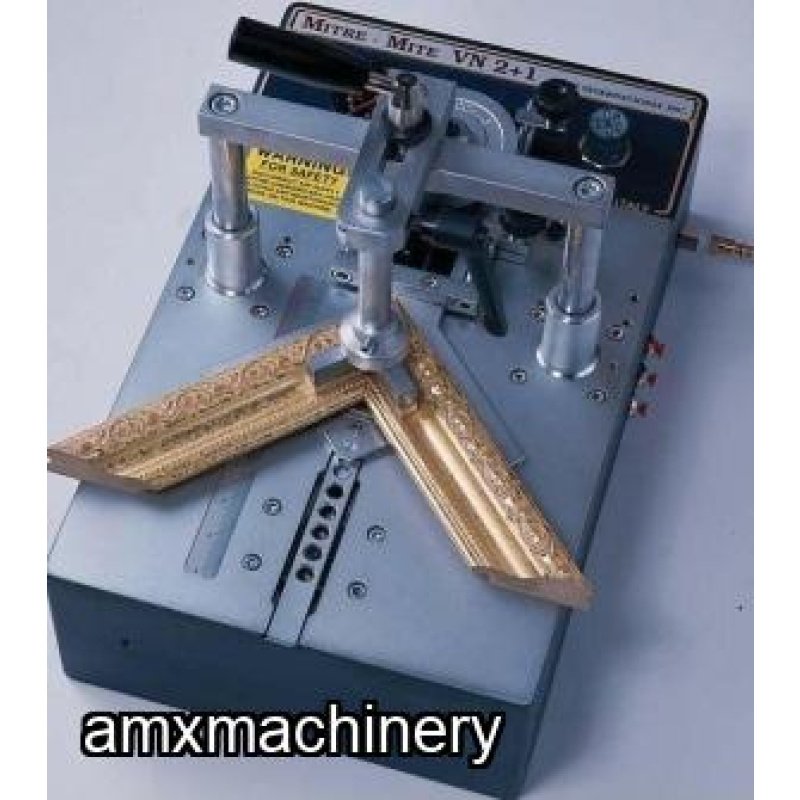

The U-300 is a bench-top, frame joining machine and the most popular model of custom frame shops. It is compact, well constructed, and built for many years of trouble free operation. The design of the U-300 allows the operator to set the front and back measuring stops for V-Nail insertion. The frame is then moved across the nail head and V-Nails are driven or stacked anywhere along the frame joint. The V-Nail insertion is actuated through the use of a pneumatic pedal.

Unique Performance Features

- Features pneumatic loader to eliminate nail jams

- “Soft Clamping” pneumatic feature for damage free joints

- Quick-change, magnetic pad hold down feature fitting most moulding profiles

- Small table-top footprint needed – 12” (305mm) wide x 19” (483mm) length x 14” (356mm) high

- Operates only with pneumatic air, no electrical hook-up needed

- Dual function foot pedal for separate control of mould clamping and V-Nail insertion

- Designed with a unique, trouble free piston V-Nail driver block-blade system for years of dependable single and multi-stacking operations

Frame Joining Capabilities

Moulding Width (min to max): ¼” up to 3 3/4” (6-60 mm)

Moulding Height (min to max): ¼” up to 3 ¼” (6-80 mm)

Max Distance Between V-Nails (stroke): 3 1/4” (80 mm)

Pre-set V-Nail Position Stops: Multiple

V-Nail Sizes: 5, 7,10,12,15 mm (SW-HW-HDF)

V-Nail Channel Capacity: 220 V-Nails/channel

U-300 Purchase Package

(1) 7mm Nail Head

(1) 10mm Nail Head

(1) 12mm Nail Head

(1) Single Vertical Positive Placement Clamp

(1) Magnetic Base of Clamp Assembly

(1) Blue Rubber Pads (SW)

(1) Yellow Rubber Pads (MW)

(1) Black Rubber Pads (HW)

(1) Round Pressure Pad (Felt)

(1) 4mm Allen Wrench

(1) 5mm Allen Wrench

(1) Front Horizontal Clamp

(1) Machine manual

Machine Dimensions & Weight

Width   300mm (11 ¾")

Length 485mm (19")

Height  456mm (18")

Weight 32kg. (70lbs.)

Power Requirements

Compressed Air 4NI at 5 Bar

Options

Floor Stand for U‐300

Extension Wing Kit for U‐300

Support Table ‐Bracket Kit (includes brackets, washers, M8 bolts, screws)

Support Table, Wood ‐(VN4 (Brackets not included ‐See 04‐046)
