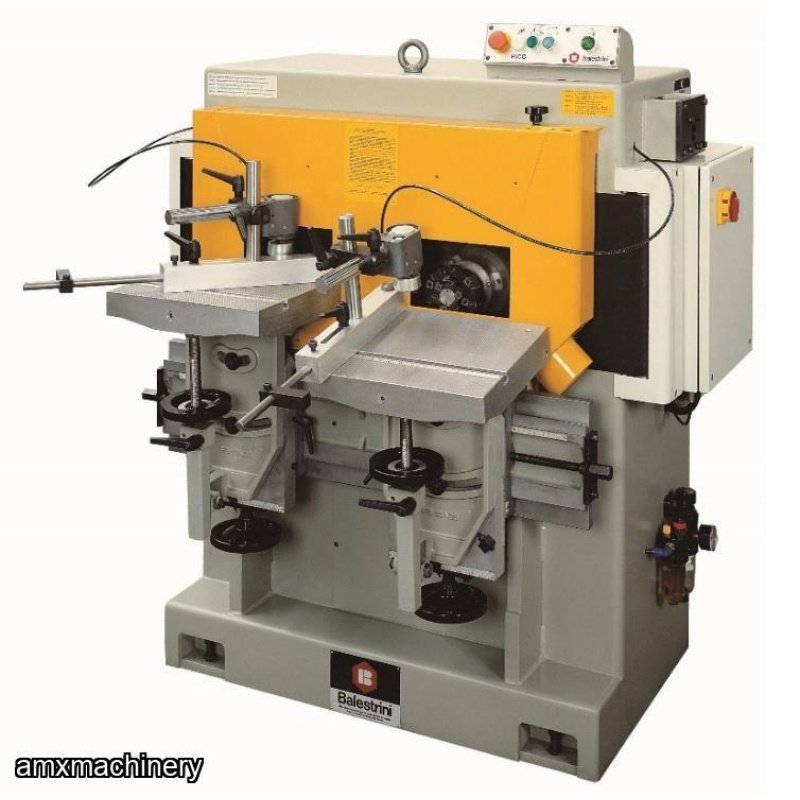

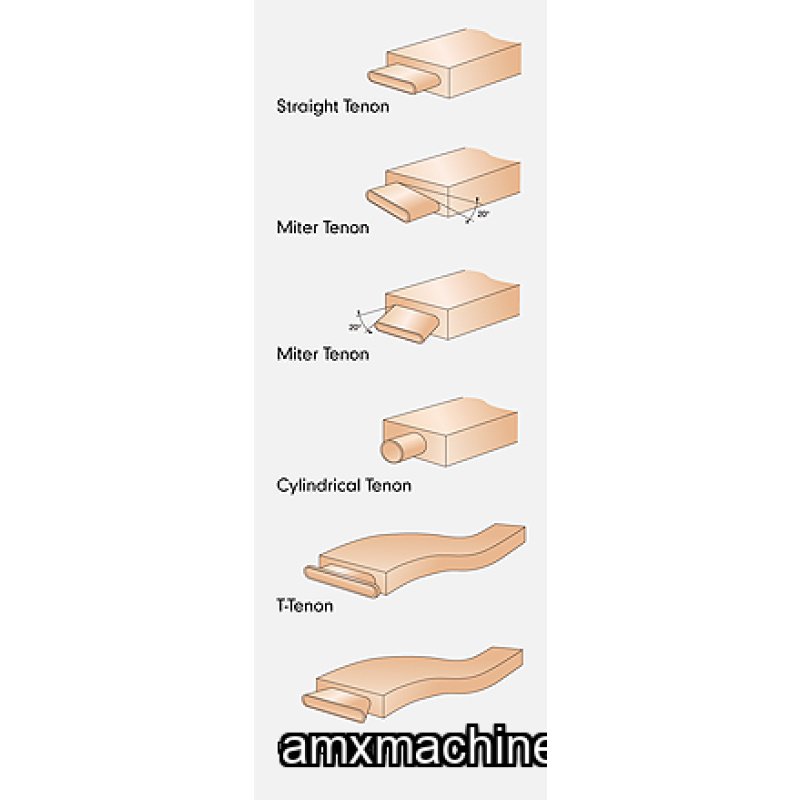

The PICO machine cuts round dowels or round end tenons on chair and case goods components. PICO cuts horizontal or vertical tenons on three compound angles sim-ultaneously without the use of special fixtures. The PICO machine is equipped with the exclusive, patented Balestrini anti-splitting cycle. With this system, the tables are fixed and the tool always enters the wood with the grain (climb cutting) and eliminates any tear-out.

The PICO machine base is thermally heat treated and rectified for exact precision. The working cycle is fully automatic with the cutterhead alternating between tables. While one table is being loaded, the other table is machining a workpiece, thus no idle production time. The head moves on hardened steel bars with linear ball bearings. PICO’s quality electrics are enclosed in a dust proof control cabinet.

Standard Features

- Automatic cycling, which allows production to be paced

- Electro-pneumatic emergency stop system with fail-safe circuit breakers

- One (1) heavy duty tenoning head with T.C.T inserts

- Mechanical digital readouts for tenon length and thickness

- Set up tools and manual

Numerically Controlled SET-UP

- Cutter motor 4 HP

- Cutter movement motor 1 HP

- Cutting tool rotation 9000 RPM

- Tenon thickness 4-30 mm (0.15-1.18")

- Tenon width 0-100 mm (0-3.93")

- Tenon depth 6-50 mm (0.23-1.96")

- Tenon inclination range 0-90 degrees

- Tables incline 20 degrees

- Work fence swivels 45 degrees

- Hourly production 400-800 tenons per hour

- Operating pressure 5-6 BAR (76-90 psi)

- Voltage To be specified

- Overall size 55 x 45 x 48”

- Net weight 2200 lbs.

- Electrical cabinet Protection level IP54.

- Standard voltage = 480 V 10 / -15% – frequency 60 Hz ± 1%
