Identificador: 2425
Abierta
Descripción

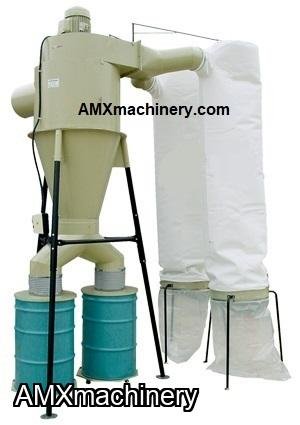

PARTE: 2EX-DC-203C – COLECTOR DE ASERRIN CON CICLON – MOTOR 3 HP – 1785 CFM
PARTE: 2EX-DC-250 – COLECTOR DE ASERRIN CON CICLON – MOTOR 5 HP – 2975 CFM
PARTE: 2EX-DC-275 – COLECTOR DE ASERRIN CON CICLON – MOTOR 7.5 HP – 4850 CFM
PARTE: 2EX-DC-2100 – COLECTOR DE ASERRIN CON CICLON – MOTOR 10 HP – 6400 CFM
Nuevo con garantía
1 micron filter bags
Drums not included
Low noise operation
standard 1 micron filter
heavy duty dynamically balanced impellers
heavy gauge steel construction
includes drum dollies
2 stage collection
Magnetic starter included
|
2EX-DC-203C
|
2EX-DC-250
|
2EX-DC-275
|
2EX-DC-2100 |
|
|
Motor |
TEFC 3 HP |
1PH: BALDOR 5 HP |
1PH: BALDOR 7.5 HP |
TEFC 10 HP |
|
Filter Bags |
1 |
2 |
2 |
2 |
|
Phase |
Single |
Single or Three |
Single or Three |
Three |
|
CFM |
1785 |
2975 |
4850 |
6400 |
|
Amps @ Voltage |
15A @ 220V |
1PH: 27A @ 220V |
1PH: 38A @ 220V |
27A @ 220V |
|
Dimensions (H x W x D) |
123" x 65" x 42" |
140" x 110" x 50" |
140" x 120" x 50" |
148" x 128" x 56" |
|
Inlet Size |
8" |
10" |
12" |
13" |
|
Impeller Size |
13" |
14-1/4" |
14-3/4" |
16" |
|
Filter Area (sq) . ft. |
37 |
59 |
117 |
117 |
|
Fan RPM |
3450 |
3450 |
3450 |
3450 |
|
Fan Size |
13" |
14.25" |
14.75" |
16" |
|
Weight |
260 lbs |
440 lbs |
540 lbs |
750 lbs |
|
Static Pressure |
10" |
12" |
13.5" |
16" |
|
Dual Barrel Design |
✓ |
|||
|
Optional Remote |
✓ |
✓ |
✓ |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 300 MM ANCHO X 250 MM ALTO
PARTE:
3HP-HP-12E - REASERRADORA HORIZONTAL – 1 SIERRA BANDA – 300 MM ANCHO X 250 MM
ALTO
Nueva con garantía
Specifications:
1.Max. workpiece size: 300mm(W) x 250mm(H)
2.Distance from blade to conveyor Table: 4-125mm
3.Conveyor belt size: 285mm x 5470mm
4.Saw wheels dimension: Φ28" x
1"(Thickness)
5.Feed speed: 5-25 M/min
6.Saw blade size: 168" x 1"
7.Saw wheel motor: 20HP
8.Conveyor motor: 2HP motor with 30:1 gear box
and 2HP inverter
9.Inverter cont...
AMXmachinery
PARTE: 2BC-5TOB - TRITURADORA - PAPEL, CARTON, FOIL DE METALES FINOS - BLOAPCO - MODEL 5TOB
PARTE: 2BC-5TOB - TRITURADORA - PAPEL, CARTON, FOIL DE
METALES FINOS - BLOAPCO - MODEL 5TOB
Para papel, cartón corrugado y fibras pesadasBEST USES Removal of continuous film, Edge Trim and MatrixINDUSTRIES Converting, Paper, Film, Plastic, Non-woven, FoilsIDEAL FORpaperlight fiber boardcorrugated boardsolid bleached sulfate paperboardplastic filmfoil laminatespressure-sensitive stocklight, non-ferrous foils CAPABILITIESMaterials:
Paper, corrugated and heavy fiber boardTrim
Width max: 8 1...
AMXmachinery
TRANSPORTADORES DE RODILLOS
PARTE: 11837 - TRANSPORTADORES DE RODILLO - LARGO 10 PIESEn muy buenas condicionesDistancia entre rodillos 3"Ancho total: 24"Diametro rodillos: 1.875"Altura de rieles: 3.5"Largo total: 120" (10 pies o 3 mts)Soportes para los transportadores disponibles
-500x500.jpg)
AMXmachinery
LIJADORA DE DISCO Y BANDA
PARTE:
2AR-97181 – LIJADORA DE DISCO Y BANDANUEVA EN SU CAJA ORIGINALPowerful
3.5 amp motorCast
aluminum table tilts to 60° for use with belt or disc6
in. disc for fast stock removalMiter
gauge for sanding angles on workpieceAdjustable
belt sands inside and outside curvesReinforced steel motor housingAC
Volts: 120Accessories
Included: Miter gauge, sanding belt and sanding discAmperage
(amps): 3.5Belt
width”: 4 in.Diameter
disk: 6 in.Horsepower
(hp): 3/4Speed
(max): 1819 RPM (di...
