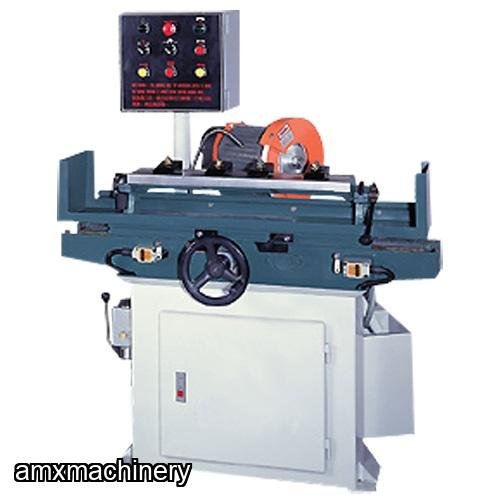

PARTE: 2TA-TG-6000 – AFILADORA DE CUCHILLAS RECTAS
Nueva con garantia
Features:
Heavy-duty straight knife grinder, rapid for grinding processing and saving time.
Economical model and efficiency for processing high powerful of any straight knife grinding such as Planner & Jointer Knife, Peeling Knife, Super Surface Knife, and Veneer Cutting Knife.
Automatic grinding table movement forward and backward, label saver.
Employed with straight linear motion guides bearing to ensure longitudinal feed traverse smoothly and accurately.
The knife can be put through a coarse wheel grinding, then a fine wheel grinding for sharpening the knife edge again to obtain the super sharp edge and extend the cutting life of the knife.
Built in coolant pump for faster grinding.
Heavy sheet metal cabinet stand and cast iron body.
High precision and durability.
SPECIFICATIONS | 2TA-TG-3000 | 2TA-TG-5000 | 2TA-TG-6000 |
Grinding Capacity |
|
|
|
Cutter (Dia. x W) | 9" x 8" | N/A | N/A |
Carbide Saw (Dia. x T) | 20" x 3/8" | N/A | N/A |
Carbide Knife (L x W x T) | 12" x 1½" x ¼" | 25" x 3" x 5/8" | 25" x 3" x 5/8" |
Router Bits (Shank) Max. | ½" | N/A | N/A |
Grinding Wheel Size | 6" x 5/8" | 4" x 2" x 5/8" | 10" x 2/3" x 1" |
Grinding Head Travel | 14" | 26" | 26" |
Grinding Wheel Speed | 5000RPM | 1700 RPM | 1700 RPM |
Fine Grinding Wheel Size | N/A | --- | 4" x 2" x 2" |
Grinding Wheel Motor | 1 HP | ½ HP | 1 HP |
Fine Wheel Motor | N/A | --- | --- |
Table Size | 28' L x 8" W | 26" L | 27" L |
Table Travel | 20" x 7" | (Wheel) | 28" |
Table Travel Motor | --- | ¼ HP | ¼ HP |
Coolant Pump Motor | 1/8 HP | N/A | 1/8 HP |
N.W. (LBS) | 748 LBS | 340 LBS | 660 LBS |
G. W. (LBS) | 924 LBS | 430 LBS | 836 LBS |
