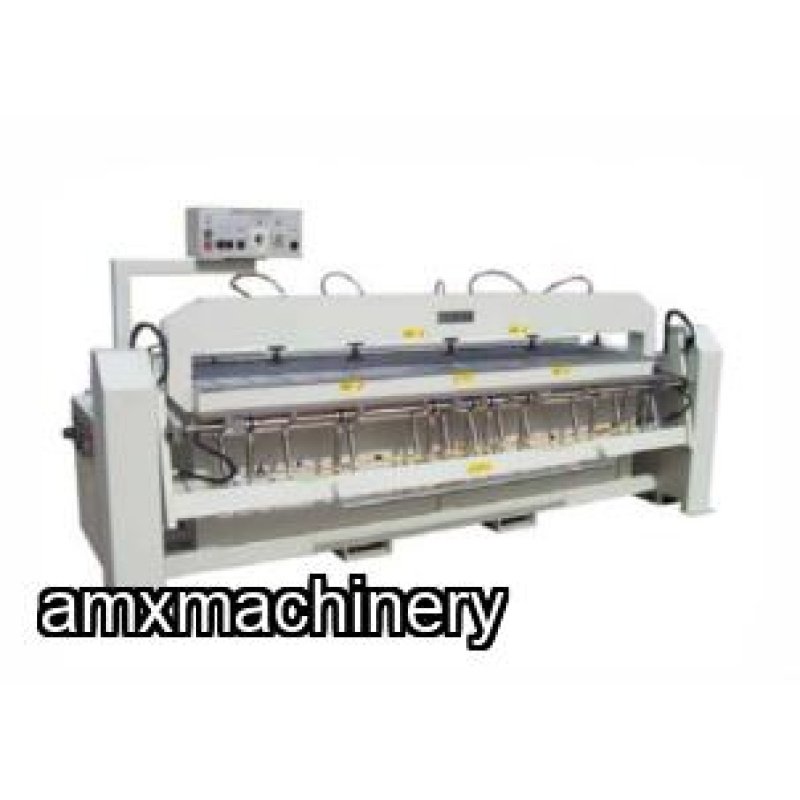

POSTFORMADORA

PARTE # 2EV-0138 - POSTFORMADORA - 8 PIES LARGO 1 LADO - EVANS 0138

 All Form 8' capacity

- 220 Volt, 1 Ph., 60 Hz, 20 amp. Or 380 Volt, 3 Ph. 50 Hz

- 100 PSI air required 1 CFM (2 CFM if using vacuum clamp)

- Standard Features:

- Overhead clamp and vacuum system

- Forming length capacity 100"

- 1 ½” maximum forming radius. (3” thick material)

- Foot print 4' wide X 11' long

- Thermostatically controlled heater, ambient to 500 degrees Fahrenheit

- Integrated timer. Individual control on all air components.

- Working height 36"

- Crated weight 1855 LBS.

- Shipping dimensions 143” long X 46” wide X 57” high
