Identificador: 3129 Abierta
PRENSA HIDRAULICA PARA PEGAR
PRENSA HIDRAULICA PARA PEGAR

PRENSA HIDRAULICA PARA PEGAR

AMXmachinery1

Contacte al Vendedor
Descripción
PARTE: 4ST-SL3 - PRENSA HIDRAULICA PARA PEGAR


HYDRAULIC PRESS FOR LAMINATED BEAMS

CLASSICS FOR GLUING

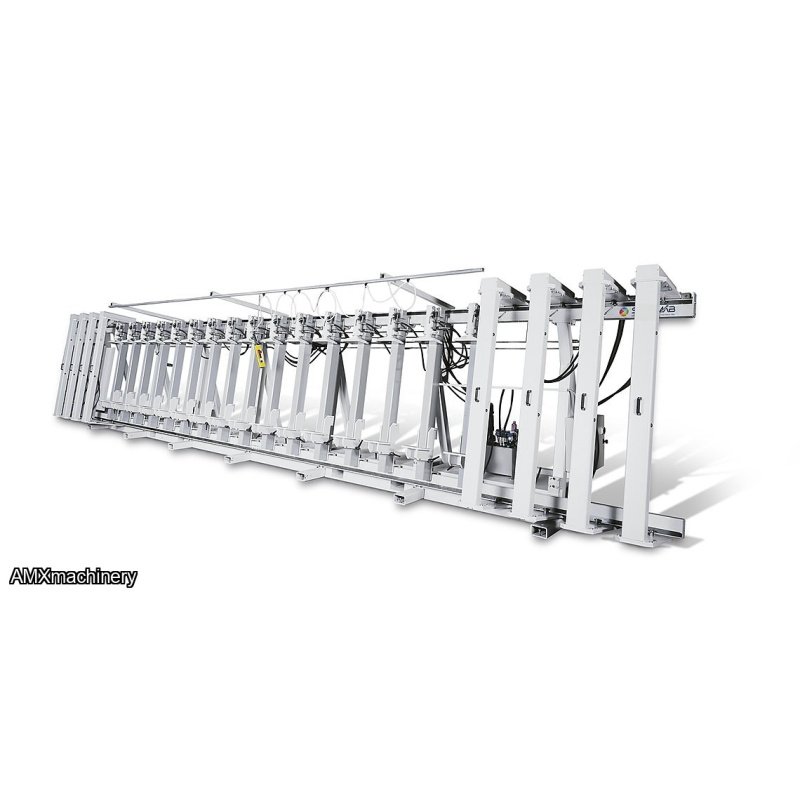

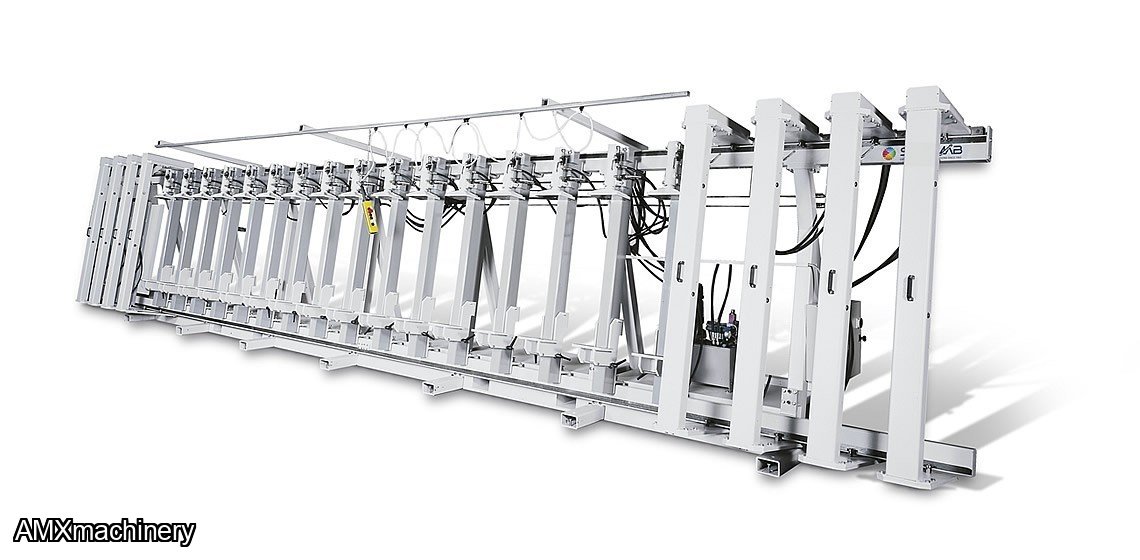

Is an electro-hydraulic press for the production of structural laminated beams.

Its solid structure combined with its ease of setup and use make it the optimal solution

for the production of laminated beams and blockboard panels.

The working unit consists of cylinders and pressers equipped with independent opening/closing valves,

sliding front pressers and front loading and unloading thanks to the presser parking stations.

Wide range of configuration options to suit your working needs.


Technical specifications

Hydraulic power unit

  • kW 5,5 (HP 7,5)

Hydraulic cylinder control

  • sliding wall-mounted control panel

Vertical beam with cylinder

  • nr. 2 per meter fixed fissi (automatic hydraulic)

Cylinder thrust

  • 7200 kg

Front pressure bar

  • nr. 1 per meter sliding (automatic hydraulic)

Extra working length

  • option on demand

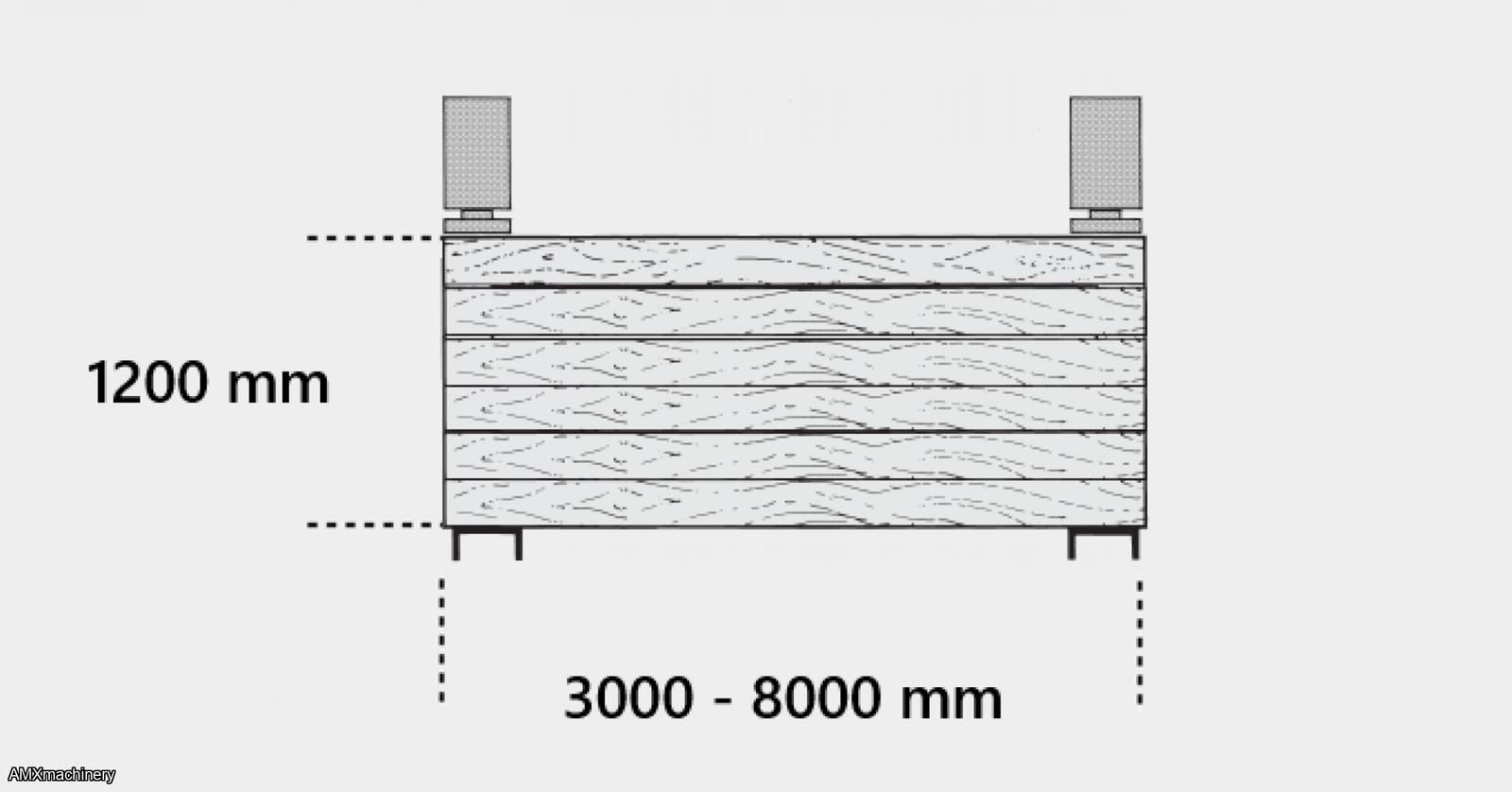

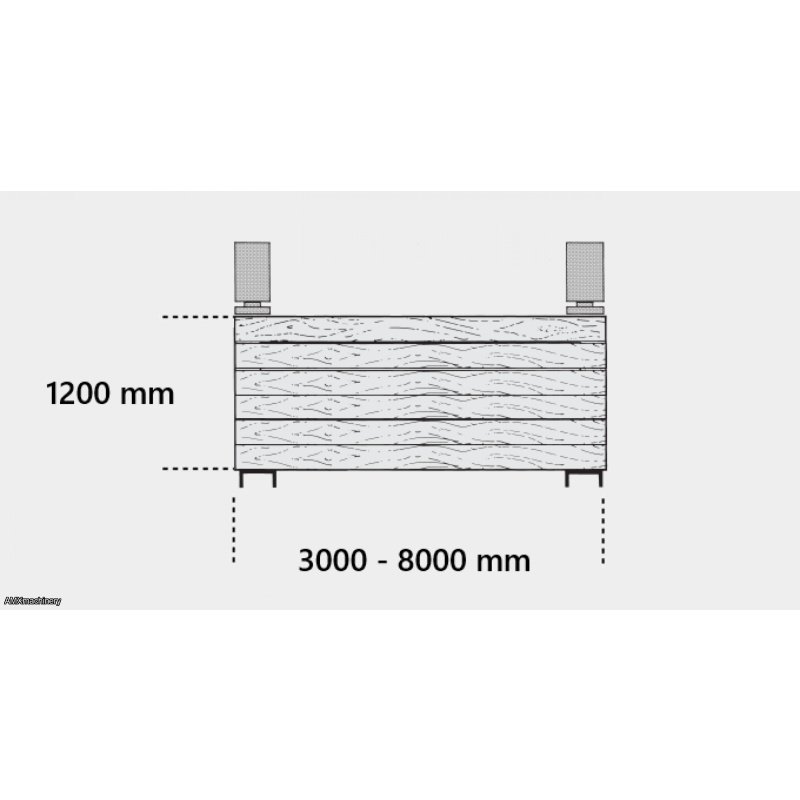

Maximum thickness of beam for bonding

  • 200 mm (250 mm option)
Pago y Devoluciones
Forma de pago
N/A
Publicar mensaje
Ingresar to ask the seller a question.
COMPACTADORA VERTICAL DE CARTON
AMXmachinery1
COMPACTADORA VERTICAL DE CARTON
PARTE: 12736 - COMPACTADORA VERTICAL DE CARTONLoad King vertical baler36" x 60"208-230/460V, 3-Phase power requirementEquipped with a hydraulic press head and bottom bale ejector systemSafety lift gate and dual-hand control stationShows normal signs of usageMotor Draws High Amperage. Sold AS ISTested and works as it should.
CENTRO DE MAQUINADO CNC - 10 HP - FUERTE 1325
AMXmachinery1
CENTRO DE MAQUINADO CNC - 10 HP - FUERTE 1325
PARTE: 4NE-FUERTE1325 - CENTRO DE MAQUINADO CNC - 10 HP - FUERTE 1325Control Unit HSC-RTEX (TÜRKİYE)• Spindle: HERTZ 8.5 KW 24000 rpm ISO30 (TURKEY)• Vacuum Pump: BLOWER VAKUM POMPASI• Working Capacity: 2100mm*2800mm (2100mm*3660mm Option)• Remote Control: YES• Automatic Self Lubrication System: YES ( ILC - Italian )• 10 Tool capacity tool magazine back side of chassis• 10 Toolholder• Vacuum Zone: 6 zone for 2128 / 8 zone for 2136• Automatic Unloading and Cleaning System: Op...
SIERRA RAJADORA - 1 DISCO - 12"
AMXmachinery1
SIERRA RAJADORA - 1 DISCO - 12"
PARTE: 2EX-XR-12LE - SIERRA RAJADORA - 1 DISCO - 12"Specifications:Horsepower: 7.5HP or 15HPVoltage: 230V or 460VPhase(s): 1PH or 3PHBlade Size: 12"Main Motor: 15 HPFeed Motor: 1-1/2 HPBlade Speed: 4500Feed Speed: 50 - 100Max Rip Capacity: 14-3/4"Working Height: 32"Table Size: 37" x 51-1/4"Hold Down Rollers: 6Chain Rail Length: 40"Chain Pad Width: 6"Guaranteed Glue Line Length: 8'Set of Anti-Kickback Fingers: 3Disc Brakes: YesOiler System: Auto w/ shutoffAMPS (230V/460V): 42A / 21AMax Thickness...
RECOGEDOR DE PISO - METAL
AMXmachinery1
RECOGEDOR DE PISO - METAL
PARTE: 2EX-DA-FS04 - RECOGEDOR DE PISO - METALSet up a sweeping station at convenient locations to sweep wood dust and debris directly into your dust collection system.EconomicalQuick and effective floor cleaningBlast Gate sold separately
