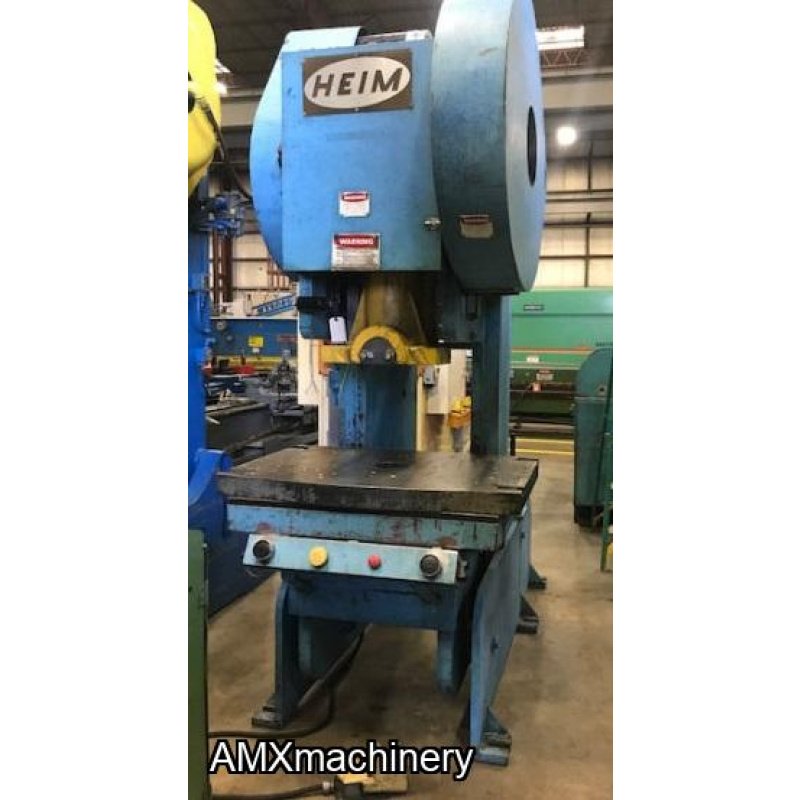

PUNZONADORA - 120 TON

PARTE: 12323 - PUNZONADORA - 120 TON

USADA - BUENAS CONDICIONES

Model: 12-A-OBI-BG

Air clutch & brake

Back geared type

Stroke:                  8"

Slide adjustment:        4"

Shut height S.D.A.U.:    15-1/2" to top of bed

Area of bed:             40" L-R x 30" F-B

Bolster thickness:       4"

Area of slide:           19" L-R x 13" F-B

Shank hole diameter:     2-1/2"

Throat depth:            16"

Opening through back:    20"

Floor to top of bed:     38"

S.P.M. approx.:          45

EQUIPPED WITH:     Dual sensor buttons for run with

                           emergency & top stop button

                         Electric foot switch

                         Pushbuttons for start - stop

                         Key selector switch for inch - off -

                           single stroke - continuous

                         Selector switch for palm - foot

                         Brake monitor

                         Bijur one shot oil lubrication

                         Knockout shot in slide

                         Inclining mechanism

                         Production counter

                         10 HP 1745 RPM 230/460/3/60 motor

Weight approx. 14,500 lbs.

Overall dimensions approx. 53" L-R x 92" F-B x 120.5" H
