Identificador: 244
Abierta
Descripción

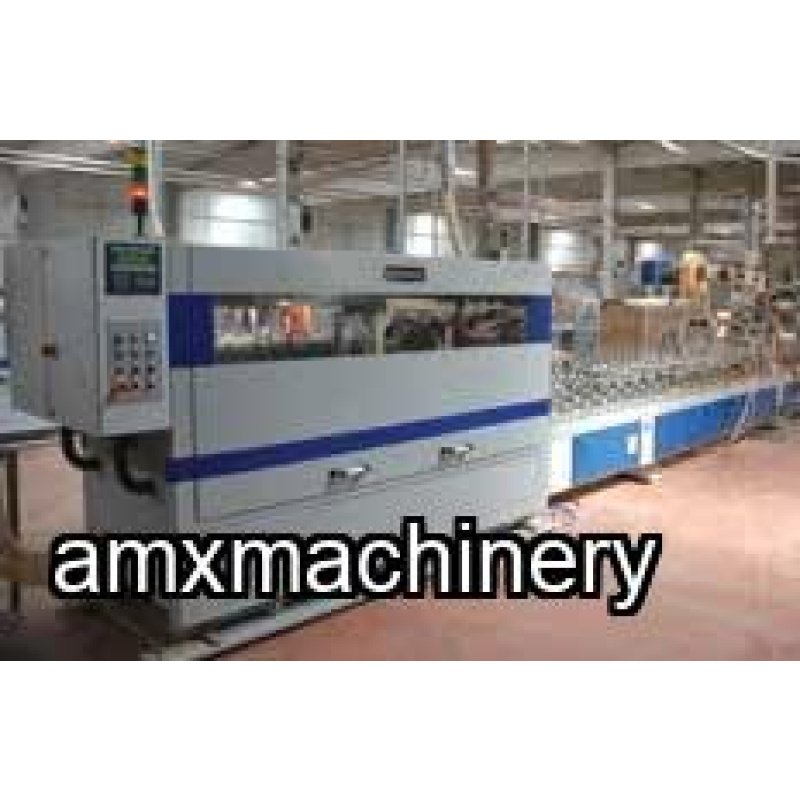

PARTE: 2UK-PW35-F5-E - RECUBRIDORA DE MOLDURAS

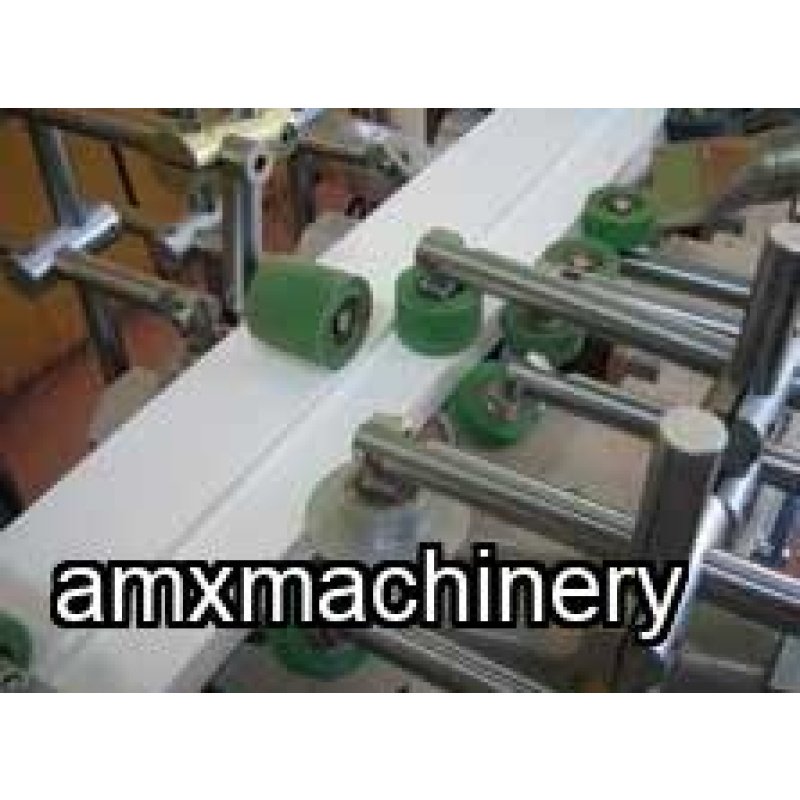

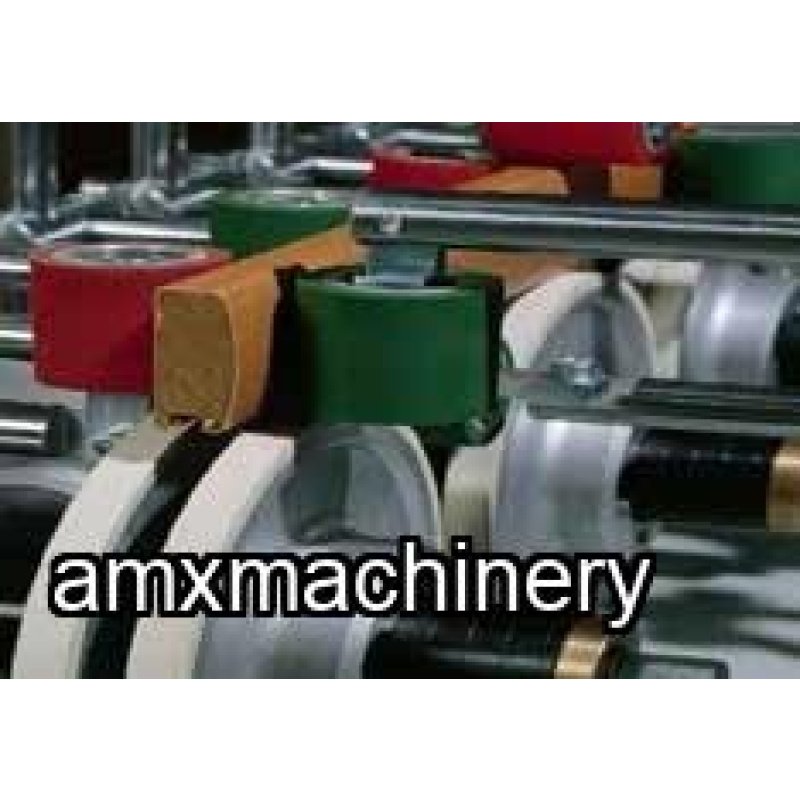

- Six meters, long steel construction bedframe, composed of 19 groups of synchronized transport wheels of 15mm width driven by a frequency inverter controlled motor (1.5 kW) with speed variation from 10 up to 47 m/min. Through an helicoil screw spindles gear transmission.
STANDARD EQUIPMENT
- Quick adjustable guides for profile Access ( EASY FEEDING)
- Top cleaning brush, 0.37 kW motor power, rotating at 900 rpm.
Brush 300 x Ø 140 mm with protection cover and dust outlet Ø 60 mm
- Side cleaning brushes, 0.18 kW motor power, rotating at 1500 rpm.
- Brushes 100 x Ø 140 mm with protection cover and dust outlet Ø 60 mm
- Profile preheater ( 3pcs.)
- Case for Glue (EASY CLEANING)
- Moveable operator control panel (EASY CONTROL)
- Digital conveyor speed display
- 6 inches (Ø 152 mm ) unwinding stations with pneumatic brake and expansible air shaft for Roller applicator
- EVA& APAO glue melting tank with 20lt volume and Heat control seperately at two parts of body for reducing Power supply. (2000 W * ‘ Pcs – Cylinder Resistance)

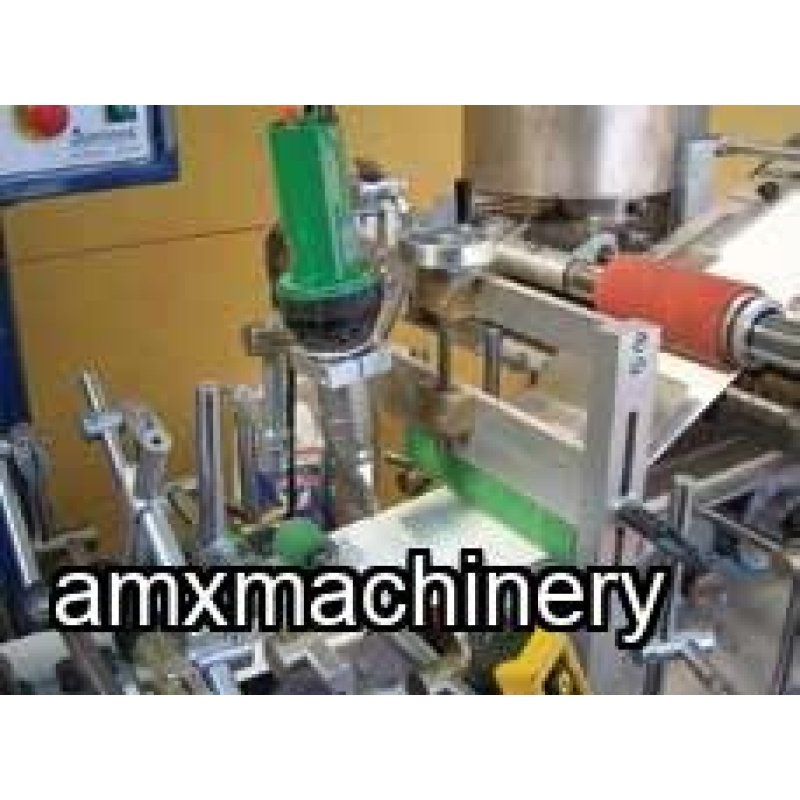

- Special Glueing roller for Veneer Wrapping (350mm Max.)
- Applicator Heater (1500 W* 3 Pcs.)

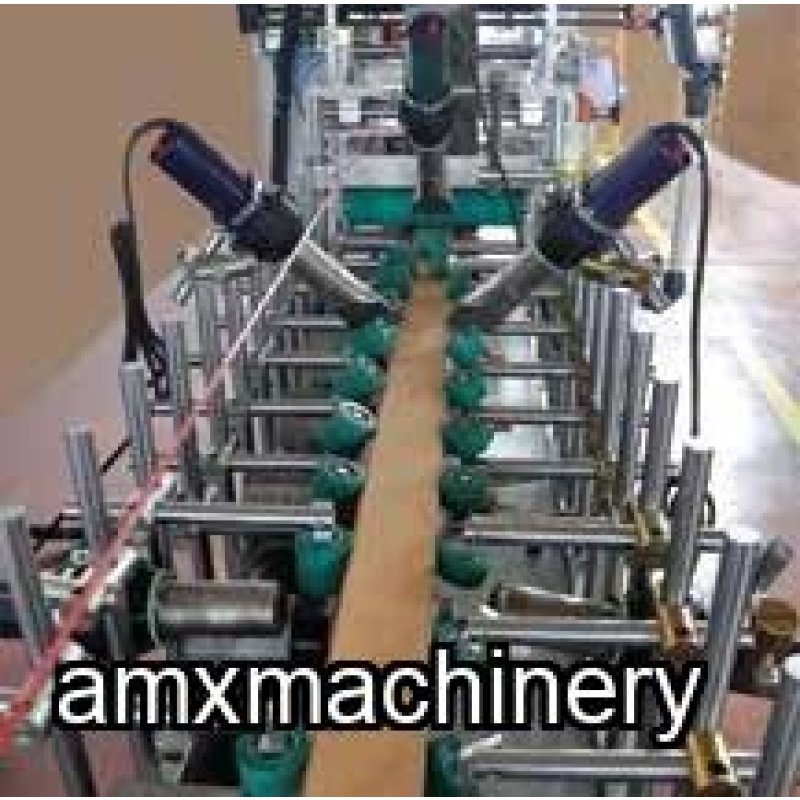

- 6 pieces hot air fan for core preheating or glue reactivation
- 152 pieces standard and special wrapping tools.
- Security system with cable for emergency stop along the whole machine accordingto EC standarts.
TECHNICAL FEATURES
- Glue Type: EVA or APAO glue.

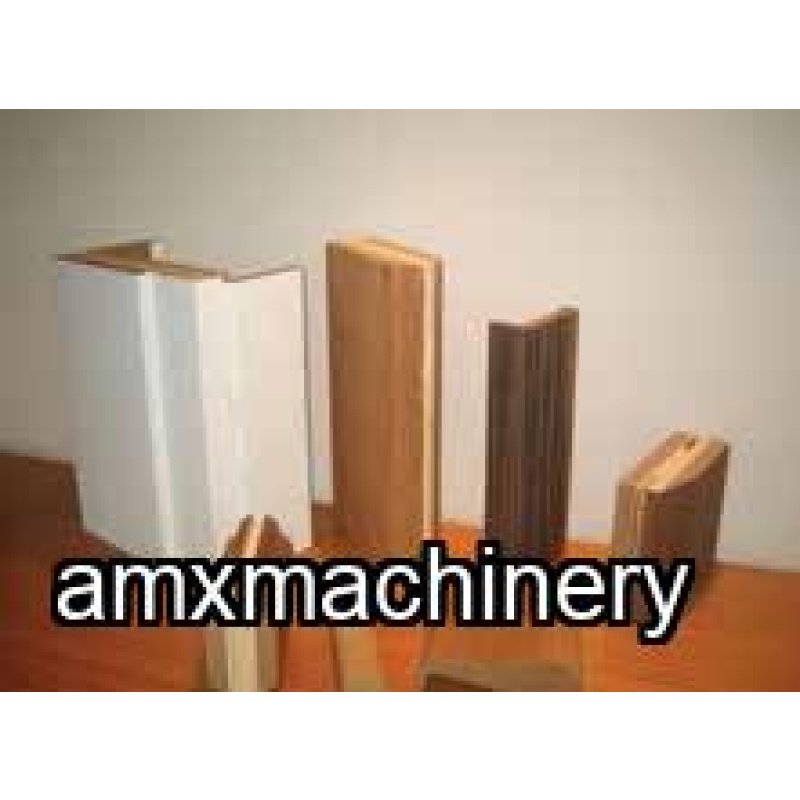

- Profile Type: MDF , Chipboard, Solid Wood Profiles
- Foil Type: P.P., Paper, Finished Foils, and Veneer (Roll & Strip)
- Foil Width: From 20 mm to 350 mm.
- Profile Width: 200 mm. Max.
- Profile Height: 125 mm. Max.
- Dimensions: 6000x850x2200
- Weight: 2250 kg
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express, Transferencia/Deposito Bancario
