Descripción

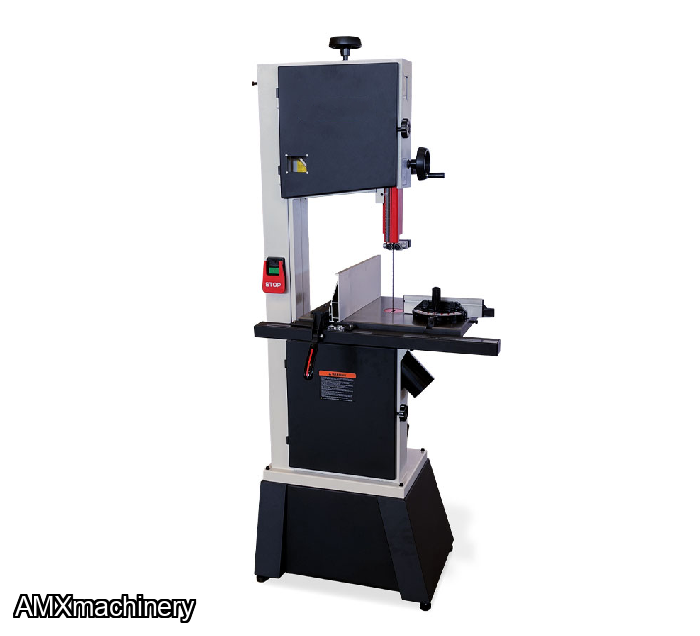

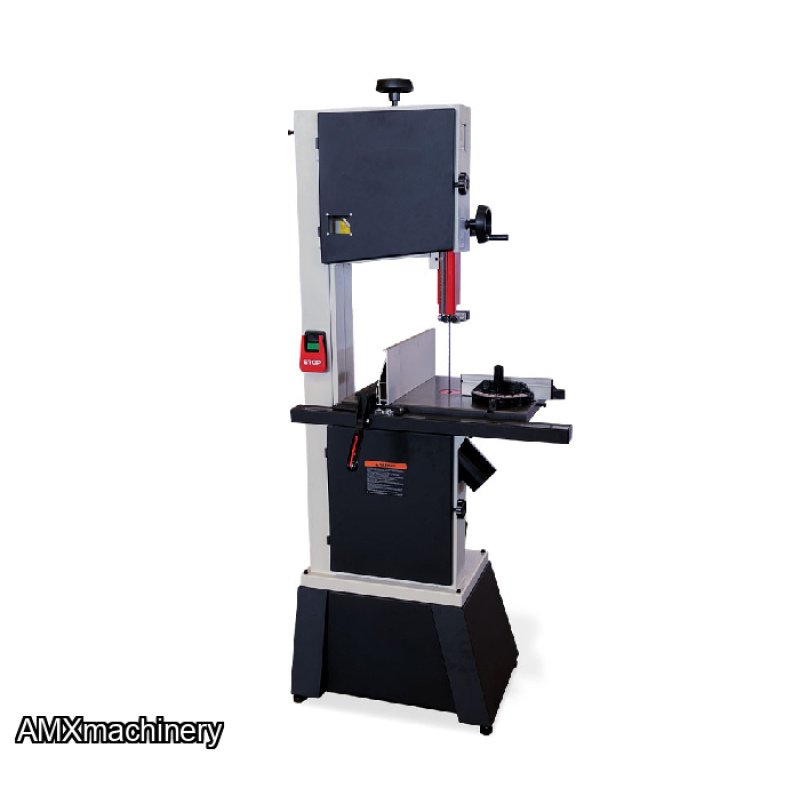

PARTE: 2MK-SF.35.MI - SIERRA CINTA 14"

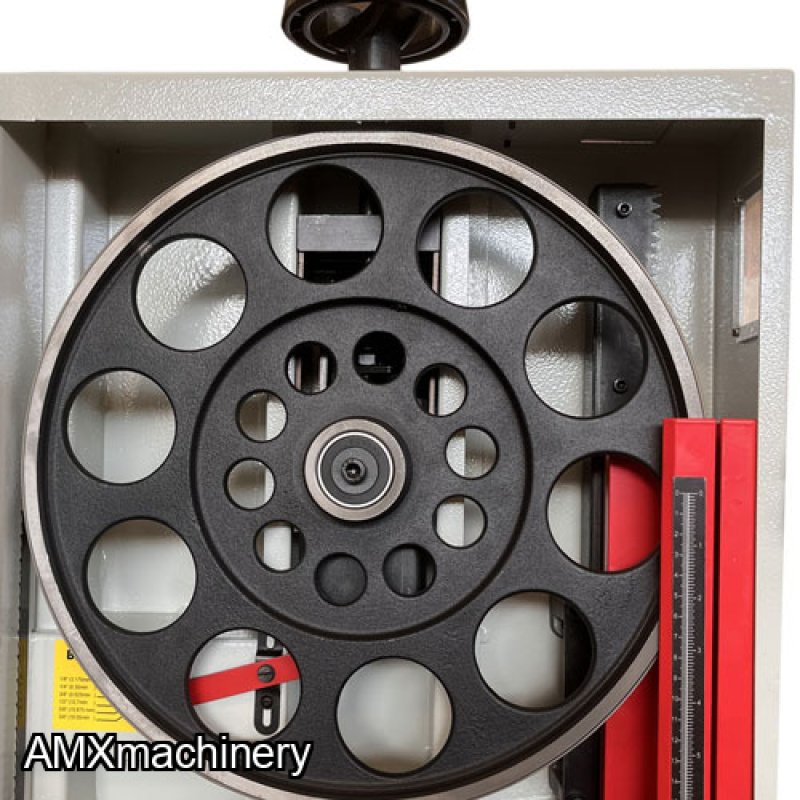

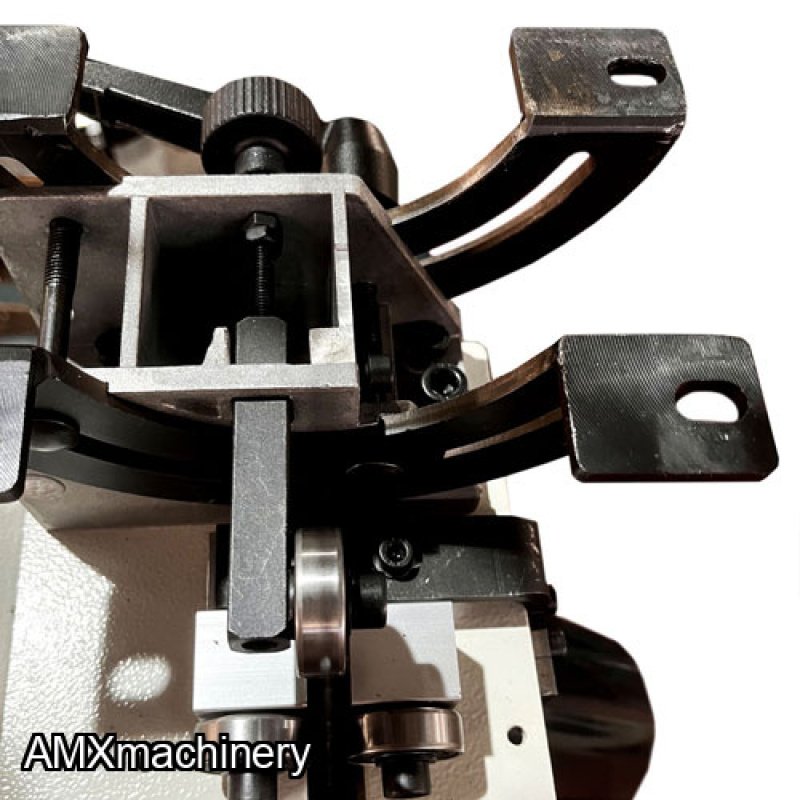

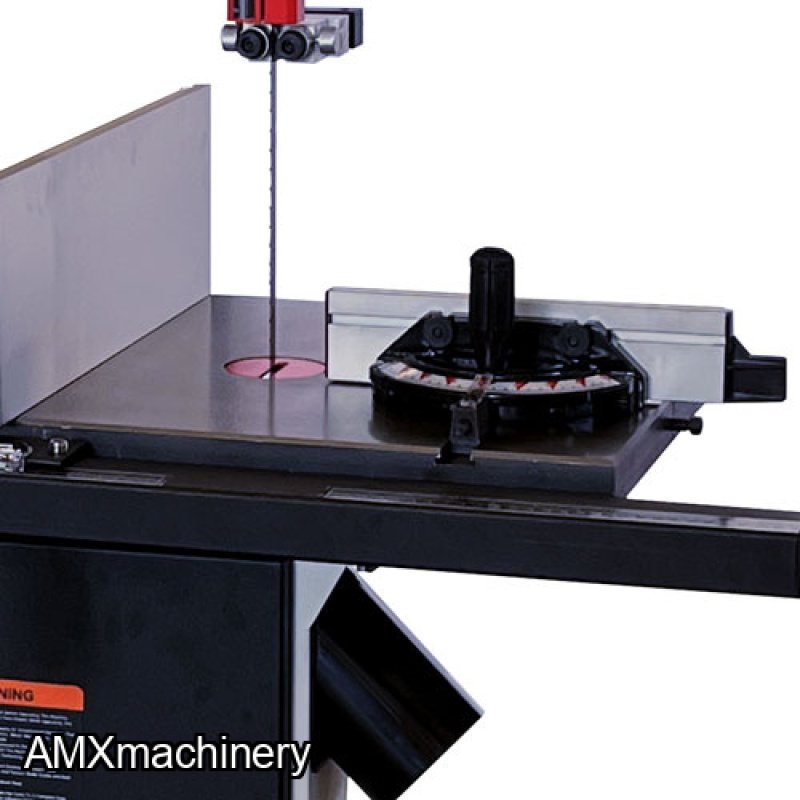

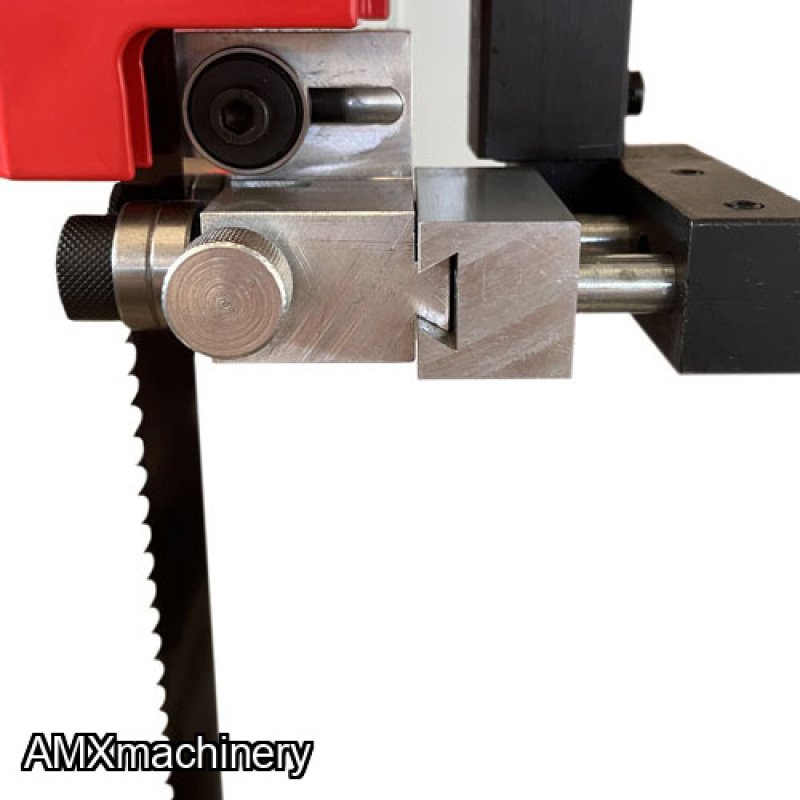

This remarkable machine sets a new standard for combining functionality and affordability. Its generously sized cast-iron table offers an expansive work surface of 360 square inches, providing excellent support for handling deep cuts. The precision-machined aluminum fence system features clear and easy-to-read measurements, ensuring the utmost accuracy in your cuts. Is powered by a robust 1 ¾ HP Motor, it has dual 4” dust ports ensuring optimal dust collection efficiency, comes equipped with Japanese blades, cast iron wheels, Mitre Gauge, upper and lower ball bearing blade guides, and a Heavy-Duty base for maximum stability when sawing larger pieces. This Bandsaw brings all the premium features of a high-end saw to the woodworking enthusiast, delivering superior performance to tackle any project with ease.
| Technical Information | |
|---|---|
| Motor Specs | 1 Phase 110V 15 Amp 60 Hz |
| Diameter of wheel | 14" |
| Speed | 3000 ft/min |
| Max cutting width | 13- 1/2" (345mm) |
| Max cutting height | 12" (310mm) |
| Table size (LxW) | 17- 1/4" x 21- 1/8" |
| Blade Size | 115" (2933mm) |
| Blade Width | 1/8" - 3/4" |
| Floor-to-table height | 40 - 1/4 " |
| Dust port size | 4" |
| Footprint (LxWxH) | 27" x 39" x 78" |
