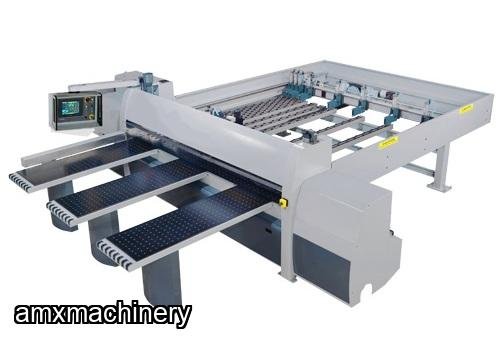

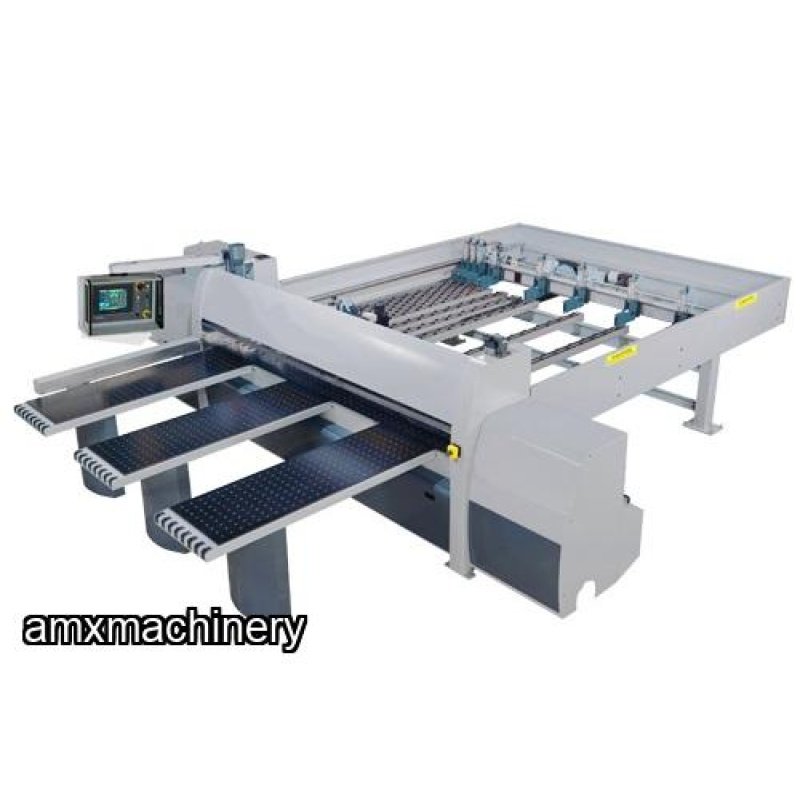

PARTE # 2TA-TS-P330H - SIERRA DE PANELES 3200 MM
Specifications | 2TA-TS-P330H | 2TA-TS-P380H | |
---|---|---|---|
Capacity | Max. Cutting Length | 126" (3200 mm) | 150" (3800 mm) |
Max. Cutting Height | 0 ~ 4" (0~100 mm) | ||
Main Sawblade | Diameter | Ø16" (Ø405 mm) | |
Arbor Diameter | Ø2" (Ø60 mm) | ||
Speed | 3910 RPM | ||
Scoring Sawblade | Diameter | Ø7" (Ø180 mm) | |
Arbor Diameter | Ø2" (Ø45 mm) | ||
Arbor Speed | 5100 RPM | ||
Saw Carriage | Forward Speed | 100 M/ min | |
Return Speed | 120 M/ min | ||
Motor | Main Sawblade Motor | 20 HP | |
Scoring Sawblade Motor | 3 HP | ||
Saw Carriage Drive Motor | 1 kw | ||
High Pressure Blower Motor | 5 HP x 1 | ||
Pusher Drive Motor | 1 kw | ||
Others | Pusher Pulling | (& Pushing Speed) up to 80 M/ min | |
Working Air Pressure | 7 kg/ cm² | ||
Table High from Floor | 33" (850 mm) |
- Cutting large panels quickly and efficiently is a necessity in today’s competitive markets.
- The computer panel saw promises dramatic productivity gains with this features: advanced computer control, high efficiency automatic gripper feed system, reduced cycle time, and prefect square cutting accuracy, all at an economical price.
- Great select memory capacity permitting for single or multiple sizes at groups of quantity cutting.
- Employed with touch control screen for convenient operations, eliminating the problem of dust contamination.
- Featuring a self diagnostic function, provide with comprehensive probable cause of trouble and detailed trouble shooting guide, allowing the operator to correct problems easily.
- Superior software system is designed for human and machine interface.
- The base is welded from cold rolling steel plate, offers rugged construction.
- Automatic saw stroke enable to only cutting the panel actuary length and return right away, this reduce considerable cycle time.
- The saw carriage runs with bronze wheel, which is CNC lathe precision machined or accurate concentricity producing fine smooth surface cut.
- The guide rods, hard chrome plated, provide rigid support for saw carriage. The ripping accuracy is guaranteed.
- The machine employs an advanced, high performance limit switch, its highly sensitive performance ensures extremely accurate saw stroke control.
- The saw carriage feed is driven by rugged wire.
- The scoring blade may be laterally adjusted for a burr free cut or vertically adjusted for proper depth of cut and to compensate for blade wear.
- The Table surfaces are covered with bakelite to prevent scratching of the panel during feeding.
- Panels feed through the linear motion guide for greater accuracy and less effort.
