Descripción

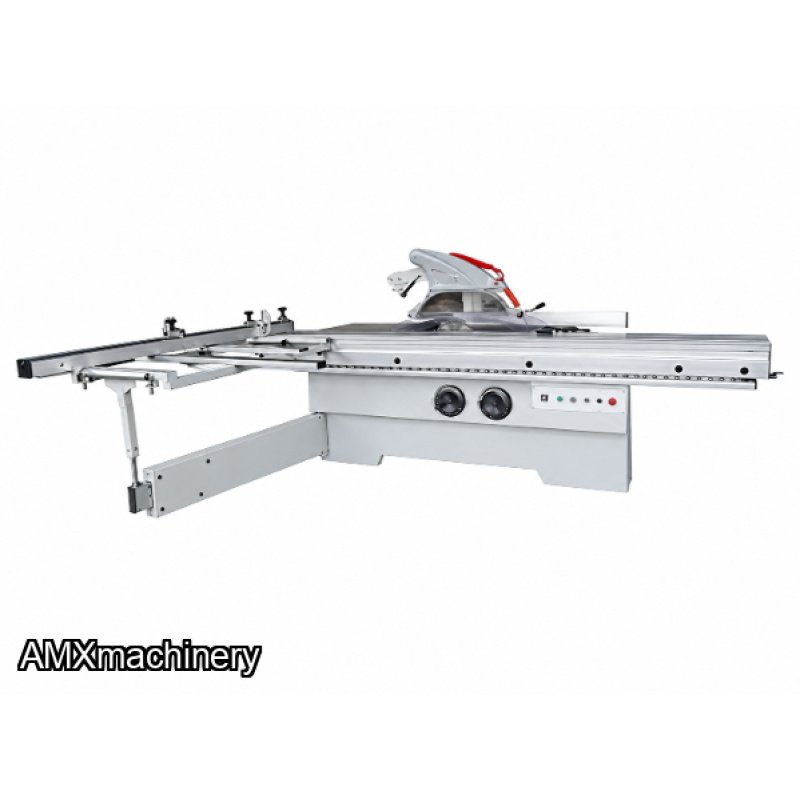

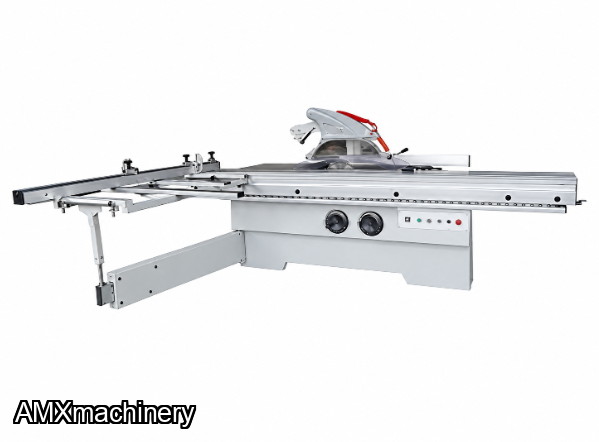

PARTE: 3HO-HT400 - SIERRA DE PANELES MANUAL
Sliding table saw for longitudinal, transverse and angular cutting of panel materials (MDF, fibreboard, chipboard and glued panels) faced and laminated, as well as blanks made of solid wood, with preliminary trimming of the lower edge to prevent chipping.
| Table Size(L*W) | 3200*385mm(table size is optional) |
| Main Blade Diameter | 400mm |
| Scoring Blade Diameter | 120mm |
| Rip Guide Length | 1650mm |
| Rip Cut Capacity | 1390mm |
| Support Arm Length | 1335mm |
| Cross Cut Capacity | 3200mm |
| Cross Cut Ruler Length | 2090mm |
| Max. Cutting Depth | 140mm@90°, 99mm@45° |
| Fixed Table Size | 1020*595mm |
| Right extension table size | 1020x850mm |
| Rear extension table size | 595x630mm |
| Saw Body Length | 2070mm |
| Table Height | 870mm |
| Bracket Size | 1450*680mm |
| Main Blade Speed | 3000/4000/5000rpm |
| Scoring Blade Speed | 8500rpm |
| Motor Power | 5.5+1.1kw |
| Net Weight | 950kgs |
