Identificador: 3098
Abierta
Descripción

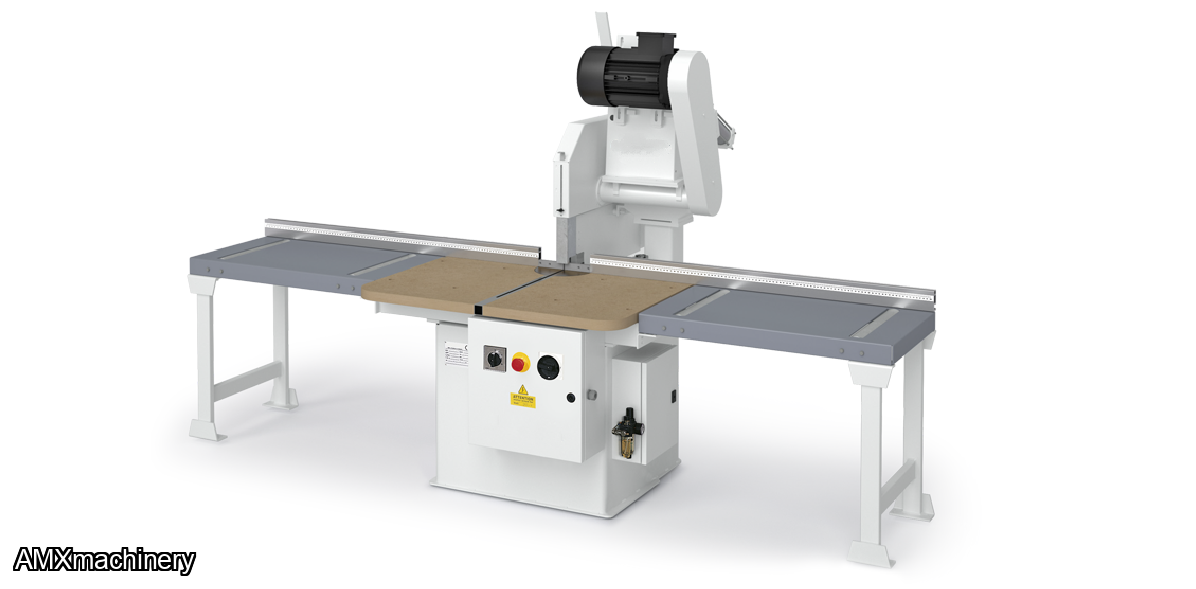

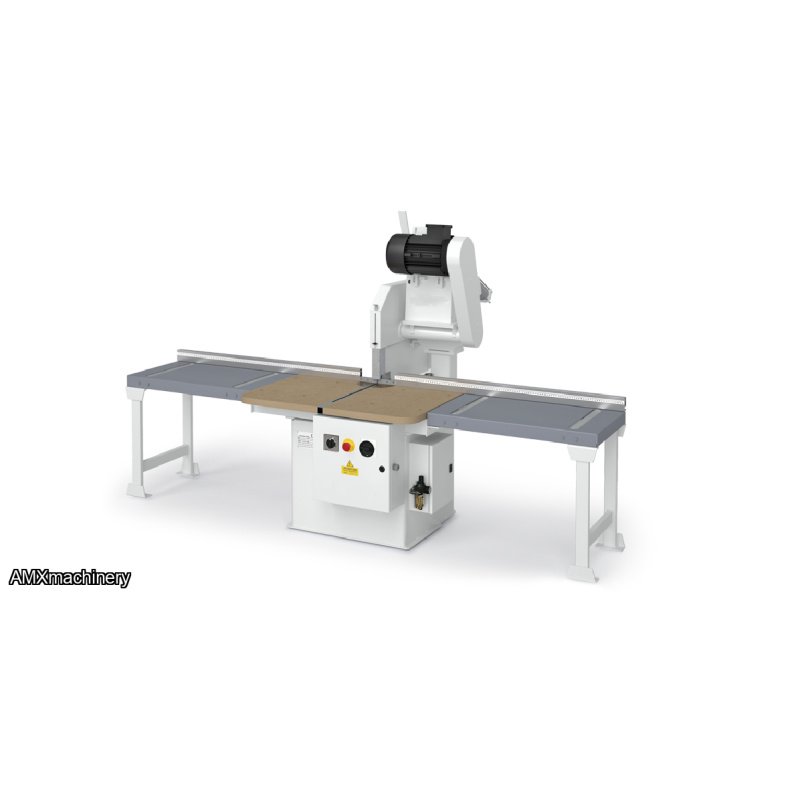

PARTE: 4ST-PS 50/O - SIERRA DE PENDULO
With head rotation is designed to offer versatility and functionality in cutting all different types
of packaging material.

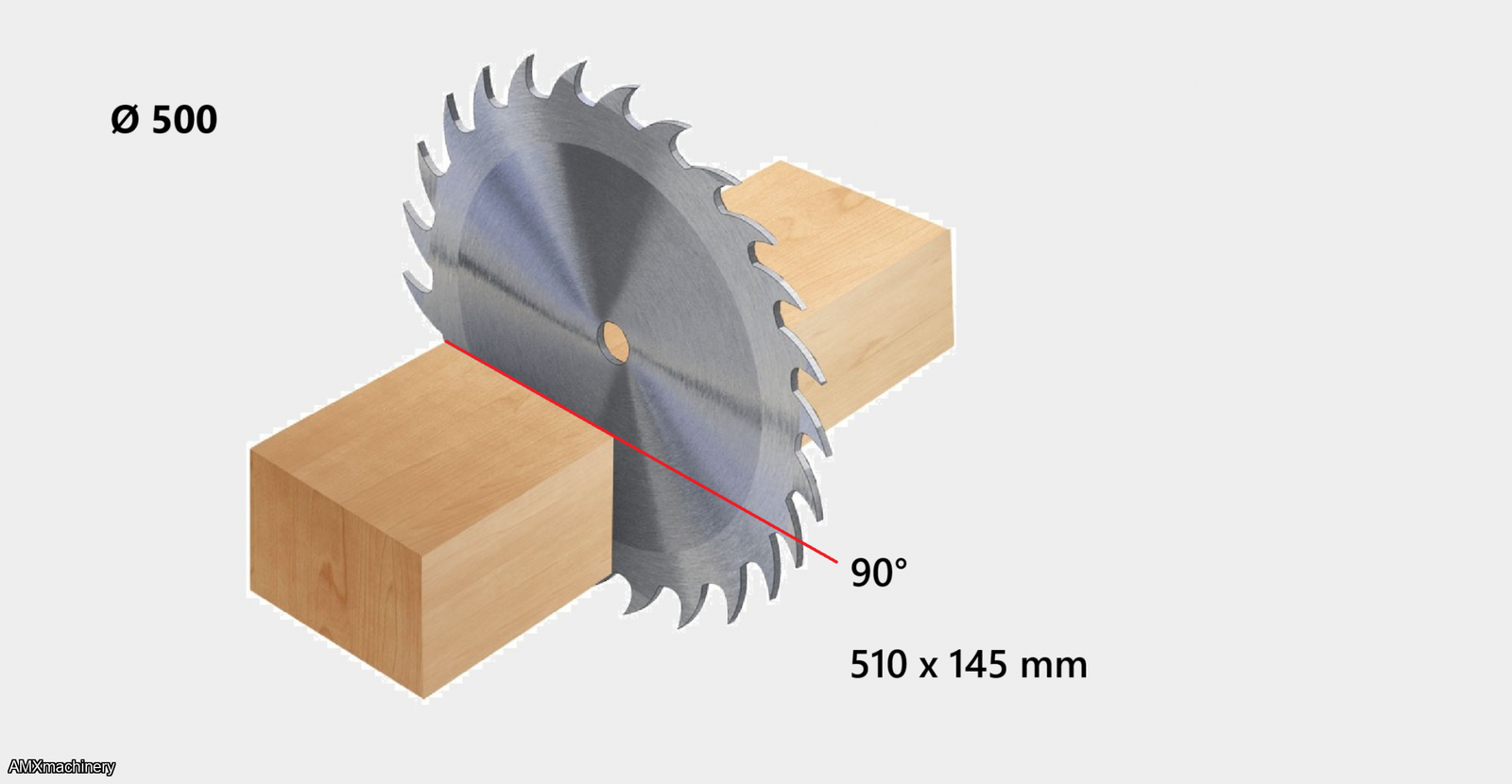

Thanks to a blade diameter 500 mm and a motor power of 5.5 kW allows you to cut
up to 145 mm thick and 510 mm wide.
Technical specifications Cutting unit
Blade diameter
- 500 mm
Blade rotation speed
- 2800 rpm
Blade motor power
- kW 5 (HP 7,5) trifase
Working table height
- 880 mm
Blade feeding
- Manual
Blade rotation
- -45° 0° +60°
Extraction outlets
- 1 x Ø150 mm
Net weight
- 260 kg
