Description

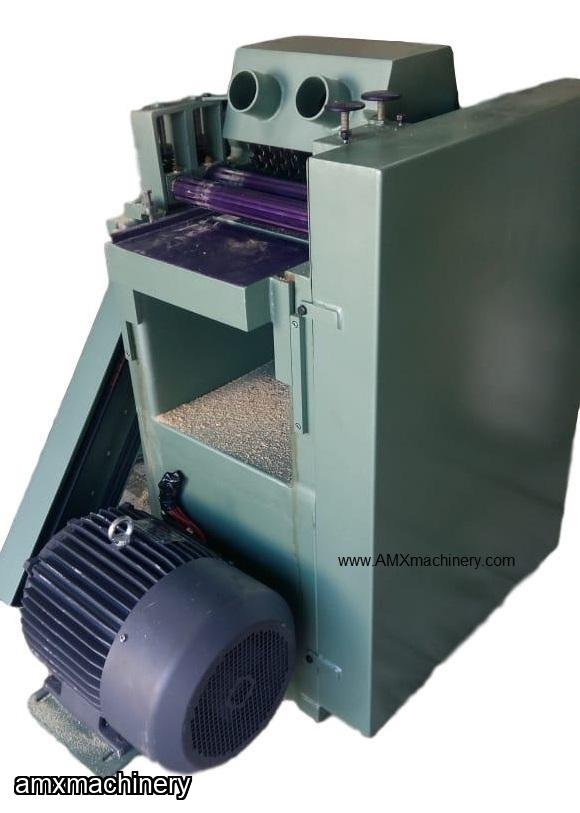

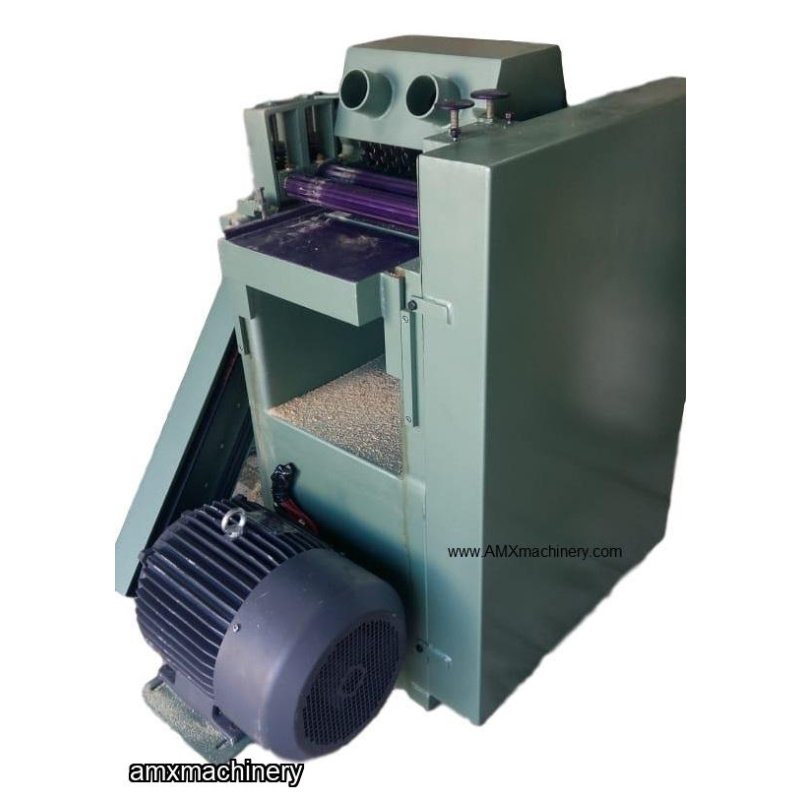

PARTE: 1N-SME-001 - SIERRA MULTIPLE - RAJADOR – MOTOR 15 HP - 14” ANCHO
NUEVA CON GARANTIA
PARA USO INDUSTRIAL PESADO
TAMANO DE LA MESA: 14" ANCHO X 36" LARGO
VELOCIDAD ALIMENTACION: 12 MTS/MIN
MAXIMO CORTE: 2-1/2" GRUESO
DIAMETRO DISCOS: 8" Y 10"
LARGO MINIMO DE CORTE: 8"
MOTOR PRINCIPAL: 15 HP, 220V, 3 FASES
MOTOR ALIMENTACION: 2 HP, 220V, 3 FASES
RODILLOS ALIMENTADORES 2-1/4" DIAMETRO X 14" LARGO
TRANSMISION A BASE DE ENGRANES
MEDIDAS TOTALES DE LA MAQUINA: 40" ANCHO X 47" LARGO X 50" ALTO
PESO 700 KGS
OPCIONALES:
- El juego de sierras se vende por separado
Videos de la maquina funcionando:
Video4: https://vimeo.com/638849579
En el Video la maquina se muestra sin tapas de extraccion de polvo para poder ver bien y apreciar su funcionamiento
La maquina si incluye la cubierta que tapa las sierras y tiene sus salidas redondas para las mangueras de extracción de aserrín
