Descripción

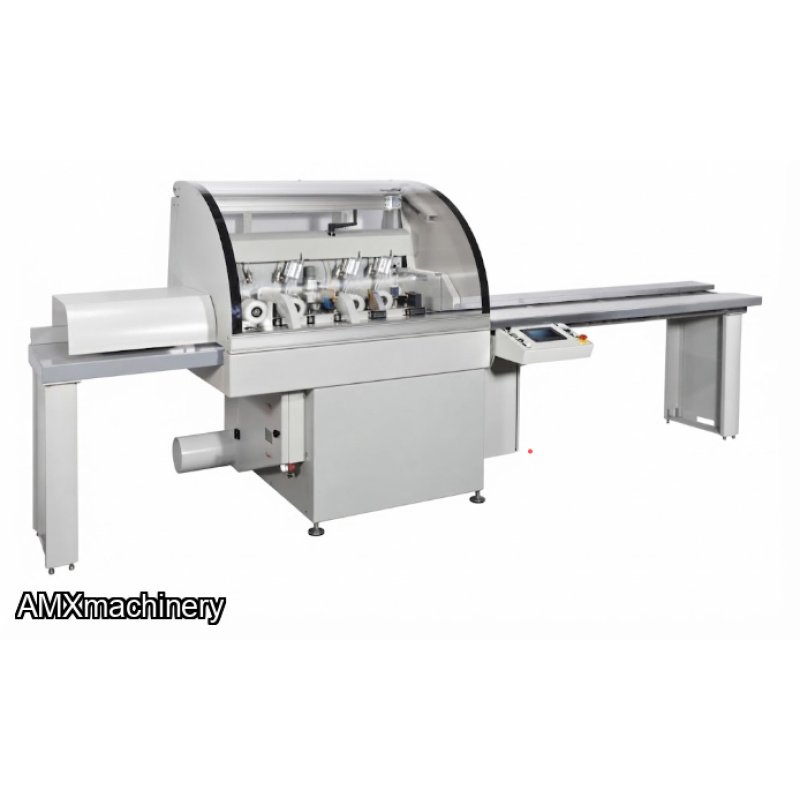

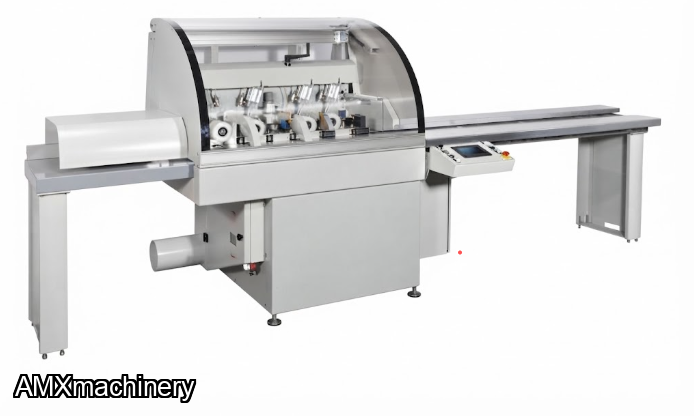

PARTE: 4ST-WS1 - SIERRA OPTIMIZADORA CON ALIMENTACION
DEFECTING THROUGH-FEED CROSSCUT SAW
EXCELENT PERFORMANCE
Is a trough-feed crosscut saw born of our experience and professionalism.
Thanks to its high level of speed (120 mt/min) and precision combined with extreme ease of use
guarantees a significant contribution within the production cycle.
Compactness and reduced dimensions benefit logistics.
Entirely designed and built in Italy, it boasts excellent performance characteristics
and is the ideal machine for defecting or cutting wooden boards of any length to size.
It is mainly integrated in the glulam production cycle, in the cutting and defecting of boards
from moulding machines to feed finger joints.
Technical specifications Cutting unit
Blade diameter
- 500 mm
Blade rotation speed
- 3500 rpm
Blade motor power
- kW 7,5 (HP 10)
Blade driving
- Pneumatic Automatic
Working table height
- 970 mm

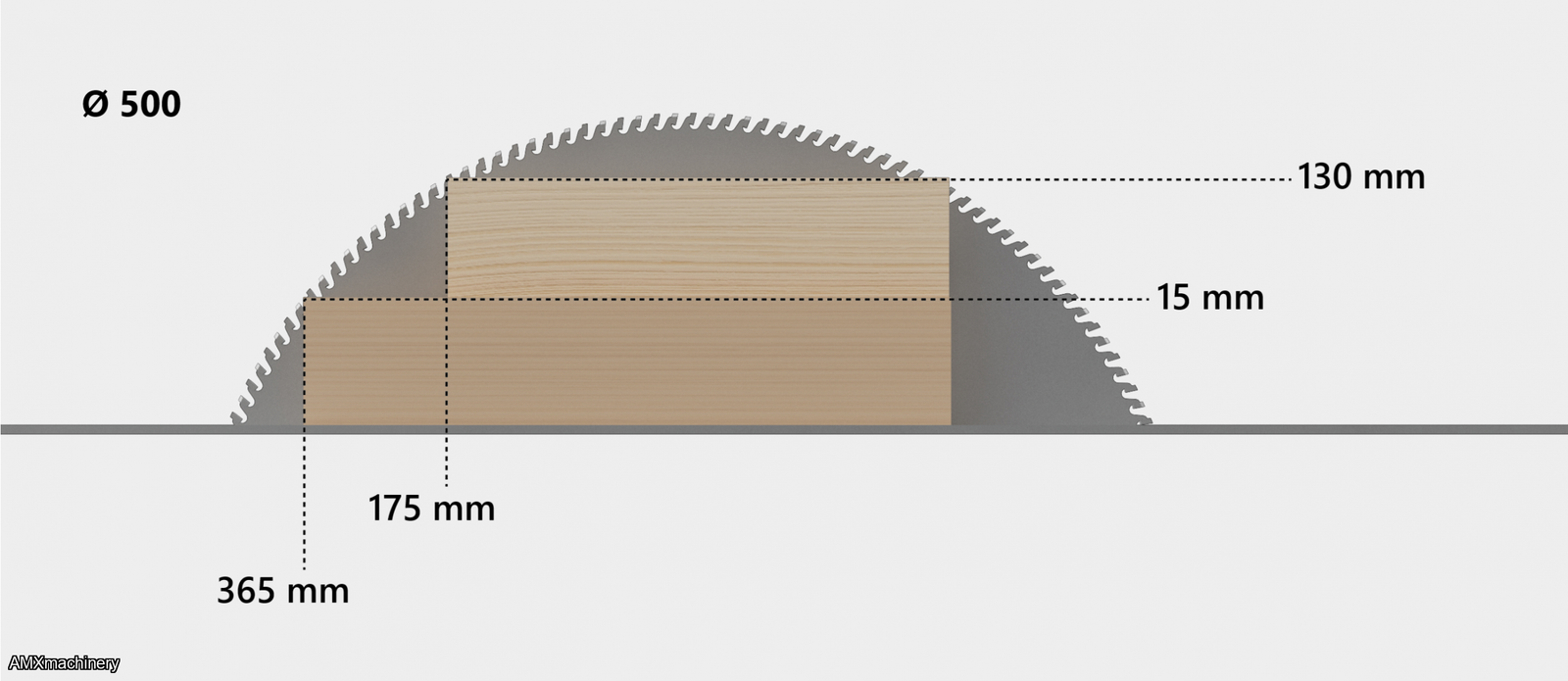

Minimum crosscutting section
- 40 x 15 mm
Workpiece minimum length
- 550 mm
Workpiece feed speed on rollers
- 120 mt/min
Cuts per minute
- upto 100
Workpiece loading
- right side (with pre-loading station)
Max operating pressure
- 6-8 bar
Extraction outlets
- 1 x Ø200 mm
Net weight
- 1250 kg
