Identificador: 3105
Abierta
.PNG)
Descripción

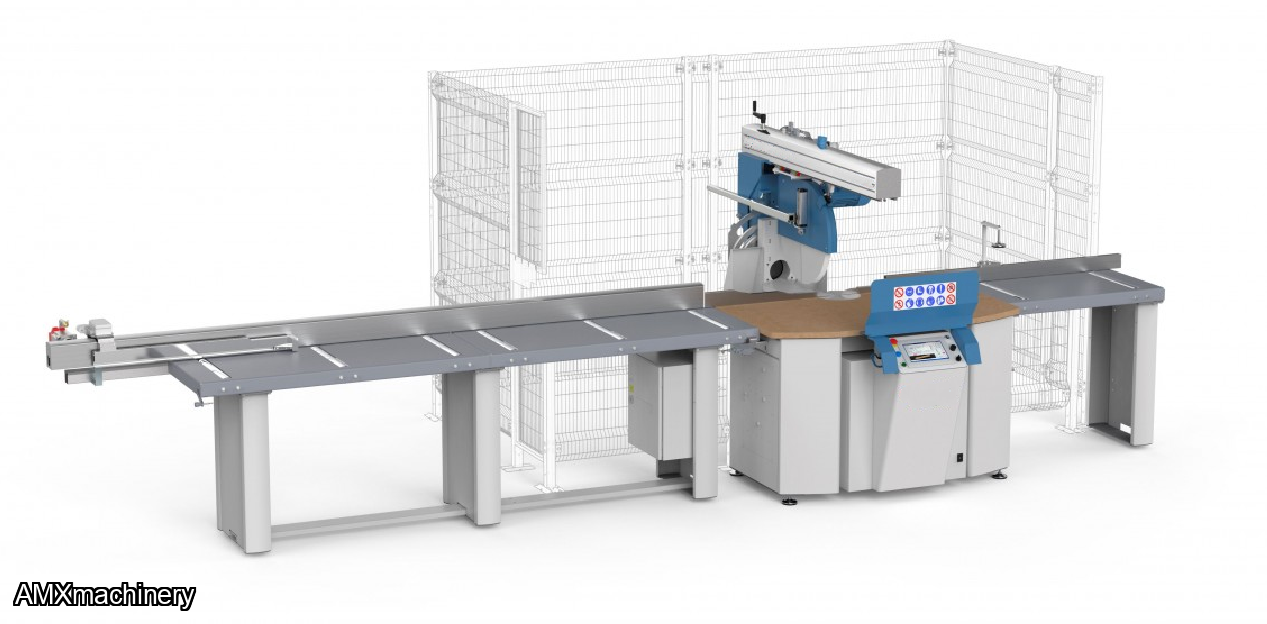

PARTE: 4ST-US 30 MX - SIERRA RADIAL UNIVERSAL
With integrated electronic stop, is designed to meet the needs of cutting large sections
in combination with blade tilting and arm rotation.
All machine movements, tilting, rotation, blade feed and electronic stop are electronically controlled.
Electronic stop positioning via precision rack and pinion, brushless motor and planetary gearbox.
The machine software has a simple and intuitive interface based on a touch screen monitor for programming
and configuration, as well as being able to directly import files in .BTL format.
Machining optimisation is performed by the machine control to reduce scrap and optimise machining processes.
Simple and intuitive process with label printer and Ethernet interface for connection to local networks and company software.
Technical specifications Cutting unit

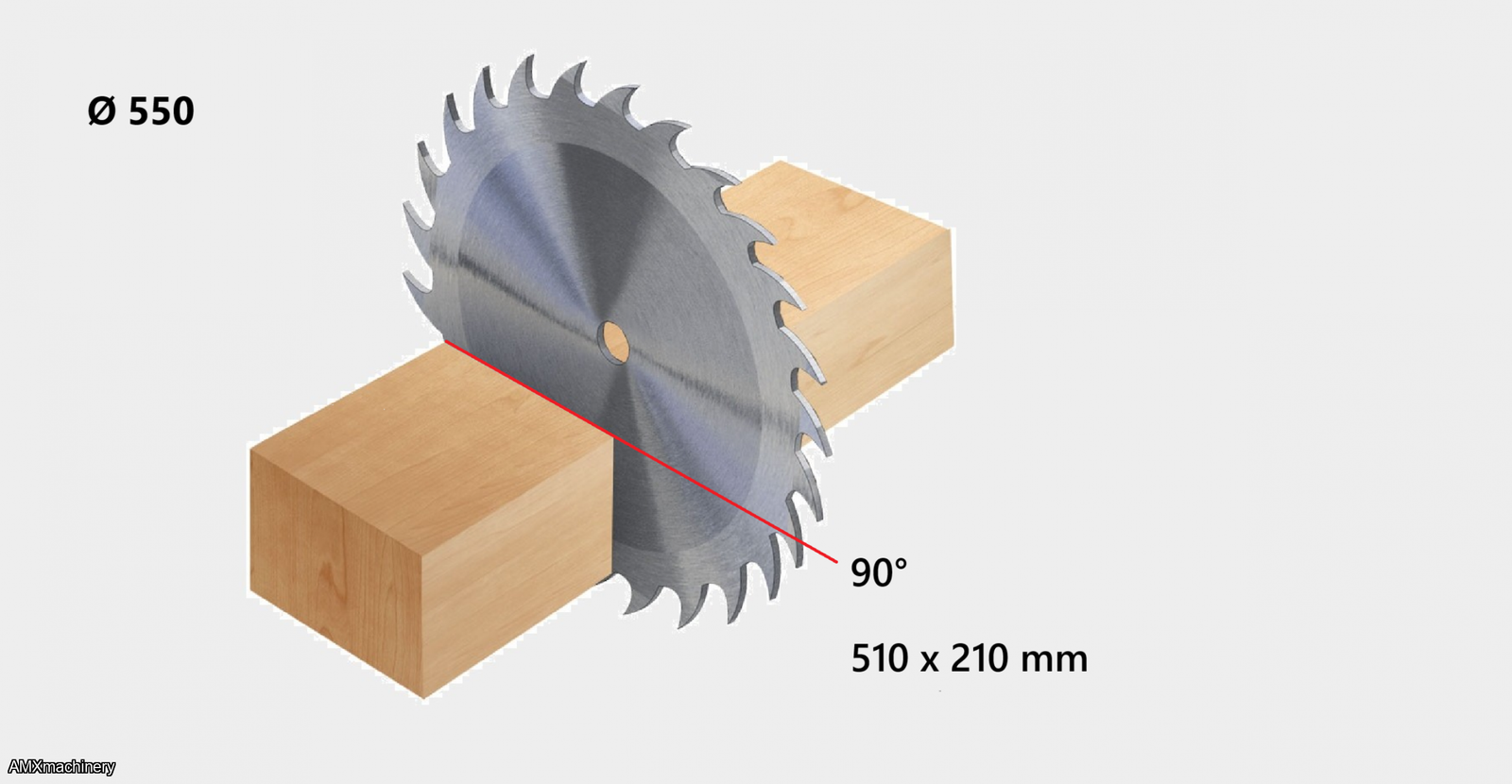

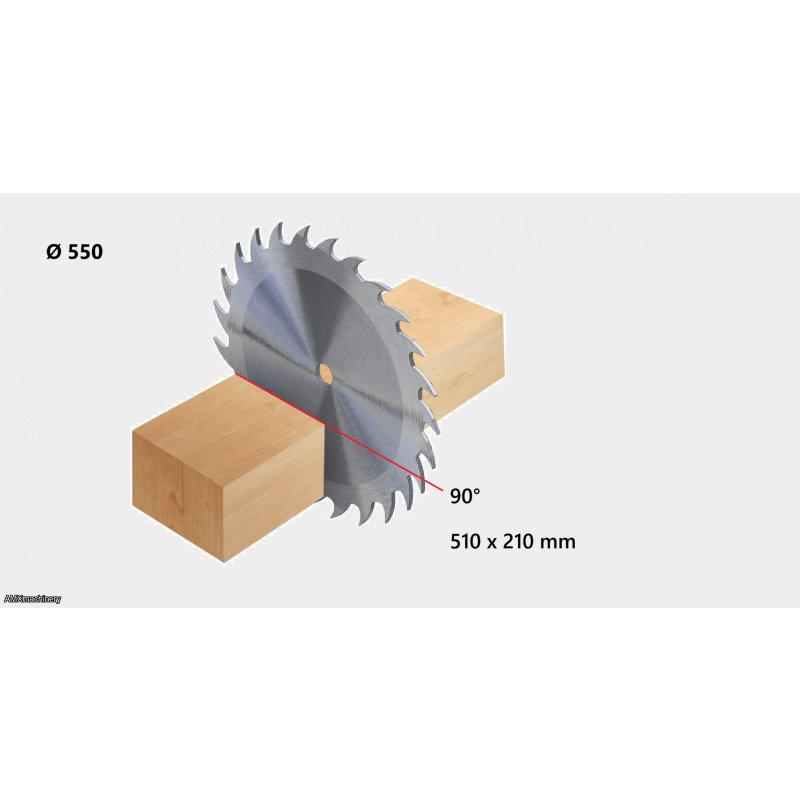

Blade diameter
- 550 mm
Blade rotation speed
- 2800 rpm
Blade motor power
- kW 5,5 (HP 7,5)
Cutting speed
- up to 22 mt/min
Working table height
- 900 mm
Blade feeding
- Semi-automatic (Two-handed starting system)
Blade inclination
- -60° +30°
Blade rotation
- -60° +60°
Positioner capacities
- from 3000 up to 14000 mm
Max operating pressure
- 6-8 bar
Extraction outlets
- 3 x Ø120 mm
Net weight
- 1300 kg
