Descripción

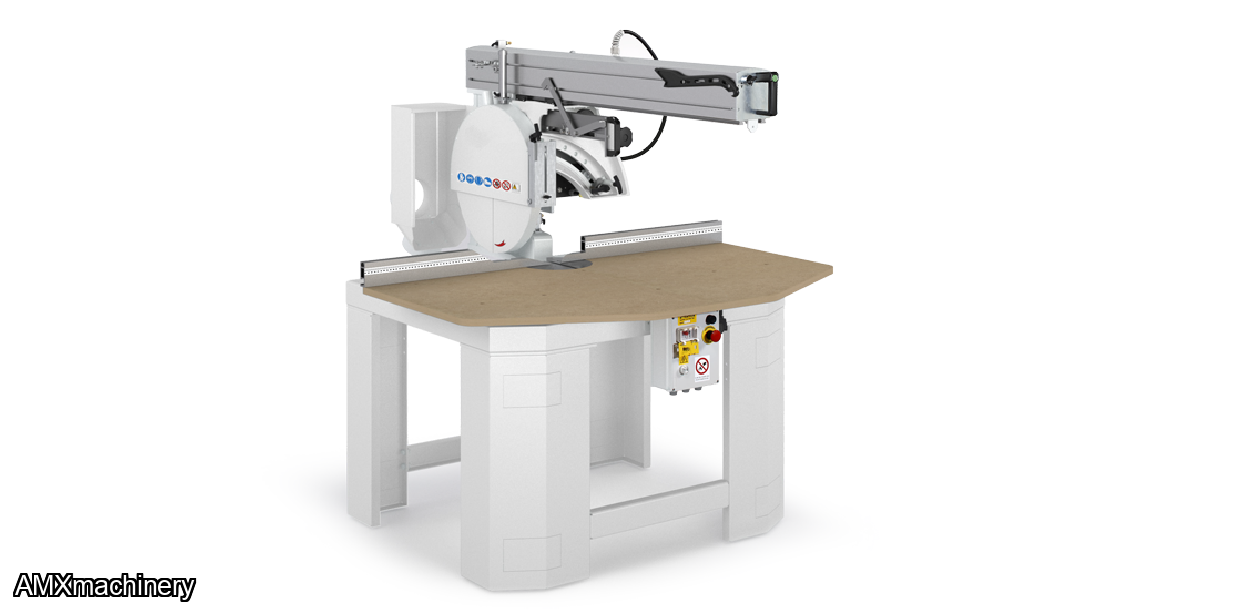

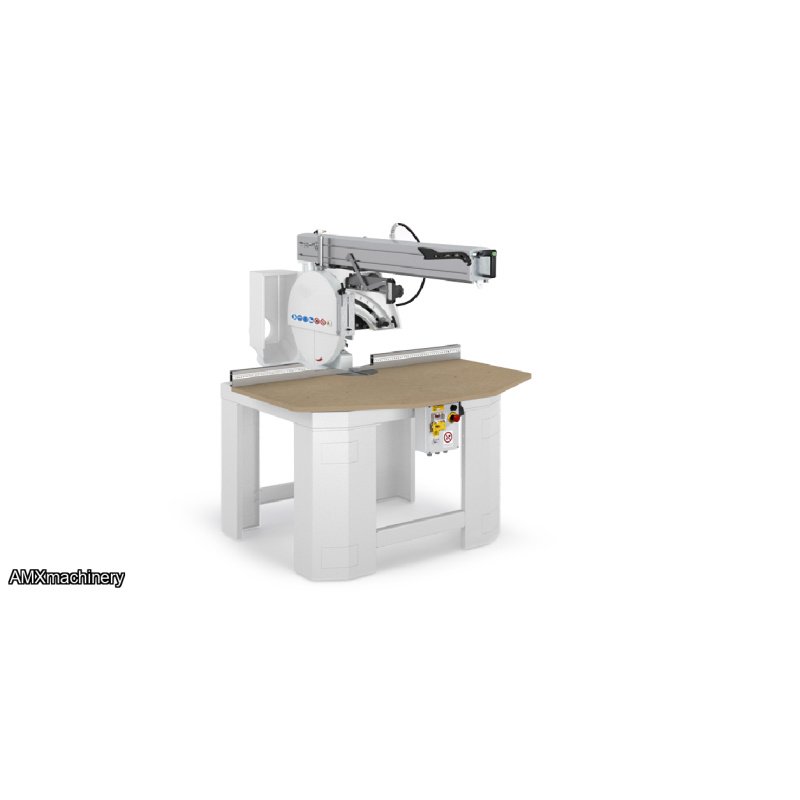

PARTE: 4ST-US 10 - SIERRA RADIAL UNIVERSAL
Was built to meet the needs of cutting large sections in combination with blade tilting and arm rotation.
All machine movements, tilting, rotation and blade feed are manually controlled by the operator.
The machine's fixed zero point ensures that both rotation and tilting are always dimensionally stable
with respect to the length indicated on the measuring system.

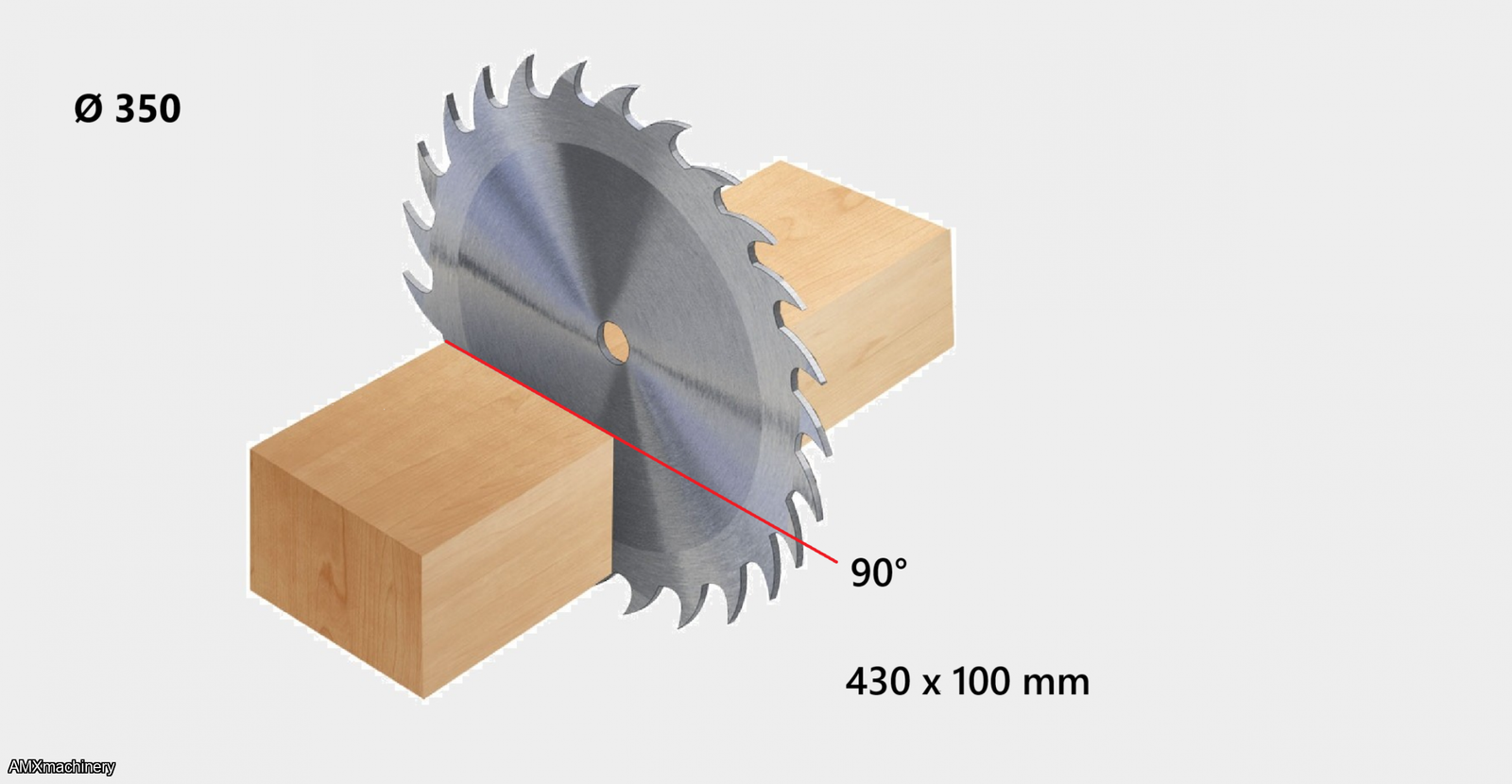

With a blade diameter of 350 mm and a motor power of 3 kW, it can cut up to 100 mm thickness and 430 mm width.
Technical specifications Cutting unit
Blade diameter
- 350 mm
Blade rotation speed
- 2800 rpm
Blade motor power
- kW 3 (HP 4)
Working table height
- 900 mm
Blade feeding
- Manual
Blade inclination
- 0° - 45°
Blade rotation
- -45° +60°
Max operating pressure
- 6-8 bar
Extraction outlets
- 1 x Ø120 mm + 1 x Ø40 mm
Net weight
- 265 kg
