Identificador: 1167
Abierta
Descripción

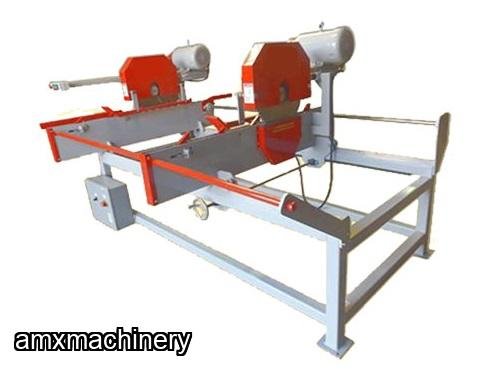

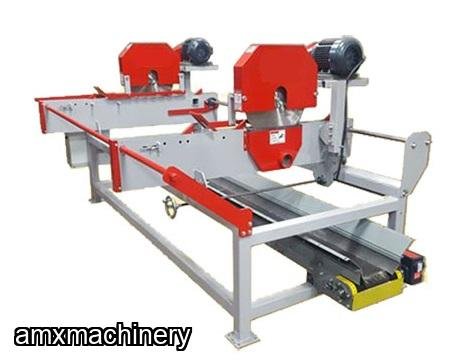

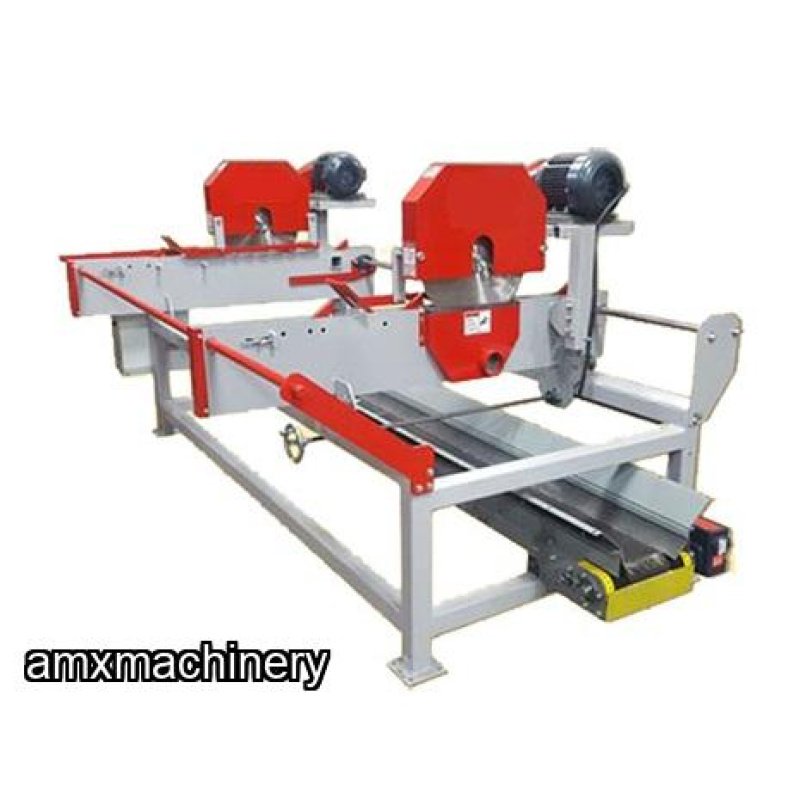

PARTE: 2FA-DET20 – SIERRA TRIMMER – 74" LARGO
NUEVA CON GARANTIA
Adjustable
head system that can process up to 4-1 /2" tall material.
This machine's sturdy construction, quick cycle time, and simplicity will add to any operation.
Â
Standard Features
20" Carbide Blades
Adjustable Blade Position
Up to 4-1/2" Tall Capacity
Â
Machine Specs
Dimensions
Length: 8′
Width: 8′
Height: 4′
Infeed Height: 3′ 4"
Â
Power
Arbor Motors: 5 HP 208/230/480/3/60 TEFC
lnfeed Motor: 1 HP 208/230/480/3/60 TEFC
Completely pre-wired motor starter with start/stop buttons and circuit overload protection
Â
Specifications
20" Carbide Blades
Adjustable Blade Position: Adjust Length of Cut with the Turn of a Handle
1-1/2" Arbors and Bearings
60P Chain
Â
Capacities
Material Length: 18" to 74"
Material Width: 8"
Material Thickness: 4"
Cuts Per Minute: 0-60 Boards
Â
Options
Machine Options
Waste Conveyor: Inclined or Flat
Precision Laser Guides: Laser Indicators
Longer Length Capacity
4" Dust Ports
Custom Hold Downs
Custom Blades for Other Material
Â
System Options
Infeed Chain Conveyor
Outfeed Belt or Chain Conveyor
Take-Away Rollcase
Sorting Table
Â
Power Options
5 HP Motor: 220V or 230V
10 HP Motors: 220V, 230V, or 480V
